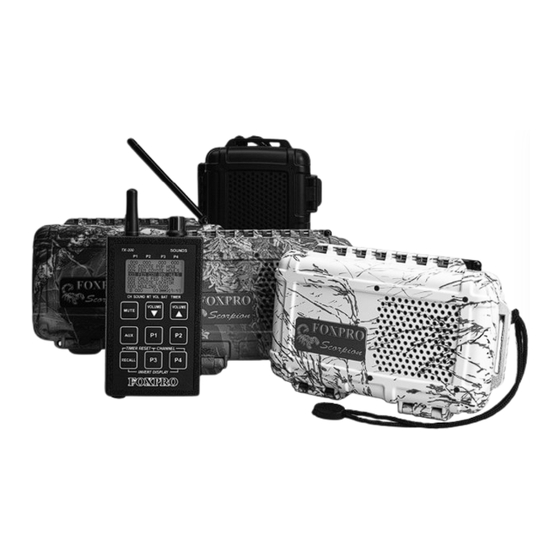

Foxpro Scorpion X1A Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Foxpro Scorpion X1A

  • Page 2: Important Information

    General Inquiry E-mail: sales@gofoxpro.com Stay up to date with the latest sounds by visiting our online sound library. Watch for ® new products and upgrades from FOXPRO . Visit us online: www.gofoxpro.com This manual, the animal sounds stored in your caller, and animal sounds purchased from ®...

  • Page 3: Table Of Contents

    Table of Contents Introduction ....................5 What’s in the Box? ................5 Scorpion X1A: First Glance ..............5 Scorpion X1A: Requirements .............. 6 TX200 Remote: First Glance ..............7 TX200 Remote: Requirements ............7 TX200 Remote: Understanding the Display ........8 Quick Start Guide ..................
  • Page 4 7-10 Presets ....................19 Programming the Scorpion X1A ..............19 Getting New Sounds ................20 Programming the Scorpion X1A (Windows PC’s) ......20 Transferring a New Playlist to the TX200 .......... 21 Product Care & Maintenance..............22 10. Troubleshooting ..................23 11.

  • Page 5: Introduction

    Operators manual Warranty registration 1-2 Scorpion X1A: First Glance The graphic on the next page depicts the Scorpion X1A. Certain aspects of the Scorpion X1A are marked with a number that corresponds to the chart below defining that particular element. Number...

  • Page 6: Scorpion X1A: Requirements

    Scorpion X1A Overview. See corresponding chart on previous page. 1-3 Scorpion X1A: Requirements The Scorpion X1A digital game call is shipped without batteries. It requires 8 ‘AA’ batteries. FOXPRO recommends the use of high capacity rechargeable NiMH batteries for the best performance.

  • Page 7: Tx200 Remote: First Glance

    1-4 TX200 Remote: First Glance The following chart corresponds to the graphic on the right that depicts the TX200 transmitter. Number Description Power switch Battery door Selector knob Display screen 4 Preset Buttons Lanyard loop 1-5 TX200 Remote: Requirements The TX200 transmitter operates on a single 9V battery. It is recommended that you use a high quality alkaline battery.

  • Page 8: Tx200 Remote: Understanding The Display

    Turn on the TX200 transmitter by placing the power switch into the “ON” position. The Scorpion X1A is turned on by the TX200 transmitter. To do this, hold down the AUX button on the TX200 for about 3-4 seconds. Observe the green LED on the Scorpion illuminate, indicating that the power is on.

  • Page 9: Using Presets

    IMPORTANT NOTE If you do not plan to use the Scorpion X1A for a period of time, make sure that you disconnect and remove the battery holder. If batteries are left inside the Scorpion for a period of time, they can leak and cause damage that is not covered by the...

  • Page 10: Using External Speakers

    The maximum voltage applied to this jack must never exceed 15 volts. Typical uses for this jack would be to control the FOXPRO Black Jack or Jack-Attack Decoy, or to start and stop a video recorder. Instructions on connecting various devices to the “AUX” jack are beyond the scope of this manual.

  • Page 11: Connecting Two External Speakers

    4-3 External Speaker Control The Scorpion X1A has the ability to control the external speakers with the TX200 transmitter. With the remote, you are able to turn the speakers off and on. This can give you a huge advantage when you are playing a stereo audio file where you can turn off one of the speakers therefore turning off one of the channels of the audio file.

  • Page 12: Scorpion X1A Configurations

    5. Scorpion X1A Configurations The following image shows the inside of the Scorpion X1A. There are several configuration settings that you can modify by repositioning the jumper associated with each configurable element. 5-1 Mono/Stereo Selector The factory default mono mode is best for most situations. This mode combines both right (A) and left (B) audio channels and delivers the combined sounds to the internal speaker and both external speakers.

  • Page 13: Normal (Repeat)/Jukebox Mode

    There is a second mode called jukebox mode that will enable the Scorpion X1A to play sounds sequentially. Jukebox mode is ideal for those who elect to download and play conventional MP3 music files.

  • Page 14: Internal Speaker Selector

    Configuring Play Modes: Make sure that the Scorpion is turned off. Unlock the two latches on the front and lift up the lid to fully open the Scorpion. Locate the mode selection configuration pins inside the Scorpion. Refer to the image above to set the configuration.

  • Page 15: About The Internal Memory

    It takes only a few moments to change the entire playlist by using the provided USB port, and this procedure is totally safe and foolproof. If you feel that you have a real reason to change the card, please contact FOXPRO customer service for advice. 6. Batteries & Recharging For optimal performance and run times, we recommend high capacity 2300 mAh NiMH (Nickel Metal Hydride) rechargeable cells rather than alkaline types.

  • Page 16: Using Rechargeable Batteries

    The performance of your Scorpion X1A will be much better with high-capacity NiMH batteries. On the front of your Scorpion X1A, locate the green LED. This is your low power indicator. When this light begins to blink during operation, it is alerting you that the batteries need replaced or recharged.

  • Page 17: Tx200 Detailed Information

    Recharge your batteries periodically—even when not in use—to prevent deep discharge. WARNING While charging your Scorpion X1A, the green LED will illuminate. This LED is NOT an indicator for a full charge status. This LED will remain turned-on during the entire charging cycle.

  • Page 18: Aux

    7-2 AUX The AUX button is used to operate an external device that is connected to the auxiliary device jack of the Scorpion X1A. It is also used to turn on the Scorpion X1A from the TX200 transmitter. 7-3 Mute The mute button enables you to mute or un-mute the sound being played.

  • Page 19: Timer

    8. Programming the Scorpion X1A Programming your Scorpion X1A can be done from home with the use of a PC or Mac computer, or by sending the Scorpion X1A to the factory. In order to program the Scorpion X1A from...

  • Page 20: Getting New Sounds

    Scorpion X1A. The website is located at: http://www.gofoxpro.com After you are at the site, access the “FOXPRO Sounds” option from the main menu and click on one of the sound pack options. You can purchase 4 sounds of your choice, 8 sounds of your choice, or 16 sounds of your choice.

  • Page 21: Transferring A New Playlist To The Tx200

    Connecting your Scorpion X1A to the PC You can now connect the Scorpion X1A to your PC. The USB port is located inside the Scorpion (refer to the image in Chapter 5 for identification). You will need to obtain the appropriate USB cable (USB 2.0 printer-style cable) as one is not included with the product.

  • Page 22: Product Care & Maintenance

    9. Product Care & Maintenance In order to help get years of trouble free service with your FOXPRO game call, it is strongly recommended that you read and understand the following points. Many of these are considered proactive or preventative.

  • Page 23: Troubleshooting

    The most common problems are battery related. Before performing anything else, try installing fresh batteries. When your batteries get low, in either the Scorpion X1A or the TX200 remote, unexpected operation can occur. You can experience such things as loss of audio quality, loss of remote control range, and other abnormal results.

  • Page 24: Maximizing Remote Range

    Try to elevate the caller off of the ground by approximately three feet. This can • greatly maximize your overall remote control range. Try to avoid situations where the Scorpion X1A is placed at a lower elevation than the • remote control—the caller should always be higher.

  • Page 25: Fcc & Ic Information

    If you are using the Scorpion X1A remotely from a long distance, be sure to allow • enough time for device reaction before sending multiple signals. For example, if you request a sound change, consider the amount of time from radio transmission from the remote to the Scorpion X1A until that signal is turned into a change in operation that you are able to perceive.

  • Page 26: Warranty Statement

    14 Fox Hollow Drive Lewistown, PA 17044 Online Warranty Registration You can register your Scorpion X1A digital game call online at the following address (locate the Warranty Registration link on the left of the page): http://www.gofoxpro.com/warranty Make sure that you retain a hard copy of your proof of purchase (i.e. store receipt) for any...
