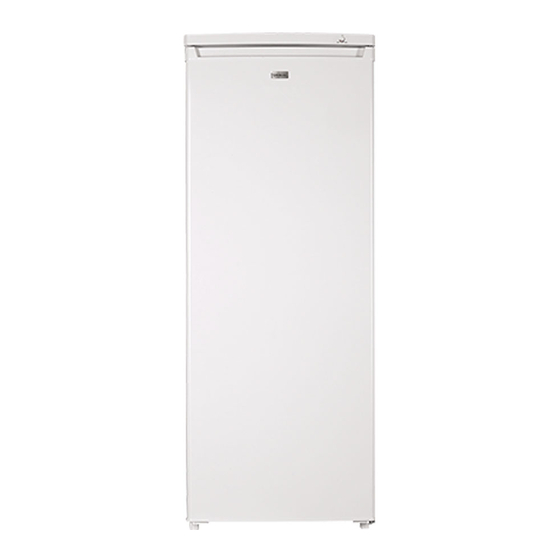

- Page 1 183L Upright Freezer Model Number STR-H183W INSTRUCTION MANUAL IM Version No: V1.1 Issue Date: 18 August 2015 AFTER SALES SUPPORT info@tempo.org N13275 1300 886 649 MODEL: STR-H183W PRODUCT CODE: 51412 11/2015...
-
Page 2: Welcome
Welcome Congratulations on choosing to buy a STIRLING ® product. All products brought to you by STIRLING ® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 3: Table Of Contents
Contents Welcome Warranty Details General Safety Instructions Product Overview Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-H183W PRODUCT CODE: 51412 11/2015... -
Page 4: Warranty Details
183L Upright Freezer Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 5: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 6: Electrical Safety
General Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Installation • Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two person lift or mechanical aid when installing it. -
Page 7: Cleaning And Maintenance
General Safety Instructions (Cont.) Usage conditions and restrictions • Indoor domestic use only: This appliance is intended for indoor domestic use only, which includes use in households, staff kitchen areas in shops, offices, in farm houses and in other working environments, use by clients in hotels, motels, bed and breakfast establishments, other residential type environments and in catering and similar non-retail applications. -
Page 8: Product Overview
Product Overview Scope of delivery Parts list Temperature control Cabinet Freezer drawers (6) Door Door gasket Levelling feet Documentation (not shown) Instruction Manual, Quick Start Guide, Warranty Certificate AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-H183W PRODUCT CODE: 51412 11/2015... -
Page 9: Getting Started
Getting Started Unpacking • Packaging materials: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 10: Electrical Connection
Getting Started (Cont.) Space requirements Fig.1 • Door opening: Place the unit so there is enough space for the door to open (Fig.1). • Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. -
Page 11: Instructions
Instructions Temperature setting The temperature control is located at the top of the freezer Fig.3 frame (Fig.3). The MIN mark indicates the warmest setting, MED is the medium setting suitable for normal use, and MAX is the coldest setting. • The first time you turn the unit on, set the control to the MAX position. -
Page 12: Storing Frozen Food
Instructions (Cont.) Storing frozen food • When buying frozen food, only buy quantities that you can store straight away; use an insulated container for your shopping and when you get home, place the food in the freezer immediately. • When storing pre-packed, commercially frozen food, follow the food manufacturer’s instructions for storing the food in a home freezer. -
Page 13: Power Failure
Instructions (Cont.) Power failure • Most power failures are corrected within a few hours and should not affect the temperature inside your freezer, if you minimise the number of times the door is opened. However, if the power is going to be off for a longer period of time, you need to take proper steps to protect your food. -
Page 14: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with your freezer, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your freezer, call the after sales support line for advice. CAUTION: Before troubleshooting, disconnect the power supply. - Page 15 FAQs and Troubleshooting Guide (Cont.) Problem Solution The external The exterior freezer walls can be warmer than room temperature. freezer This is normal while the compressor works to transfer heat from surface is inside the freezer cabinet. warm. Select a lower temperature setting. Check that the door is closed completely and that the door gasket is clean and seals properly.
-
Page 16: Other Useful Information
Other Useful Information WARNING! Before defrosting or cleaning the appliance, make sure it is switched off and discon- nected from the power supply. Failure to do so can result in electric shock or injury. Defrosting the freezer • For efficient operation and minimum energy consumption, defrost the freezer compartment when the frost on the freezer walls is building up;... -
Page 17: Spare Parts
Contact our after sales support line for advice. Spare parts Our after sales support centre stocks the following spare parts for the STIRLING 183L Upright Freezer. To purchase a part, call the centre on 1300 886 649 or email us at info@tempo.org... -
Page 18: Reversing The Door Swing
Other Useful Information (Cont.) Reversing the door swing This freezer can be opened from either side to suit your individual installation require- ments. If you want to open the door from the other side, follow the instructions below and on the following pages to reverse the door swing. Tools required: Phillips head screwdriver, flat-bladed screwdriver, hexagonal spanner Help required: We recommend you ask another person to help you during assembly. - Page 19 Other Useful Information (Cont.) 5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it (Fig.8). Fig.8 Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet (Fig.9). Reattach the door, making sure it is aligned horizontally and vertically so the seals are closed on all sides before finally tightening the top hinge (Fig.10).
-
Page 20: Technical Specifications
Other Useful Information (Cont.) Technical specifications Rated voltage 220-240VAC Rated frequency 50Hz Rated current 1.1A Climate class Dimensions (mm) 1430 (H) x 550 (W) x 580 (D) Net weight 45kg Capacity 183L gross, 167L net Refrigerant R600a, 70g Insulation blowing agent Cyclopentane Compliance This product complies with the following standards:... - Page 21 This page has been left blank intentionally. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-H183W PRODUCT CODE: 51412 11/2015...
- Page 22 This page has been left blank intentionally. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-H183W PRODUCT CODE: 51412 11/2015...
-
Page 23: Repair And Refurbished Goods Or Parts Notice
183L Upright Freezer Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of... - Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
