Summary of Contents for Stirling SU780XLE

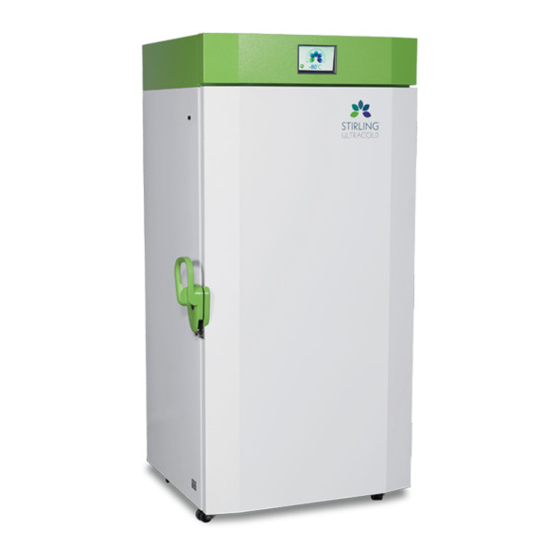

- Page 1 SU 780 XLE -86˚C Ultra-Low Storage Freezer Operating Manual 11.18.19 6000 Poston Rd Athens, Ohio 45701, USA 740.274.7900 / 855.274.7900 740.274.7901 www.stirlingultracold.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 Select RTD > use +/- to adjust > Save Handle Operation The Stirling Ultracold handle is designed for one-handed operation. To open the freezer, rotate handle towards the user approximately 90°. To engage the Power-Release, apply firm downward pressure on the handle while in its open position. The Power-Release assists when the freezer door is adhered to the gasket after long periods of non-use as well as when air pressure is not yet equalized.
- Page 4 THIS PAGE INTENTIONALLY LEFT BLANK 4 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
-
Page 5: Table Of Contents
De-ice Gaskets and Breaker ..33 7.1.1 Free-Piston Stirling Engine ..8 Inspect Vacuum Relief Port..33 7.1.2 Cabinet Design Features. -
Page 6: Introduction
1 medical device (Product Code JRM). The storage of blood or blood products intended for medical purposes is prohibited. The SU780XLE freezer is classified for use as stationary equipment in a Pollution Degree 2 and Overvoltage Category II environment. The unit is designed to operate under the following environmental conditions: •... - Page 7 Deep temperatures are dangerous, use proper precautions when operating ultra- low temperature freezers. This ultra-low temperature freezer is intended for storage of frozen sample product or vials at deep temperatures. Stirling Ultracold, a Division of Global Cooling, Inc. cannot be held responsible for damages or loss of stored product attributed to unintended use.
-
Page 8: Features Of The Su780Xle
The SU780XLE Ultra-Low Temperature Freezer uses the Stirling Ultracold Model M600 free-piston Stirling engine to provide high efficiency, deep-temperature cooling. No HCFC or CFC refrigerants are used in the M600 and SU780XLE. The M600 Stirling engine uses approximately 10 grams of helium gas as a working fluid. Approximately 90 grams of R-170 (Ethane) is used in the thermosiphon which removes heat from the freezer. -
Page 9: Graphical User Interface (Gui)
Display temperature graph and event log • Display diagnostic and service information • Display freezer identification information The following SU780XLE parameters are accessed and modified through the GUI touch screen ( for complete instructions see Section 5) . Accessible Values Modifiable Values Current freezer temperature... -
Page 10: Pictorial Tour
2.6 – Pictorial Tour 1. Mechanical compartment containing M600 Stirling engine 2. Temperature recorder location (optional) — Factory or field installed 3. LCD Display and Graphical User Interface (GUI) 4. Magnetic latching inner doors 5. Vacuum relief port (interior, not shown) 6. - Page 11 The unloaded freezer is TOP HEAVY. Use caution in moving and installation. Do not pitch the freezer more than 12 degrees from horizontal. Doing so may cause it to tip over. Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 11 of 40...
-
Page 12: Safety Precautions
3. Safety Precautions Potential hazards associated with use of the SU780XLE freezer may impact the safety of persons in the workplace in which the freezer is installed. This includes persons who operate the freezer, and other personnel in its vicinity. The freezer itself may also be damaged and/or its warranty voided by improper operation or usage. - Page 13 • In addition to the ultra-low temperature hazards above, there are also physical hazards to consider: — Be cautious when closing the door to avoid a pinching hazard. — Be careful when loading the cabinet with heavy items. Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 13 of 40...
-
Page 14: Unpacking And Installation
4. Unpacking and Installation NOTE: Prior to installing the SU780XLE, inspect the unpacked unit and any included items for shipping damage. Compare all contents to the packing list for completeness. 4.1 – Freezer Site Qualification 1. Note the shipping packaging dimensions of 2184 x 1092 x 1118 mm (86"... -
Page 15: Unpacking And Unloading Procedure
11. Move the freezer slowly onto the ramp, with one person guiding each side for balance. Have a third person assist in slowly guiding the freezer down the ramp to the floor to avoid damage to equipment, facilities, or injury to personnel. Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 15 of 40... -
Page 16: Setup
A vacuum relief port is provided to accelerate this process. 9. Be mindful of any electrical shock hazards associated with making electrical connections to the freezer, especially the external alarm connection. 16 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19... -
Page 17: Operation
5.3 – Graphical User Interface (GUI) Values for the following SU780XLE parameters are viewed and modified through the GUI touch screen. 5.3.1 Modifiable Values The GUI is pre-programmed with default values for most parameters. -
Page 18: Pin
Service screen information is used for service by authorized personnel only. Service PIN required. • RTD Calib. – display RTD readings and calibration offsets. Calibration is used to compensate for discrepancies between Display RTD and user-supplied temperature measurement. 18 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19... -
Page 19: Basic Gui Controls
Requires Authorized Service & PIN Calibrate RTDs Tap Home > Set-up > About > Service > Enter Service PIN > RTD Calib. > Select RTD > use +/- to adjust > Save Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 19 of 40... -
Page 20: Gui Instructions
The Power Up screen will appear for 20 seconds when the freezer is initially turned on. 2. Home The Home Screen displays the current temperature of the freezer. • Tap the display to access the Data screen 20 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19... - Page 21 * Accessing GUI menus within Set-up requires a PIN (if PIN is enabled) 4. PIN Entry Screen Home > Data >Set-up (if PIN enabled) Tap 1 2 3 4 (default PIN) • Tap Enter • Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 21 of 40...
- Page 22 Over and Under Temperature thresholds can be no less than 4°C and no more than 20°C from the setpoint. • Over and Under Temperature thresholds will automatically be kept within this range. 22 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
- Page 23 - Ext. Delay [External Delay] delay (from 0 to 120 mins) between audible alarm and remote alarm - Door Delay [Door Delay] period of time (from 1 to 10 mins) that the door can be open before alarm sounds Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com...
- Page 24 - 100% turns the heater on for maximum duty cycle - 60% is recommended for most laboratory environments - 0 % provides no-defrost heating (Note: Warning will display on Data screen.) 24 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
- Page 25 Tap the ^ or V to scroll * Approximate because the length of the stored parameter changes depending on the event. Once the registers are full, the oldest data is deleted to make place for the newest data. Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com...
- Page 26 In the event of an Alarm event, a warning will be seen on each screen informing the user of the reason for the alarm. Tap the warning to silence the alarm. 26 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
- Page 27 - Alarm sounds and the alarm test button becomes orange (see above) Tap the Alarm Test button again to silence the alarm • - Alarm is silenced and button returns to its original color Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 27 of 40...
- Page 28 This screen is accessible only through the use of the service-PIN number Home > Data > About > Service > Enter Service PIN > Enter Tap the RTD Calib. button to calibrate the RTD(s) • 28 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
- Page 29 Home > Data > About > Service > Enter Service PIN > Enter> RTD Calib. Tap to select the desired RTD, then use the + and – buttons to adjust the offset, then tap Save. • Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com...
-
Page 30: Managing Freezer Contents
5.5 – Cleaning Cleaning the Freezer Surfaces • Clean the exterior surfaces of the SU780XLE cabinet as needed by using a soft cloth and mild detergent. Do not use solvent (such as bleach) or harsh abrasive cleansers or pads. •... -
Page 31: Safety Precautions
DANGER Will lead to severe injuries or death WARNING May lead to severe injuries or death CAUTION May lead to light to moderate injuries NOTICE May lead to material damage Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 www.stirlingultracold.com 31 of 40... -
Page 32: Transporting, Moving And Storage
Disinfect with suitable sterilizing agent if the freezer has been used for biohazards. Do not use bleach. • Close and secure the door to the freezer. • Move the freezer. See Section 4 for precautions associated with this task. 32 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19... -
Page 33: Preventative Maintenance & Service
6-7. Transporting & Maintenance 7. Preventative Maintenance & Service The SU780XLE freezer is designed for years of trouble-free operation. To prevent costly and inconvenient repairs and maintain your freezer to an optimum level of performance, follow the recommended preventative maintenance schedule and contact an authorized service provider as needed. -
Page 34: Troubleshooting
Operate your freezer at full capacity with real or simulated product to increase the thermal mass, displace air and maintain optimal stability • Minimize the frequency and duration of door openings 34 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19... -
Page 35: Specifications
Maximum Power (Current) 1200 watts (10 amps @120V, 5 amps @240V), nominal Electric Supply Rating 15 amp or greater grounded circuit Cooling Engine Helium charged free-piston Stirling engine Heat Transport System Gravity driven thermosiphon Refrigerant, Thermosiphon R-170 (Ethane) CFC/HCFC-Free, 90 grams Risk of fire or explosion. - Page 36 SIDE FRONT 36 of 40 Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19...
-
Page 37: Performance Data
Front Cover and Top Cover Interior Steel White Powder coated Stainless Steel Shelves (adjustable) Handle Zinc Alloy Green Powder coated Hinges Steel White Powder coated LCD Bezel Polycarbonate Gray Natural Operating Manual: SU780XLE SU780XLE-LIT-OM-I | 11.18.19 37 of 40 www.stirlingultracold.com... -
Page 38: Warranty
Limited Warranty, USA The warranty period starts TWO WEEKS after the original date of shipment from • Global Cooling, Inc. The Stirling Ultracold freezer is warranted for a period of TWO YEARS for materials • and labor. • The Stirling Ultracold free-piston Stirling engine and thermosiphon is warranted for a full SEVEN YEARS, parts only, from original date of shipment from Global Cooling, Inc. - Page 39 Global Cooling further warrants all products to be free from defects in materials under normal use and service for a period of TWO YEARS. • The Stirling Ultracold free-piston Stirling engine and thermosiphon is warranted for a full SEVEN YEARS, parts only. •...
- Page 40 6000 Poston Road Athens, Ohio 45701, USA 740.274.7900 / 855.274.7900 740.274.7901 www.stirlingultracold.com ©2019 Stirling Ultracold, Global Cooling, Inc . All Rights Reserved. Global Cooling technology is manufactured under U.S. and International patents. Stirling Ultracold is a trademark of Global Cooling, Inc.
