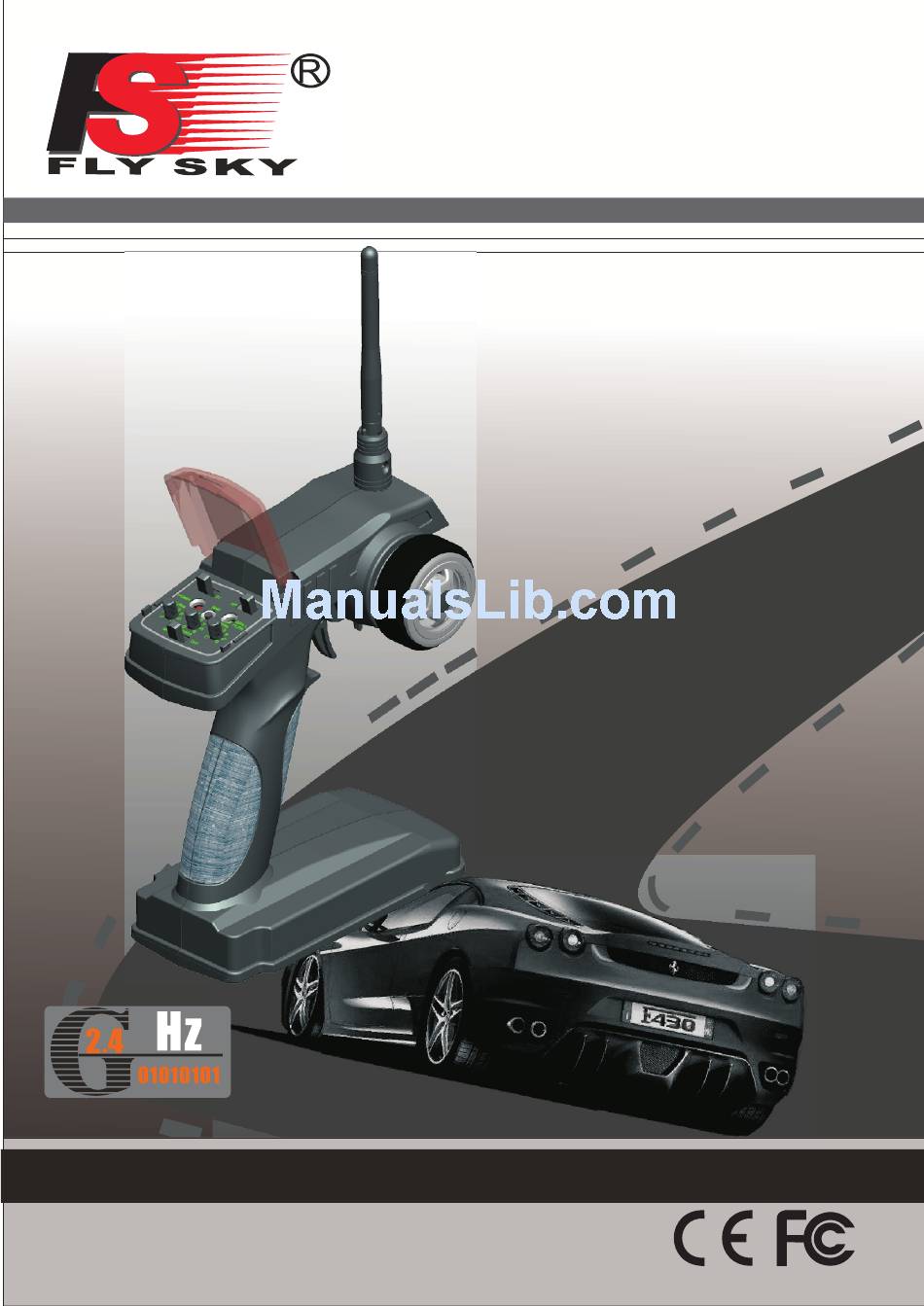

- Page 1 FS-GT2 INSTRUCTION MANUAL 用户手册 Digital propotional radio control system Http://www.flysky-cn.com Copy right 2008@flysky co.,ltd...
-
Page 2: Table Of Contents
MODELS:FS-GT2 Digital propotional radio control system Menu 1.Introduction........2 ....2 2.Services......3.The special symbols......3 4.Safty guides........3 5.Battery charging notes......4 6.Transmitter parameters......5 7.Receiver parameters......5 8.Receiver connectivity......6 9.2.4G Operation notes......8 10.Each part of the transmitter....10 11.Transmitter function notes.....11 ......13 12.Simulate ........14 Exploded Drwing.. -
Page 3: Introduction
MODELS:FS-GT2 Digital propotional radio control system 1.Introduction 非常感谢您选择使用 2 .4G数码比率遥控产品，如果你是第一次使用该类 型产品，请您在使用之前先仔细阅读此说明书，并严格按说明要求进行操作。在操 作过程中您如果遇到问题同样可以查看说明书。说明书在使用完后请您妥善保管好， 以备后用。再次感谢您使用 的产品，并希望它能给您带来快乐。 2.Services HTTP:WWW.FLYSKY-CN.COM 如果您在使用过程中发现有问题,请您第一时间先查看数控明书.如果问题还不能 解决,您可以跟我们的经销商联系解决.您也可以登陆我们的服务中心网站: HTTP:WWW.FLYSKY-CN.COM Http://www.flysky-cn.com... -
Page 4: The Special Symbols
MODELS:FS-GT2 Digital propotional radio control system 3.The special symbols Please pay attention to the following symbols when it appears on the manual,and read carefully. If the operator does not operate by following the instructions,the operator Danger: may lead to serious injuries, even mortal danger. -
Page 5: Battery Charging Notes
MODELS:FS-GT2 Digital propotional radio control system 5.Battery charging notes If your transmitter, receiver using a nickel-cadmium, nickel-metal hydride rechargeable battery, you have to well-check before you use. If lack of electricity, it could happen those phenomenon like inadequate control or out of control, resulting accident. So please charge immediately when the battery lacks of electricity. -
Page 6: Transmitter Parameters
MODELS:FS-GT2 Digital propotional radio control system 6.Transmitter parameters Specifications: A.channels:2channels; B.model type:car/boat; C.RF power:less than 20dbm D.modulation:GFSK; MODEL:FS-GT2 E.Code type:digital; F.sensitivity:1024; G.low voltage warning:yes(less than 9V); H.DSC port:yes(3.5mm); I.Charger port:yes; J.power:12vdc(1.5aa*8); K.weight:328g; L.ANT length:26mm; M.size:159*99*315mm; N.color:black; o.certificate:CE FCC; 1.通道数：2个通道； 2.适合机种：车，船；... -
Page 7: Receiver Connectivity
MODELS:FS-GT2 Digital propotional radio control system 8.Receiver connectivity 8.01 INSTALLATION WHEN A MOTOR CONTROLLER IS USED 带马达模型的安装连接 SPC调速器 开关 SWITCH Servo伺 服器 MOTOR马达 BATTERY 电池 Receiver接收机 Remark:Place the antenna of the receiver vertically with the plane! And don't let it close to the metal thing for assuring its sensitivity.(See pic1) 注：在安装接收机时请将接收机天线与水平面垂直放置！且天线尽可能不要靠近金... - Page 8 MODELS:FS-GT2 Digital propotional radio control system 8.02 INSTALLATION FOR GAS POWERED MODELS 发动机模型的安装 SWITCH (1.5AA*4) Battery 开关 电池 THROTTLE 油门 Receiver 接收机 STEERING SYSTEM 方向系统 Servo 伺服器 Http://www.flysky-cn.com...
-
Page 9: Operation Notes
MODELS:FS-GT2 Digital propotional radio control system 9.2.4G Operation notes 9.01 Matching (code) Our products are well matched in the factory, you do not need to match by yourself. But if your are going to match the receiver with other transmitter, or you need to change a new receiver or transmitter, please follow the following steps: Install the battery to 2.4G transmitter and shut it down. - Page 10 MODELS:FS-GT2 Digital propotional radio control system 9.02 power on: .Connect every part. 1.将各部件连接好； .Switch on the power supply 2.打开发射机电源开关； of the transmitter. .Connect the power supply of the receiuer. 3.连通接收机电源； .Receive LED light solid. 4.接收机LED恒亮； .Finish and use. 5.使用. Power on...
-
Page 11: Each Part Of The Transmitter
MODELS:FS-GT2 Digital propotional radio control system 10.Each part of the transmitter FRONT 2.4G ANT CONTROL BOX STEERING WHEEL THROTTLE TRIGGER BAT BOX BACK SIDE POWER ST REV ST TRIM POWER POWER TH REV CHECK CHARGER DSC FOR SIMULATE BIND TH TRIM... -
Page 12: Transmitter Function Notes
MODELS:FS-GT2 Digital propotional radio control system 11.Transmitter function notes 11.01方向舵控制 功能说明： 此功能是进行方向控制，当方向舵往右旋转时车子前轮会跟着往右（如图），当方向往舵左旋转时车子前轮会 跟着往左（如图）. 操作方法： 开机后,通过方向舵进行方向控制,方向舵动作大小依据实际情况进行比率调整.方向舵大小动作量可通过D/R 进行大小舵量的调整。 Function Introduction: This function is to control the direction, when the steering turn to right then the front wheel will turn to right (as picture), when the steering turn to left then the front wheel will turn to left (as picture). - Page 13 MODELS:FS-GT2 Digital propotional radio control system 11.02油门控制 功能说明： 此功能是进行油门(速度)控制，当油门扣机往后打时车子会向前加速（如图），当油门扣机往前推时车子会 进行刹车或加速后退(依据不同的调速器)（如图）. 操作方法： 开机后,通过油门扣机进行前后运行的控制. Function Introduction: This function is to control the throttle speed, when pull the throtte trigger back,car will accelerate forward (see the picture), when push throttle trigger, the car will put on the brakes or double ring astern(according to the different ESC) (see the picture).
-
Page 14: Simulate
MODELS:FS-GT2 Digital propotional radio control system 12 .SIM UL A TE 功能说明： 此 功能用 于 电脑模 拟 ，从而 可 通过电 脑 进行练 习 ，及进 行 电脑 模 拟比赛 。 操作方法： 1.将本 厂 提供的 电 脑模拟 连接线( FS- S M 1 0 0 )一 端插入 发射机 的DSC接 口 ，另一 端 插入电 脑 的U S B接口，... -
Page 15: Exploded Drwing
MODELS:FS-GT2 Digital propotional radio control system 13.EXPLODED DRWING Http://www.flysky-cn.com... -
Page 16: Packaging With Content List
MODELS:FS-GT2 Digital propotional radio control system 14.Packaging with content list Model Remarks channel 2.4G （ transmitter FS-GT2 通2.4G发射 3channel 2.4G receiver(FS-Gr3A ) 3通2.4G接收 FS-GT2 INSTRUCTION MANUAL 用户手册 MANUAL 说明书 Digital propotional radio control sytem Http://www.flysky-cn.com Copy right 2008@flysky co.,ltd Optional Charger 可选的... - Page 17 Digital propotional radio control system Http://www.flysky-cn.com Copy right 2008@flysky co.,ltd...
