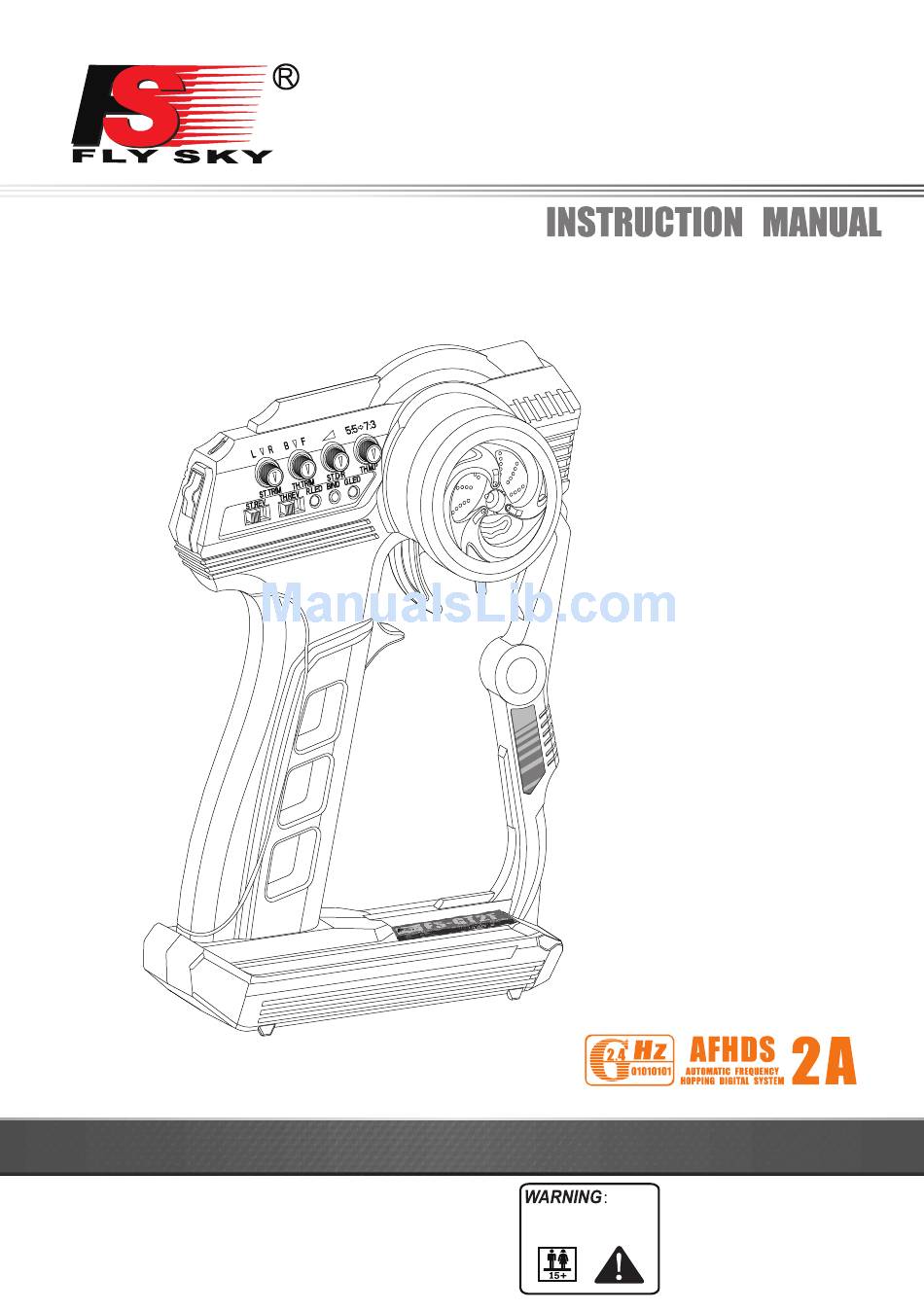

- Page 1 FS-GT2F Digital propotional radio control system 用户手册 http://www.flysky-cn.com Copyright ©2013-2017 This product is suitable for FlyskyRC model technology co., ltd 15 years old and above 本产品不适合15岁以下儿童使用...
-
Page 2: Table Of Contents
Table of contents 1. Introduction 简介 ................................. 2 2. Services 服务 .................................. 2 3.special symbols 特殊标志 ............................3 4. Safety guide 安全指导 ..............................3 5. 2.4GHz System /characteristic2.4G系统/系统特征 ..................... 5 5.01. AFHDS自 动跳频数字系统..........................5 5.02. System Characteristic系统特征........................5 5.03. -
Page 3: Introduction 简介
Digital propotional radio control system FS-GT2F Introduction 简介 Thank you for choosing 2.4G ratio remote control digital products,if you are the first time to use this type of products,please read this statement carefully and strictly in accordance with the requirements of operation.You could refer to the manual if you meet any problems during the operation.Please well keep the manual after use because you might have to use it again... -
Page 4: Special Symbols 特殊标志
Special symbols 特殊标志 Please pay attention to the following symbols when it appears on the manual and read carefully. 此说明书中有如下符号的地方请您特别注意，并仔细阅读。 If the operator does not operate by following the instructions,the operator may lead to serious injuries,even mortal danger. 如果操作者不按正常操作方法操作，有可能导致操作者严重受伤，甚至致命危险。 If the operator does not operate by following the instructions, the operator may lead to serious injuries,even mortal danger. - Page 5 Digital propotional radio control system FS-GT2F Be sure to set the Fail Safe function. 一定要启用防失控功能. Do not operate outdoors on rainy days, run through puddles of water or use when visibility is limited. Should any type of moisture (water or snow) enter any component of the system, erratic operation and loss of control may occur.
-
Page 6: 4Ghz System /Characteristic2.4G系统/系统特征
2.4GHz System/Characteristic 2.4G系统/系统特征 5.01. AFHDS 自动跳频数字系统 AFHDS（automatic frequency hopping digital system),is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home.The system is specially developed for all the Radio control models,thar offers super active and passive antijamming capabilities,ver y low power consumption and high receiver sensitivity.With extreme rigorous testiong by engineers and studying the markets for years,FLYSKY AFHDS is now considered to be the one of the best systems available in the market. -
Page 7: Afhds2 A第二代增强版自动跳频数字系统
Digital propotional radio control system FS-GT2F 5.03. AFHDS2A 第二代增强版自动跳频数字系统 AFHDS2A (automatic frequency hopping digital system 2A) is the digital radio system with independent intellectual property, which is newly developed by FLYSKY. This system is developed specially for high-end model products. As the one of the best system in the market, it has built-in multiple channel coding, error-correction, longer communication distance and more powerful antijamming capability. -
Page 8: Afhds和Afhds2A系统互换
AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to customer needs. The two-way communication mode with data return function can help users understand current working status better and make the fight more enjoyable. -
Page 9: Transmitter Specifications 发射机参数
Digital propotional radio control system FS-GT2F Transmitter specifications 发射机参数 Transmitter specifications: Channels: 2 Model type: car/boat RF range:2.405-2.475GHz FS-GT2F Bandwidth:500KHz Band:142 RF power: less than18 dBm 2.4G system: AFHDS2A and AFHDS Code type: GFSK Sensitivity: 1024 Low voltage warning: less than 4.2V... -
Page 10: Receiver And Servo Connections 接收机与伺服器连接
9.Receiver and servo connections 接收机与伺服器连接 9.01. Installation when a motor controller is used 带马达模型的安装连接 调速器 开关 伺服器 马达 电池 接收机 Remark: Place the receiver antenna upright and perpendicular to the horizontal plane Keep the receiver antenna away from any metal objects to ensure max sensitivity. (See pic1) 注：在安装接收机时请将接收机天线与水平面垂直放置！且天线尽可能... -
Page 11: Installation For Gas Powered Models 发动机模型的安装
Digital propotional radio control system FS-GT2F 9.02. Installation for gas powered models 发动机模型的安装 开关 电池 油门 接收机 方向系统 伺服器... -
Page 12: 4Ghz Operation Notes2.4G操作注意事项
2.4GHz Operation notes 2.4G操作注意事项 10.01. Matching(code)/Binding 对码 All receivers are already paired with their respective transmitter during production. If you wish to bind it with another transmitter, please follow the instructions below. Remark: FS - brand system are not compatible with other brands Steps: 1. -
Page 13: Power On开机
Digital propotional radio control system FS-GT2F 10.02 Power on 开机 1. 将各部件链接好； A. Connect every part. 2. 打开发射机电源开关； B. Switch on the power supply of the transmitter. 3. 连通接收机电源； C. Connect the power supply of the receiuer. D. Receive LED light solid. -
Page 14: Each Part Of The Transmitter.发射机部件
each part of the transmitter 发射机部件 Front 对码键 BIND Key 电源指示灯 POWER LED S T倒置开关 ST REV 电源开关 POWER ON/OFF 数据输出接口 DSC FOR SIMULATE S T 中位微调 ST TRIM T H 倒置开关 TH REV T H 中位微调 TH TRIM S T通道比例微调 ST D/R 工作指示灯... -
Page 15: Transmitter Function Notes发射机功能说明
Digital propotional radio control system FS-GT2F Transmitter function notes 发射机功能说明 12.01. Steering control 方向控制 Function Introduction: This function is to control the direction,when the steering turn to right then the front wheel will turn to right (as picture),when the steering turn to left then the front wheel will turn to left(as picture). -
Page 16: T Hrottle Control油门控制
12.02 油门控制 Throttle control Function Introduction: This function is to control the throttle speed,when pull the rhrotte trigger back,car will accelerate forward(see the picture),when push the throttle trigger,the car will put on the brakes or double ring asterm(according to the differ- ent ESC)(see thepicture). -
Page 17: Failsafe Function接收机操作说明
Digital propotional radio control system FS-GT2F Fail safefunction 接收机操作说明 13.01 Failsafe Instruction 失控保护功能说明 FAIL SAFE FUNCTION 1.Function Failsafe aims to prevent out-of-control driving of RC car orRC boat.If the Receiver is not able to receive any signal,from the control to throttle,the parameter of throttle on receiver will turn back to its original setting. -
Page 18: Simulate模拟
Simulation 模拟 Introduction: The following is for the virtual RC racing practice on computer, and you can also play simulated competition on the computer. Operation Methods: 1.Using FS-SM102 simulator cable, please insert the micro USB plug into Transmitter, and the USB plug into a PC. 2.Switch on the Transmitter. - Page 19 Digital propotional radio control system FS-GT2F Explooed orwing 爆炸图...
-
Page 20: Packaging Content包装内容
Packaging content 包装内容 2 channel 2.4G transmitter(FS-GT2F) 2 通2.4G发射 3 channel 2.4G receiver(FS-A3) 3 通2.4G接收 Manual 说明书 Servo(FS-S009) 可选的 伺服器 FS-SM102 可选的 模拟线... - Page 21 Digital propotional radio control system http://www.flysky-cn.com Copyright ©2013-2017 Flysky co., ltd...
