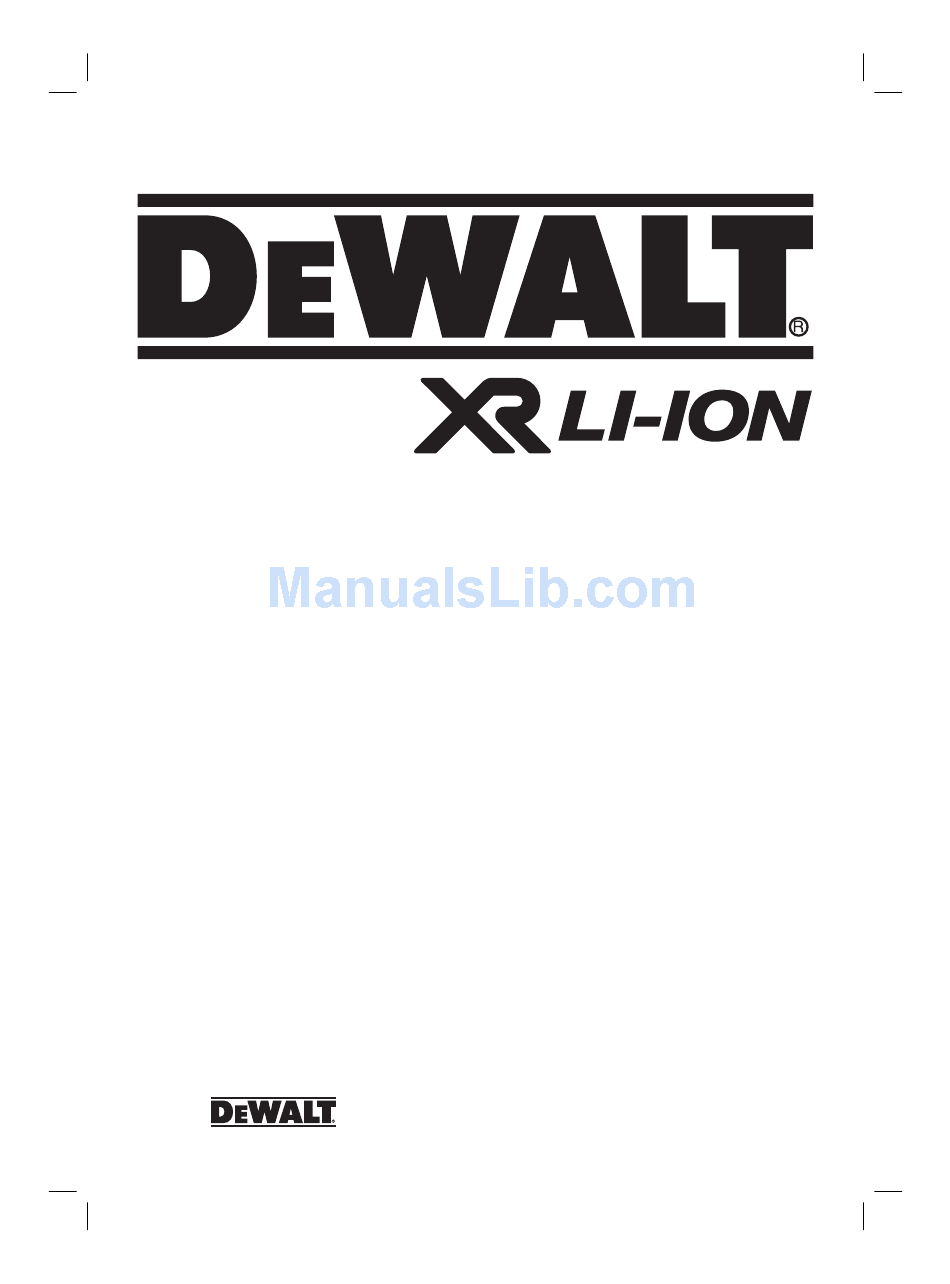

- Page 1 DCD720 DCD740 www.
- Page 2 Dansk (oversat fra original brugsvejledning) Deutsch (übersetzt von den Originalanweisungen) English (original instructions) Español (traducido de las instrucciones originales) Français (traduction de la notice d’instructions originale) Italiano (tradotto dalle istruzioni originali) Nederlands (vertaald vanuit de originele instructies) Norsk (oversatt fra de originale instruksjonene) Português (traduzido das instruções originais) Suomi (käännetty alkuperäisestä...
- Page 3 Figure 1 Figure 2...
- Page 4 Figure 3...
-
Page 5: Technical Data
EN GLI SH CORDLESS RIGHT ANGLE DRILL/DRIVER DCD720, DCD740 Congratulations! WARNING: The declared vibration emission level represents the main You have chosen a D WALT tool. Years of applications of the tool. However if the experience, thorough product development and... -
Page 6: Ec Declaration Of Conformity
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs DCD720, DCD740 and matching outlets will reduce risk of electric shock. WALT declares that these products described... -
Page 7: Personal Safety
EN GLI SH 3) PERSONAL SAFETY measures reduce the risk of starting the power tool accidentally. Stay alert, watch what you are doing and use common sense when operating a Store idle power tools out of the reach power tool. Do not use a power tool while of children and do not allow persons you are tired or under the influence of unfamiliar with the power tool or these... -
Page 8: Residual Risks
EN GL IS H Additional Specifi c Safety Rules for Markings on Tool Drills The following pictograms are shown on the tool: • Wear ear protectors when drilling. Exposure Read instruction manual before use. to noise can cause hearing loss. •... -
Page 9: Charging Process
EN GLI SH • These chargers are not intended for Chargers any uses other than charging D WALT The DCB105 charger accepts 10.8 V, 14.4 V and rechargeable batteries. Any other uses 18 V Li-Ion (DCB121, DCB140, DCB141, DCB180 may result in risk of fire, electric shock or and DCB181) battery packs. -
Page 10: Important Safety Instructions For All Battery Packs
WALT chargers. BATTERY TYPE • DO NOT splash or immerse in water or other The DCD720 operates on an 14.4 volt battery pack. liquids. The DCD740 operates on an 18 volt battery pack. • Do not store or use the tool and battery... -
Page 11: Package Contents
EN GLI SH Labels on Charger and Battery Pack Package Contents In addition to the pictographs used in this manual, The package contains: the labels on the charger and the battery pack show 1 Drill the following pictographs: 1 Charger 1 Battery Read instruction manual before use. -
Page 12: Electrical Safety
EN GL IS H Electrical Safety 2. Slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does The electric motor has been designed for one not disengage. voltage only. Always check that the battery pack TO REMOVE THE BATTERY PACK FROM THE TOOL voltage corresponds to the voltage on the rating plate. -
Page 13: Operation
EN GLI SH Dual Range Gearing (fi g. 1) DEEP HEX POCKET (FIG. 1) The dual range feature of your drill allows you to shift Your tool features a deep hex pocket (d) which gears for greater versatility. is through and behind the chuck (k). This allows for a 2"... -
Page 14: Drill Operation
EN GL IS H Proper Hand Position (fi g. 3) 6. To minimize stalling or breaking through the material, reduce pressure on drill and ease the WARNING: To reduce the risk of bit through the last fractional part of the hole. serious personal injury, ALWAYS use 7. -
Page 15: Optional Accessories
EN GLI SH WARNING: Never use solvents or advantage of this service please return your product other harsh chemicals for cleaning the to any authorised repair agent who will collect them non-metallic parts of the tool. These on our behalf. chemicals may weaken the materials You can check the location of your nearest used in these parts. - Page 16 EN GL IS H GUARANTEE WALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user.
