Page 5: What Is The Equipment Touch

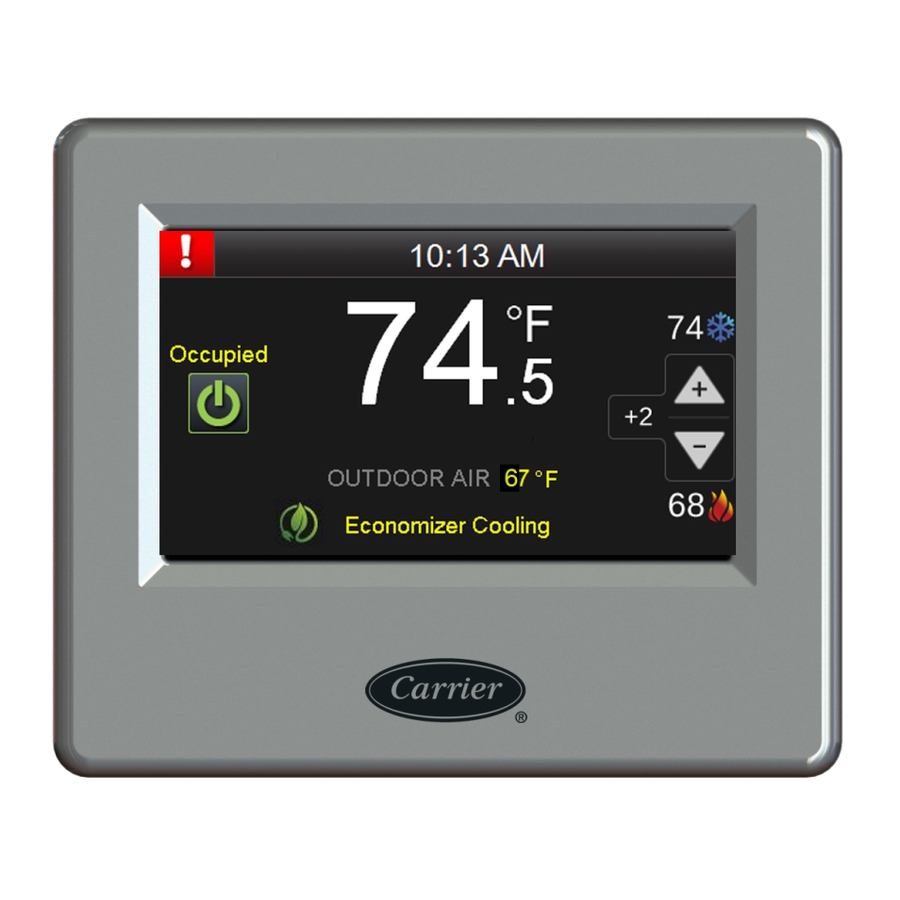

The Equipment Touch is a touchscreen device that you can attach to a controller to view or change its property values, schedule equipment, view trends, and more, without having to access the system's server. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014... -
Page 6: Equipment Touch Screens
No password Anyone NOTES • You log out on the Setup screen. • You can change passwords on the Touchscreen Setup > Passwords screen (page 16). Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved... - Page 7 Data, Driver Data, Reset Counters, System Errors, Warnings, Information, Hardware, Database, Network. For example, the screens below show examples of the Driver Data and Reset Counters information. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 8 Lets you view alarms from the controller. See Viewing alarms (page 11). Trends Lets you view trends for points that have trending enabled. See Viewing trends (page 12). Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 9 Lets you view, add, edit, or delete BACnet schedules in the controller. See Setting up schedules (page 13). Setup Touch a button to jump to the Module Setup, Touchscreen Setup, or Login screen. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 10 BACnet Object Instance number. Below is an example of AV BACnet objects in a controller. Touch an object in the above screen to see the details shown below. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 11 NOTE A yellow value on a Module Setup screen indicates the value has been changed. Set Time and Date Touch the time or date field to edit it. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 12 Router Lets you view or edit the router's ARC156, MS/TP, or Ethernet network number. Touch a field to tap in the new number on the keypad. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 13 If such an entry is found, the BACnet Time Master mode is set for Local Broadcast. Otherwise, the mode defaults to Disabled/None. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
- Page 14 Equipment Touch screens Screen name Description Touchscreen Setup Lets you edit the touchscreen settings (page 16). Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
-
Page 15: Viewing Alarms
See alarms that you cleared using the Clear Active button. Clear Active Clear all active alarms and faults. NOTE The Equipment Touch can hold up to 100 alarms. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved... -
Page 16: Viewing Trends
Touch either field and edit the value to define a new range for the Y axis. Touch Display Trends. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved... -
Page 17: Viewing Or Creating Schedules
NOTE If you see Schedule editing disabled at the bottom of the screen instead of Add Schedule, scheduling is being done through another application and is disabled for the Equipment Touch. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014... -
Page 18: To Create A Schedule
5:00 pm. Continuous Continuously between 2 specified dates/times, For example, a non-stop schedule that starts June 1st at 12:00 am and ends August 31st at 11:50 pm. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved... - Page 19 Override for a occupied period that is to override an OFF schedule. Touch Next to define the criteria for the type of schedule you selected in step 6. Touch Save when finished. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
-
Page 20: To Edit Touchscreen Settings
Reload Firmware Lets the installer update the firmware through the USB port. See "To update the Equipment Touch's firmware" in the Equipment Touch Installation and Setup Guide. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved... - Page 21 Recalibrate the screen if you touch it in one location and it responds as if you touched it in another. Equipment Touch Carrier Proprietary and Confidential CARRIER CORPORATION ©2014 Rev. 4/9/2014 All rights reserved...
