#20907 –
2/20/19
Overview
The Immersion Temperature Sensor is made for thermowell mounting and temperature measurement in water pipes, water tanks or
cooling tower sump applications. The rigid probe is made of Stainless Steel and made in different lengths for a custom thermowell fit.
Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.
Catalog No. 11-808-632-01

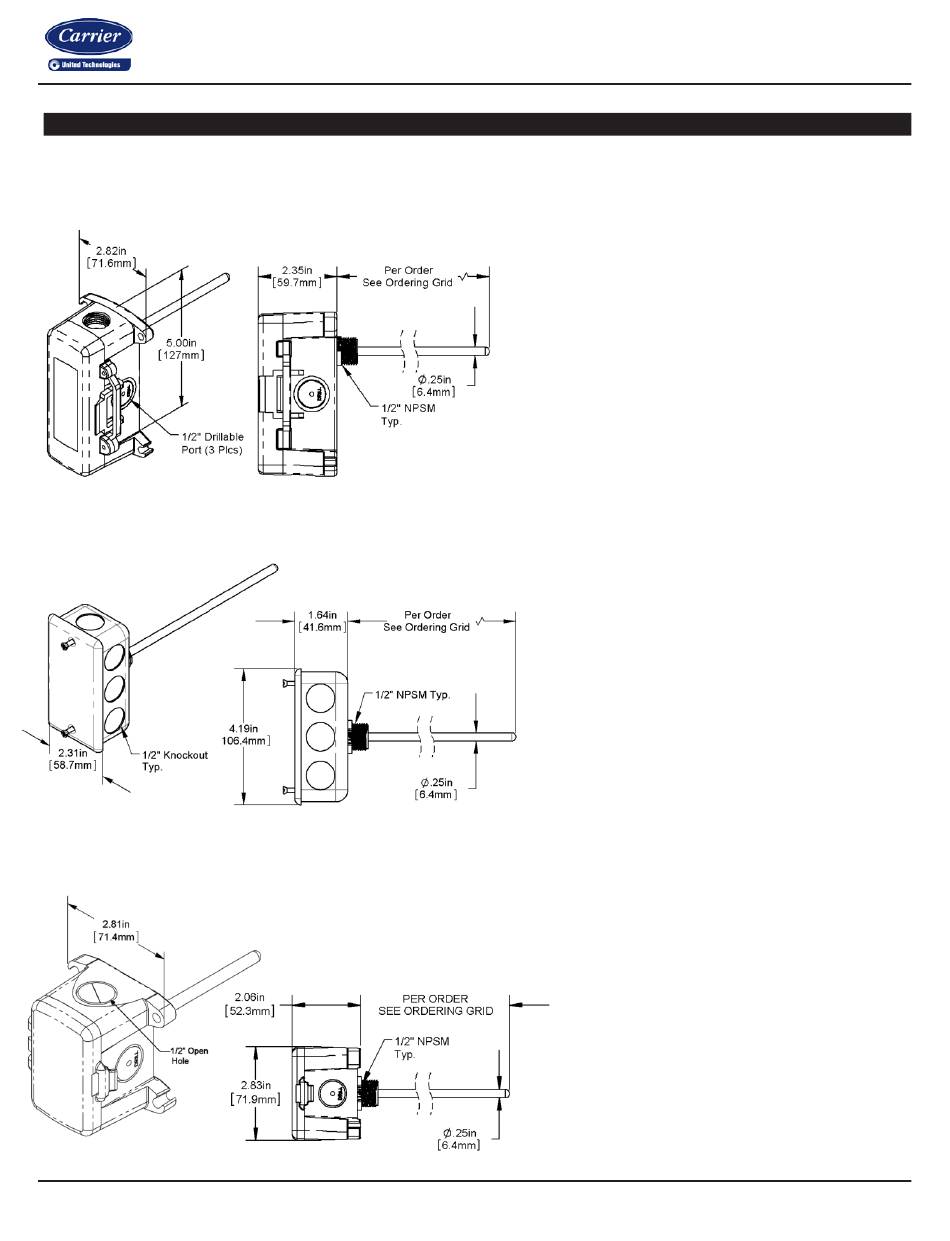

Figure 1: BB2 Box Immersion
Part #s
Figure 2: J-Box Immersion (Standard)
Part #s
Specifications subject to change without notice.
Immersion Temperature Sensors
Installation and Operation
NSB-10K-2-I-2-BB2 (2" probe, no thermowell)
NSB-10K-2-I-4-BB2 (4" probe, no thermowell)
NSB-10K-2-I-8-BB2 (8" probe, no thermowell)
NSB-10K-2-I-2-M304 (2" probe, 304 SS thermowell)
NSB-10K-2-I-4-M304 (4" probe, 304 SS thermowell)
NSB-10K-2-I-2 (2" probe, no thermowell)
NSB-10K-2-I-4 (4" probe, no thermowell)
NSB-10K-2-I-8 (8" probe, no thermowell)
NSB-10K-2-I-2-M304 (2" probe, 304 SS thermowell)
NSB-10K-2-I-4-M304 (4" probe, 304 SS thermowell)
NSB-10K-2-I-8-M304 (8" probe, 304 SS thermowell)
Figure 3: BB4 Box Immersion
Part #s
NSB-10K-2-I-2-BB4 (2" probe, no thermowell)
NSB-10K-2-I-4-BB4 (4" probe, no thermowell)
NSB-10K-2-I-8-BB4 (8" probe, no thermowell)
A Pierceable Knockout Plug
is available for the open port in the BB4.
(Part
#NSB-PKP-100)
1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carrier NSB-10K-2-I-2-BB2
Summary of Contents for Carrier NSB-10K-2-I-2-BB2
- Page 1 Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated. Figure 1: BB2 Box Immersion Part #s NSB-10K-2-I-2-BB2 (2” probe, no thermowell) NSB-10K-2-I-4-BB2 (4” probe, no thermowell) NSB-10K-2-I-8-BB2 (8” probe, no thermowell) NSB-10K-2-I-2-M304 (2”...
-
Page 2: Specifications
Immersion Temperature Sensors Installation and Operation #20907 – 2/20/19 Specifications Mounting ½” NPSM Plastic Threads Sensor: Passive, 2 wire Enclosure Types Thermistor Thermal resistor (NTC) J-Box (-JB) With eight ½” knockouts Temp. Output Resistance Per Order1 Accuracy (std) ±0.36ºF, (±0.2ºC) BB2 Box With three ½”... - Page 3 2/20/19 Thermowells (continued…) Choosing the correct Thermowell As part of our ZS Sensor line, Carrier sells 2.5” and 4.5” machined thermowells made of Brass or 304 Stainless Steel (SS) and two- part welded thermowells made of 304 Stainless Steel. The two-part welded thermowells are not as strong as their machined counterparts.
-
Page 4: Thermowell Installation
Immersion Temperature Sensors Installation and Operation #20907 – 2/20/19 Thermowells (continued…) Table 3: Pipe Insertion Recommendations using Carrier Thermowells Thermowell Installation To install a thermowell, a pipe fitter typically drills a 6.5” Overall ¾-inch hole into the pipe where the thermowell is Probe Length 2”... -
Page 5: Immersion Sensor Installation
Immersion Temperature Sensors Installation and Operation #20907 – 2/20/19 Thermowell Installation (continued…) Pipes less than 3 inches in diameter T- Mount Figure 7 shows how a 2” tee and a ½” to 2” bushing allows a 2” thermowelll to measure the temperature of the contents of a 2”... - Page 6 Immersion Temperature Sensors Installation and Operation #20907 – 2/20/19 Immersion Sensor Installation (continued…) Hand tighten into well Per order Sensor slides 1. Pull sensor to extend fully 2. Insert 3. Hand tighten Figure 10: Typical Sensor Inserted Figure 11: BB4 Sensor Before Insertion Per order Per order Sensor slides...
-
Page 7: Wiring & Termination
Wiring & Termination Carrier recommends using twisted pair of at least 22AWG and sealant filled connectors for all wire connections. Larger gauge wire may be required for long runs. All wiring must comply with the National Electric Code (NEC) and local codes. Do NOT run this device’s wiring in the same conduit as high or low voltage AC power wiring.
