Installation Guide

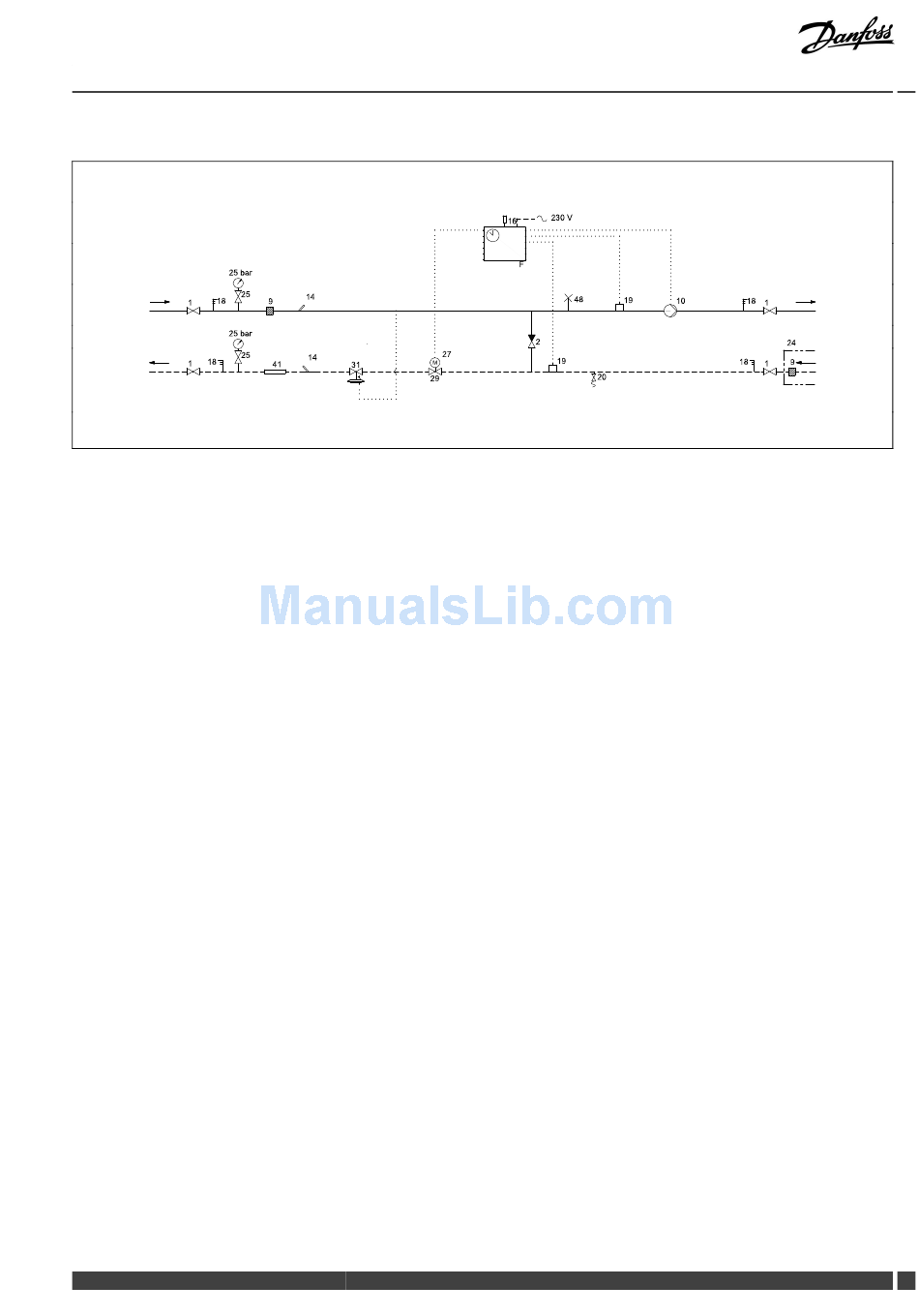

5.2 Schematic diagram

DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
F
Electronic controller
1
Ball valve
2
Single check valve
9
Strainer
10 Circulation pump
14 Sensor pocket, energy meter
DH Supply:
District Heating Supply
DH Return:
District Heating Return
HE Supply:
Heating Supply
HE Return:
Heating Return
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Sound level:
Danfoss District Energy
Termix HD MIX Compact 28
16 Outdoor sensor
18 Thermometer
19 Surface sensor
20 Filling/drain valve
24 Delivered loose with unit
25 Pressure gauge with ball valve
PN 16
120 °C
≤ 55 dB
VI.GP.E1.02 / LUK42860
27 Actuator
29 2-way motorized valve
31 Differential pressure controller
41 Fitting piece, energy meter
48 Air vent, manual
HE
Supply
HE
Return
DEN-GT
9
