Installation Guide
5.0 Design

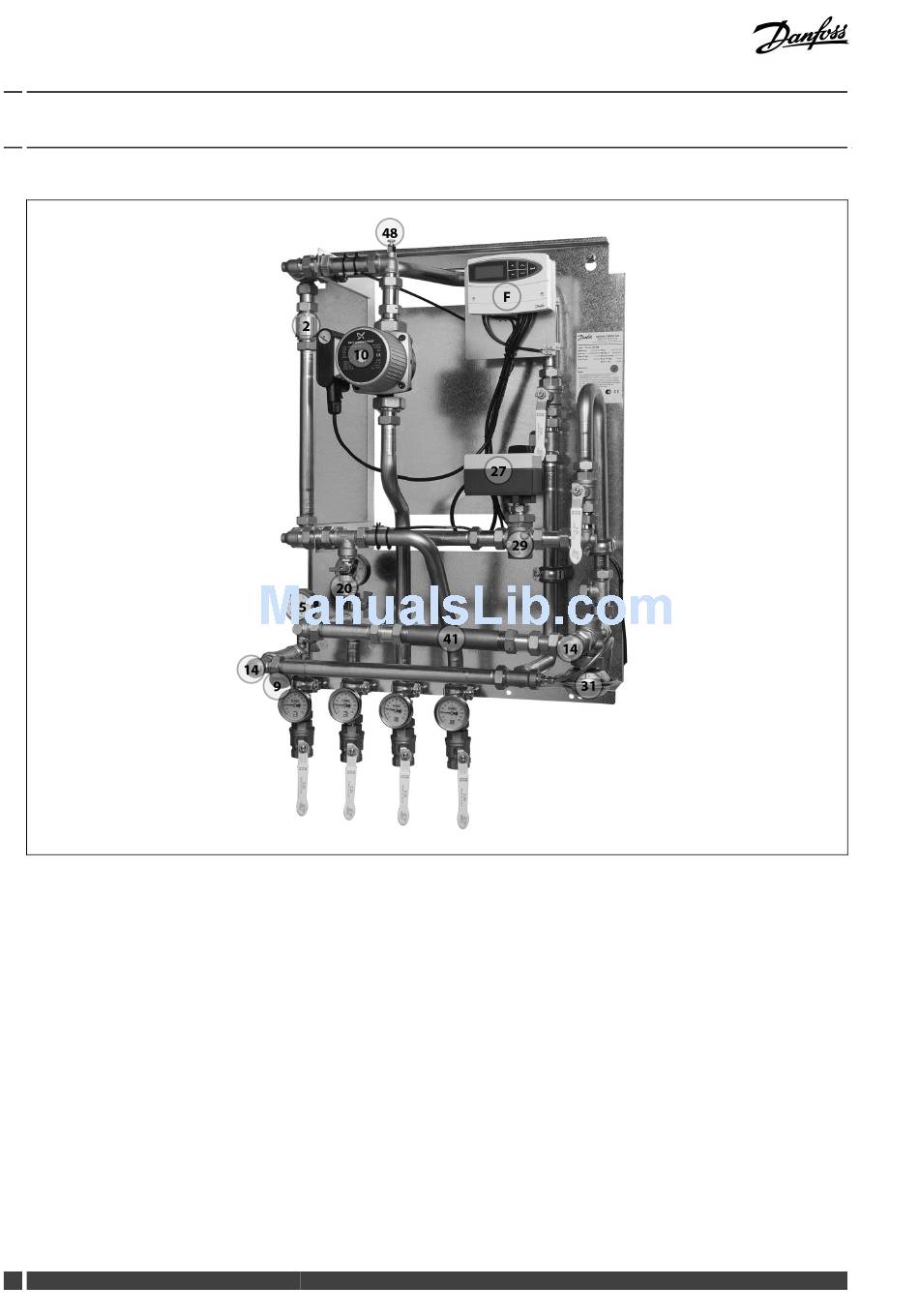

5.1 Design
Your substation might look different than the substation shown.
Design description
F
Electronic controller
2
Single check valve
9
Strainer
10 Circulator pump
8
DEN-GT
Termix HD MIX Compact 28
14 Sensor pocket, energy meter
20 Filling/drain valve
25 Pressure gauge with ball valve
27 Actuator, HE
VI.GP.E1.02 / LUK42860
29 2-way motorized valve
31 Differential pressure controller
41 Fitting piece, energy meter
48 Air vent, manual
Danfoss District Energy
