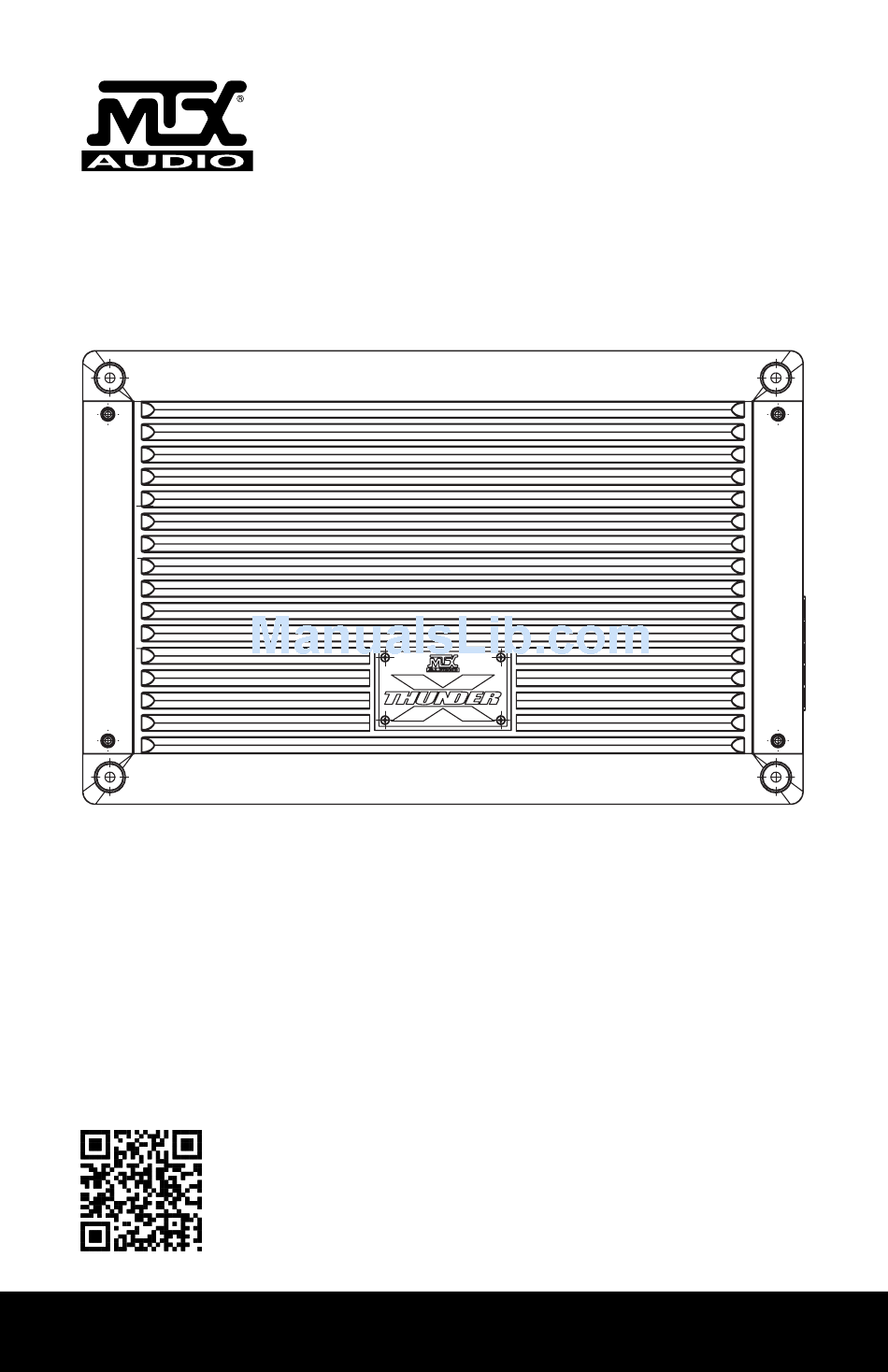

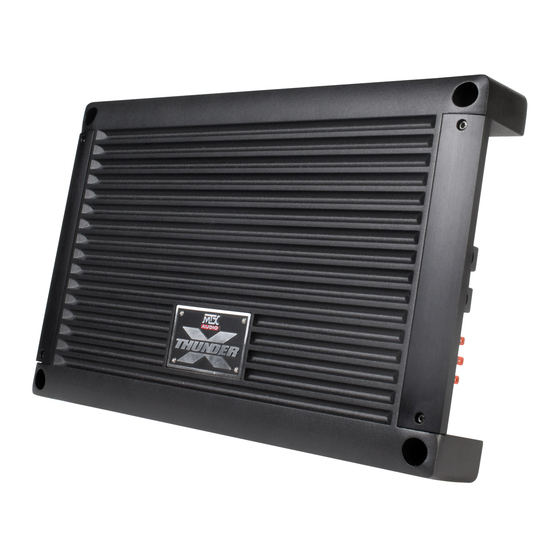

OWNER'S MANUAL
XTHUNDER AMPLIFIERS
Use your smartphone to scan or visit
youtube.com/user/MTXAudioUSA
to learn how to properly install this
amplifier.
M T X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTHUNDER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTX XTHUNDER

Summary of Contents for MTX XTHUNDER

  • Page 1 OWNER’S MANUAL XTHUNDER AMPLIFIERS Use your smartphone to scan or visit youtube.com/user/MTXAudioUSA to learn how to properly install this amplifier. M T X . C O M...

  • Page 2: Product Information

    Thank you for purchasing this MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether you are waking the neighbors or just out enjoying your tunes. Congratulations...

  • Page 3: Panel Layout

    10. High Pass Filter (Full Range) - This controls the frequencies played for the front and rear channels. Low frequencies can be cut off from 40Hz to 250Hz. 11. X-Over Mode and Frequency Control (Full Range) - These controls allow control over the frequencies played for the rear channels.
  • Page 4 PANEL LAYOUT XTHUNDER800.5 5-Channel Amplifier Panel Layout – – R CH + +12V L CH FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – – – R CH + L CH XTHUNDER800.5 BRIDGE FRONT REAR FRONT REAR REMOTE TURN ON LEVEL FREQ LEVEL FREQ...

  • Page 5: Wiring Diagram

    (GND) terminal on the MTX amplifier. 6. Connect a Remote Turn-On wire from the source unit to the MTX amplifier’s (REM) terminal. If the source unit does not have a dedicated Remote Turn-On lead, you may connect to the source unit’s Power Antenna lead.

  • Page 6: Installation

    INSTALLATION For proper perfomance and safety, MTX recommends installing an inline fuse per the owner’s manual instructions according to the following. XTHUNDER1500.1 160A Fuse XTHUNDER1200.1 120A Fuse XTHUNDER800.5 80A Fuse XTHUNDER125.4 80A Fuse TROUBLESHOOTING Problem Cause Solution No +12V at Remote Connection...

  • Page 7: Specifications

    SPECIFICATIONS Model XTHUNDER1500.1 XTHUNDER1200.1 XTHUNDER800.5 XTHUNDER125.4 1 x 1500 W RMS 1 x 1200 W RMS 1 x 400 W RMS Description 4 x 125 W RMS Mono Mono 4 x 125 W RMS RMS Power at 14.4V 1Ω Load 1500 W RMS 1200 W RMS 1 x 400 W RMS...

  • Page 8: Información Del Producto

    MTX, produce un sonido y un rendimiento de calidad superior durante incontables horas de placer, sea que esté despertando a los vecinos o simplemente disfrutando de su música. Felicitaciones, y disfrute de lo máximo en experiencias de audio con MTX. CARACTERÍSTICAS •...
  • Page 9 10. Filtro de pasaaltas (gama completa de frecuencias). Esto controla las frecuencias que se reproducen por los canales delanteros y transeros. Las frecuencias bajas se pueden eliminar desde apagado 40Hz hasta 250 Hz. 11. Control de modalidad de crossover y frecuencias (gama completa). Estos controles permiten controlar las frecuencias que se reproducen por los canales traseros.
  • Page 10 DISPOSICIÓN DEL PANEL XTHUNDER800.5 Disposición del panel del amplificador de cuatro canales – – R CH + +12V L CH FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – – – R CH + L CH XTHUNDER800.5 BRIDGE FRONT REAR FRONT REAR REMOTE TURN ON LEVEL...

  • Page 11: Diagrama De Cableado

    6. Conecte un cable de encendido a distancia de la fuente a la terminal (REM) del amplificador MTX. Si la fuente no tiene cable dedicado al encendido a distancia, puede conectar el cable de la antena eléctrica de la fuente a la terminal (REM) del amplificador MTX.

  • Page 12: Instalación

    INSTALACIÓN Para un correcto funcionamiento y seguridad MTX recomienda instalar un fusible en línea según las instrucciones del Manual del Propietario de acuerdo a lo siguiente. XTHUNDER1500.1 160A Fusible XTHUNDER1200.1 120A Fusible XTHUNDER800.5 80A Fusible XTHUNDER125.4 80A Fusible DETECCIÓN Y REPARACIÓN DE AVERÍAS...

  • Page 13: Especificaciones

    ESPECIFICACIONES Modelo XTHUNDER1500.1 XTHUNDER1200.1 XTHUNDER800.5 XTHUNDER125.4 1 x 1500 W RMS 1 x 1200 W RMS 1 x 400 W RMS Descripción 4 x 125 W RMS Mono Mono 4 x 125 W RMS Potencia RMS a 14.4 V 1 Ω de carga 1500 W RMS 1200 W RMS 1 x 400 W RMS...

  • Page 14: Informações Sobre O Produto

    Data de compra INTRODUÇÃO Agradecemos pela sua compra de um amplificador de ·áudio de alto desempenho MTX. Uma instalação bem feita com alto-falantes e subwoofers MTX oferece reprodução sonora e desempenho superiores para horas infindáveis de prazer, quer para acordar os vizinhos ou simplesmente para curtir suas músicas preferidas.
  • Page 15 11. Modo X-Over e controle de frequência (faixa completa) - Estes controles permitem controlar as frequências reproduzidas para os canais traseiros. Há opções para passa-baixa (LP), faixa completa (FR) ou passa-alta (HP). No modo LP ou HP, a frequência de crossover pode ser ajustada de 45 Hz a 250 Hz. 12.
  • Page 16 LAYOUT DO PAINEL XTHUNDER800.5 Layout do painel do amplificador de 5 canais – – R CH + +12V L CH FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – – – R CH + L CH XTHUNDER800.5 BRIDGE FRONT REAR FRONT REAR REMOTE TURN ON LEVEL...

  • Page 17: Diagrama De Conexão

    1. Desconecte o cabo do terminal negativo da bateria do veículo. 2. Escolha o local de instalação do amplificador MTX. Deve haver fluxo de ar suficiente para permitir um bom arrefecimento. Marque os orifícios de montagem do amplificador para serem perfurados.

  • Page 18: Solução De Problemas

    INSTALAÇÃO Para um desempenho adequado e Segurança MTX recomenda a instalação de um fusível em linha por Manual de Instruções do Proprietário de acordo com o seguinte. XTHUNDER1500.1 160A Fusível XTHUNDER1200.1 120A Fusível XTHUNDER800.5 80A Fusível XTHUNDER125.4 80A Fusível SOLUÇÃO DE PROBLEMAS...
  • Page 19 ESPECIFICAÇÕES Modelo XTHUNDER1500.1 XTHUNDER1200.1 XTHUNDER800.5 XTHUNDER125.4 1 x 1500 W RMS 1 x 1200 W RMS 1 x 400 W RMS Descrição 4 x 125 W RMS Mono Mono 4 x 125 W RMS Potência RMS a 14,4 V Carga de 1 Ω 1500 W RMS 1200 W RMS 1 x 400 W RMS...

  • Page 20: Informations Sur Le Produit

    Merci de votre achat de l’amplificateur audio MTX hautes performance. Son installation correcte associée à des haut-parleurs et des caissons de graves MTX vous apportera un son et des performances de qualité supérieure que vous apprécierez pendant des heures en diffusant de la musique pour le plaisir de vos voisins ou simplement de vous-même.
  • Page 21 10. Filtre passe-haut (pleine gamme) – Ceci contrôle les fréquences provenant des canaux avant et arrière. La coupure des basses fréquences peut être réglée de la position 40 Hz à 250 Hz. 11. Commande du mode répartiteur et commande de la fréquence (pleine gamme) – Ces commandes permettent de contrôler les fréquences pour les canaux arrière.
  • Page 22 PRESENTATION DU PANNEAU XTHUNDER800.5 Disposition du panneau de l’amplificateur 5 canaux – – R CH + +12V L CH FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – – – R CH + L CH XTHUNDER800.5 BRIDGE FRONT REAR FRONT REAR REMOTE TURN ON LEVEL FREQ...

  • Page 23: Schema De Cablage

    6. Raccordez un fil de mise en marche à distance de l’unité source à la borne (REM) de l’amplificateur MTX. Si l’appareil source n’est pas doté d’un fil de mise en marche à distance dédié, vous pouvez brancher la borne REM de l’amplificateur MTX au fil d’antenne électrique de l’appareil source.

  • Page 24: En Cas De Difficulte

    INSTALLATION Pour la bonne exécution et de la sécurité MTX recommande d’installer un fusible en ligne par les instructions du mode d’emploi selon la formule suivante. XTHUNDER1500.1 160A Fusible XTHUNDER1200.1 120A Fusible XTHUNDER800.5 80A Fusible XTHUNDER125.4 80A Fusible EN CAS DE DIFFICULTE Problème...

  • Page 25: Caracteristiques Techniques

    CARACTERISTIQUES TECHNIQUES Modèle XTHUNDER1500.1 XTHUNDER1200.1 XTHUNDER800.5 XTHUNDER125.4 1 x 400 W eff. Description 1500 W eff. Mono 1200 W eff. Mono 4 x 125 W eff. 4 x 125 W eff. Puissance eff. à 14,4 V Charge 1 Ω 1500 W eff. 1200 W eff.

  • Page 26: Wiring Diagram

    WIRING DIAGRAM Mono Block Amplifier Wiring (Single Subwoofer Load) +12V – FUSE SPEAKER OUTPUT XTHUNDER1500.1 POWER INPUT Remote Signal FUSE Source Unit 1 Ohm Minimum RCA Signal LINE OUT LINE INPUT REMOTE TURN ON INPUT L CH L CH OUTPUT POWER AUTO SLAVE...
  • Page 27 WIRING DIAGRAM Mono Block Amplifier Wiring (Multi-Subwoofer Load) +12V – FUSE SPEAKER OUTPUT XTHUNDER1500.1 POWER INPUT Remote Signal FUSE Source Unit 2 Ohm Minimum RCA Signal 2 Ohm Minimum LINE OUT LINE INPUT REMOTE TURN ON INPUT L CH L CH OUTPUT POWER AUTO...
  • Page 28 WIRING DIAGRAM XTHUNDER125.4 Amplifier Wiring (4-Channel Mode) Crossover Crossover – – +12V L CH R CH + FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – L CH + – R CH + XTHUNDER125.4 BRIDGE FUSE Crossover Remote Signal Source Unit Crossover RCA Signal RCA Signal...
  • Page 29 WIRING DIAGRAM XTHUNDER125.4 Amplifier Wiring (3-Channel Mode) Crossover Crossover – – +12V L CH R CH + FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – L CH + – R CH + XTHUNDER125.4 BRIDGE FUSE Remote Signal Source Unit 4-Ohm to 8-Ohm RCA Signal RCA Signal FRONT...
  • Page 30 WIRING DIAGRAM XTHUNDER800.5 Amplifier Wiring (5-Channel Mode) Crossover Crossover – – R CH + +12V L CH FUSE FRONT SPEAKER OUTPUT REAR POWER INPUT – – – R CH + L CH XTHUNDER800.5 BRIDGE FUSE Crossover Remote Signal Source Unit Crossover 2 Ohm Minimum RCA Signal...
  • Page 31 NOTES: M T X . C O M...
  • Page 32 © 2014 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A.
