LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written per-
mission of ZTE Corporation.
USB Modem
The manual is published by ZTE Corporation. We reserve the right to make modifications on print er-
Quick Start Guide
rors or update specifications without prior notice.

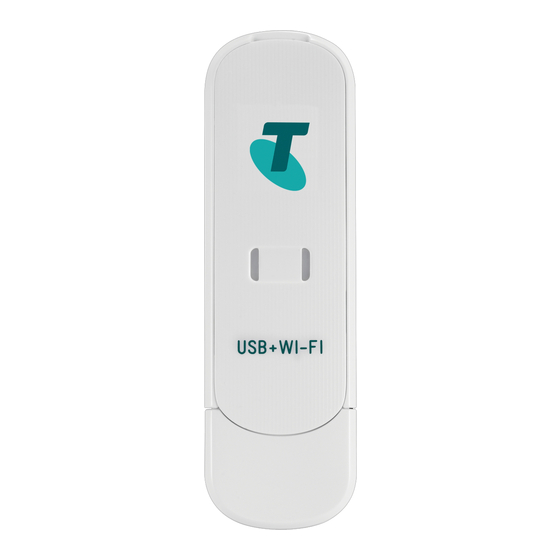

MF70
Version No. : R1.0
Edition Time: 2014.04
3.
Install the microSDHC card to the microSDHC card slot.
4.
Close the front cover gently back into place.
ZTE corporation,
Connecting the Modem to Your PC
Millennium Business Park ,
Via USB Connector
A/8 Sector -1 2nd Floor
Install the device to your computer's USB port securely. The OS automatically detects and recognizes
A- Wing Mahape,
your modem and starts the installation wizard.
Navi Mumbai 400710 INDIA
Getting to Know Your Device
Your device supports data and SMS services through the mobile phone network, enabling you to
communicate anytime and anywhere.
The following figure is only for your reference. The actual product may be different.
1.
microSDHC card slot
2.
Reset button
3.
(U)SIM card slot
4.
USB connector
5.
External antenna connector
6.
Front cover
7.
LED indicator
8.
Modem cap
2
3
NOTE: If the system does not launch installation automatically,
you can run the installation program by selecting My Com-
puter > airtel 3G.
Via Wi-Fi
1.
Power on your device.
2.
Use your normal Wi-Fi application on the client to search
the available wireless network.
7
8
Connection Scenario
NOTE:
Your device supports multi-clients for surfing on the Internet at the same time. The following figure is
•
microSDHC™ logo
is a trademark of SD-3C, LLC.
only for your reference.
•
Use the original external antenna if necessary.
TIP: With other accessories, such as mobile power and car power adapter, you will be able to supply
Indicator
power to your device and use it anywhere and anytime.
Indicator
Status
Description
Red solid
Turned on and not registered.
Green solid
Registered to 2G.
3G
Green blinking
Connected to 2G and data is being transferred.
Blue solid
Registered to 3G.
Blue blinking
Connected to 3G and data is being transferred.
Blue blinking
Wi-Fi is Active.
Wi-Fi
Blue solid
WPS is Active.
LED off
Wi-Fi is off.
4
NOTE: Please set the client to obtain an IP address automatically referring to the chapter "Configuring
4.
Input the password, and then click Connect.
your PC", and then the client will get an IP address like "192.168.0.100".
3.
Select the SSID of your device, and then click Connect.
NOTE:
You may need to enter the password for the Wi-Fi connection. You can view the label on your device
to get the default password.
9
Installation Guide
Installing the (U)SIM Card and microSDHC Card
1.
Open the front cover.
NOTE:
Do not open the front cover rudely. Failing to do so may cause damage to
the front cover.
2.
Install the (U)SIM card to the (U)SIM card slot.
IMPORTANT: Your device does not support the Micro/Nano SIM card or
any other nonstandard SIM cards. To avoid damaging the device, do not
use those cards or any card holders.
5
6
5.
Wait a moment, and then the client will connect to your device successfully.
10
11
