Summary of Contents for Zte MF861

  • Page 1 MF861 User Guide...

  • Page 2: Table Of Contents

    Status LED Indicator ................4 Connecting the MF861 to Your PC ............4 Connect to the Internet................5 Properly Remove the MF861 from Your Computer ......6 Using Your MF861 ..................7 AT&T USB Modem Configuration Page ..........7 View WAN Information ................ 7 Configure Data Network Options ............

  • Page 3: Get Started

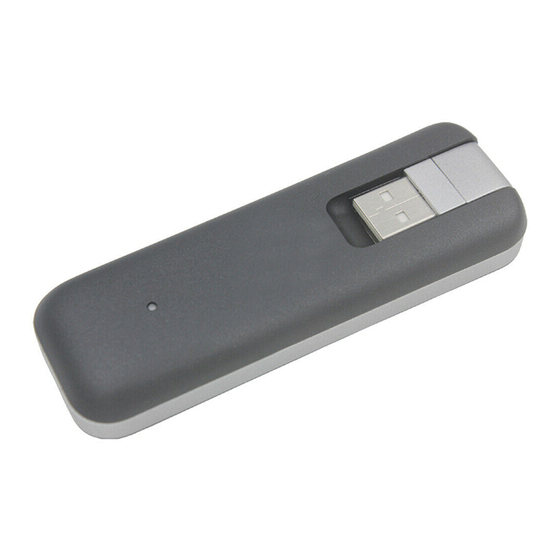

    Get Started This chapter provides an overview of the MF861 features, and instructions on how to set up your MF861 and connect to the Internet. Know Your Device Your MF861 enables you to connect at high speeds to the Internet and access your email while you’re away from the office.

  • Page 4: Status Led Indicator

    5. External antenna connector — plugs in antenna if necessary. 6. USB folding hinge — folds the USB Connector into your MF861, and allows the USB Connector to be extended and plugged into your computer. 7. (U)SIM card slot — insert the 4G LTE SIM card into the spring-loaded SIM card slot.

  • Page 5: Connect To The Internet

    Connect to the Internet To connect to the AT&T network: After your MF861 successfully connected to your PC, the device automatically connect to the network. To disconnect from the AT&T network: 1. Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar.

  • Page 6: Properly Remove The Mf861 From Your Computer

    Be sure to disconnect from the network and quit the AT&T USB Modem before you remove the device from your computer. The MF861 allows you to safely remove the device at any time when you are not connected to the network.

  • Page 7: Using Your Mf861

    Using Your MF861 This chapter describes the main features of the AT&T USB Modem configuration page for managing your MF861. AT&T USB Modem Configuration Page Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar to log in the AT&T USB Modem configuration page.

  • Page 8: Configure Data Network Options

    Configure Data Network Options You can set network mode, and choose whether to allow the MF861 to be used when roaming internationally, from the AT&T USB Modem configuration page. 1. Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar 2.

  • Page 9: Messages

    Messages You can view SMS messages on the AT&T USB Modem configuration page. To view or delete messages: 1. Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar 2. Select Messages on the navigation menu on the left side. A list of messages appears.

  • Page 10: View Details

    View Details You can view details about your device such as the wireless number, hardware version, and IMEI on the AT&T USB Modem configuration page. 1. Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar 2. Select About on the navigation menu on the left side.

  • Page 11: Reset The Mf861

    Reset the MF861 You can reset the MF861 to the factory setting on the AT&T USB Modem configuration page. NOTE: If you reset the modem to factory settings, all of your customizations will be lost. 1. Launch the Internet browser and enter http://192.168.1.1 or http://attusbmodem/ in the address bar 2.

  • Page 12: Advanced Settings

    Configure APN details The APN is checked to determine the type of network connection to establish. Your MF861 comes preconfigured with the APN (Access Point Name) for AT&T. To add an APN for another network: 1. On the AT&T USB Modem configuration page.

  • Page 13: Enable Mac/ Ip/Port Filtering

    · None (default) · CHAP · PAP 9. Enter the Username and Password. 10. Click Set Default . To select the APN entry to use: 1. From the drop-down box beside Profile Selection, select the desired APN to use. 2. Click Set Default. To remove an APN entry: Select the APN you want to remove, and click Delete.
  • Page 14 4. Enable MAC/IP/Port Filtering and select default policy. 5. Click Apply. 6. Check the applications you allow to access the Internet and click Apply. Or click Add Custom Application to add application and the filter settings will appear as shown below. •...

  • Page 15: Enable Dmz

    To add a new Port filtering rule: Input the detail information in the MAC/IP/Port Filtering Settings area and click Apply to save the rule. To delete a Port filtering rule: Select a rule in Current MAC/IP/Port filtering rules in system area and click Delete >...

  • Page 16: Configure Sim Pin

    Configure SIM PIN Enable SIM PIN: 1. On the AT&T USB Modem configuration page. 2. Click Settings > Advanced > SIM PIN. 3. Click Enable next to PIN Status. Verifying the PIN Code: If the PIN code of your nano-SIM card is enabled, you will need to input the PIN code when you log in at the first time.

  • Page 17: Replace The Nano-Sim Card

    Replace the nano-SIM Card Your MF861 comes with the nano-SIM card inserted. If you need to replace the nano-SIM card: 1. Open the front cover and remove it. 2. Remove the existing nano-SIM card (if present 3. Install the nano-SIM card to the nano-SIM card slot.

  • Page 18: Warning And Notice

    non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider. 4. Replace the front cover. Warning and Notice To the Owner If inadequately shielded, some electronic devices may be affected by the ...

  • Page 19: Using Your Usb Modem

    away from such medical instruments when your modem is turned on. Turn the modem off if necessary. Consult a physician or the manufacturers of medical instruments before using the modem if necessary. Be aware of the usage limitation when using the modem at places such as oil ...

  • Page 20: Specifications

    Avoid using the modem near or inside metallic structures or establishments  that can emit electromagnetic waves, because signal reception may be affected. The modem is not waterproof. Keep the modem dry and store it in a shady  and cool place. Do not use the modem immediately after a sudden temperature change.

  • Page 21: Regulatory And Safety Information

    Band 4+Band 12 / Band 2+Band 5 / Band 4+Band 5 HSPA 2100/850/900/1900 Regulatory and Safety Information To the Owner • Operating your device may interfere with medical devices such as hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are powered on.

  • Page 22: Using Your Device

    Using Your Device • Please use original accessories or accessories that are authorized. Using any unauthorized accessories may affect your device’s performance, and violate related national regulations about telecom terminals. • Avoid using your device near or inside metallic structures or establishments that can emit electromagnetic waves.
  • Page 23 This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.

  • Page 24: Fcc Compliance

    Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-MF861 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 25: Warranty

    Warranty Consumer Limited Warranty ZTE (“Seller”) offers you a limited warranty that the enclosed product or products (the “Product”) will be free from defects in material and workmanship for a period that expires one year from the date of sale of the Product to you, provided that you are the original end-user purchaser of the Product and provided that your purchase was made from a supplier authorized by the Seller.
  • Page 26 Seller will, at its sole and absolute discretion, either repair or replace a Product (which unit may use refurbished parts of similar quality and functionality) if found by Seller to be defective in material or workmanship, or if Seller determines that it is unable to repair or replace such Product, Seller will refund the purchase price for such Product, provided that the subject Product (i) is returned to a Seller authorized service center within the one year warranty period, and (ii) is...
  • Page 27 installation, removal or reinstallation; (vii) signal reception problems (unless caused by defects in material and workmanship); (viii) damage the result of fire, flood, acts of God or other acts which are not the fault of Seller and which the Product is not specified to tolerate, including damage caused by mishandling, shipping and blown fuses;...
  • Page 28 A PRODUCT. REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR REFUND OF THE PURCHASE PRICE RELATING TO A DEFECTIVE PRODUCT, AS PROVIDED UNDER THIS WARRANTY, ARE YOUR SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF THE LIMITED WARRANTY, AND SUBJECT TO THIS WARRANTY, THE PRODUCTS ARE APPROVED AND ACCEPTED BY YOU “AS IS”.
  • Page 29 1-800-617-5065. IMPORTANT: Please provide warranty information (proof of purchase) to ZTE in order to receive warranty service at no charge. If the warranty has expired on the device, charges may apply.
