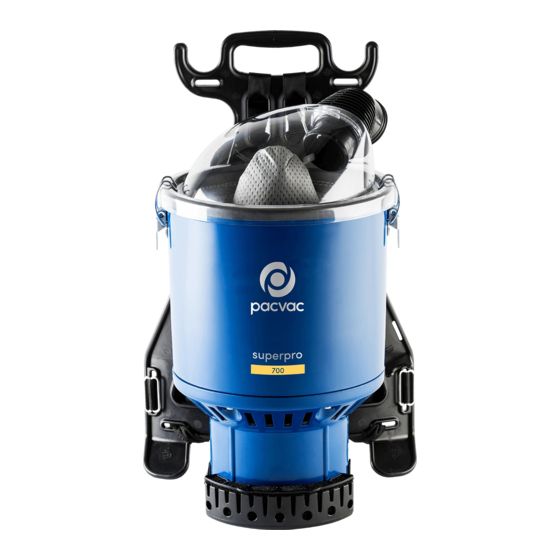

Pacvac Superpro battery 700 Product & Training Manual

Commercial battery operated back pack vacuum cleaner

Hide thumbs Also See for Superpro battery 700:

Product & training manual (80 pages)

Product & training manual (15 pages)

Product & training manual (10 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Superpro battery 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pacvac Superpro battery 700

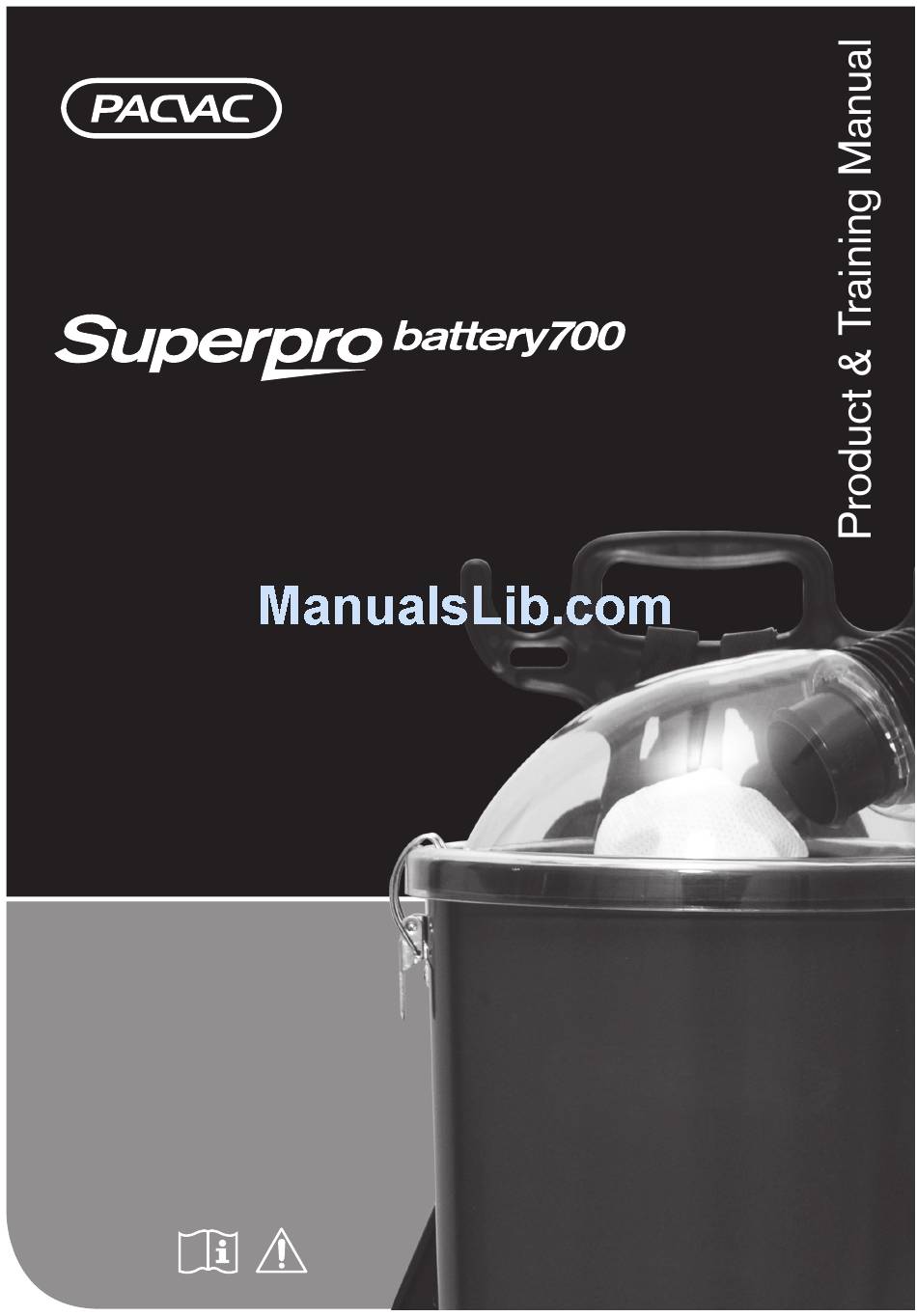

Page 1 Commercial Battery Operated Back Pack Vacuum Cleaner Support: +618 9479 1444 www.pacvac.com Read the instruction manual before using the machine. Retain for future reference. Original Instructions...
Page 2: Table Of Contents
This manual applies to the Superpro battery 700 and should be read in conjunction with the most recent version of the Battery/Charger Product & Training Manual. Contents Warranty Page 1 General Safety Instructions Page 2 Product Specific Safety Instructions (Machine)
Page 3: Warranty
• To make a claim under warranty, take the product with proof of purchase to the place of purchase. In the event the place of purchase does not satisfactorily rectify the matter, please contact Pacvac using the contact details above.
Page 4: General Safety Instructions
Do not vacuum anything that is burning or left outdoors or has been exposed to liquids, smoking such as cigarettes or hot ashes. return it to an Authorised Pacvac Service Do not vacuum up hard or sharp objects such Centre for a safety check.
Page 5: Operating Instructions (Installing Battery Pack)
3. Ensure it is securely bound in position with velcro strap. 4. Insert battery connector to vacuum unit socket. Turn connector clockwise to lock. 4. Detach velcro strap from vacuum unit. 5. Remove battery pack from battery pouch. Support: +618 9479 1444 www.pacvac.com...
Page 6: Symbol Definitions
Symbol Definitions RETAIN THESE SAFETY INSTRUCTIONS FOR FURTHER USE. Patents AU Registered Design 326911 Meaning of crossed–out wheeled dustbin EP Registered Design 001617051-0001 with line: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for more infomation.
Page 7: Safety And Maintenance Checks
If found do not use. Check the floor tool, wand, bent hand piece and hose for any obstructions. WEEKLY Remove and clean external motor filter. NOTE: Any other servicing should be performed by an authorised technician. Support: +618 9479 1444 www.pacvac.com REV: JUN 10...
Page 8: Wear Right
• Adjust position and connect chest strap to secure back pack. Step 4: • Make sure the harness is resting on your hips. IMPORTANT TIP: If the back pack feels heavy or uncomfortable, it is likely you are not wearing it correctly. Contact Pacvac for further advice.
Page 9: Work Right
• Work to the plan - long strokes for the detail clean area and short dabs for the spot cleans. Ribs Light Traffic - Spot Clean Fish Head Start Spine Heavy Traffic Areas - Tail Turn Around Detail Clean Support: +618 9479 1444 www.pacvac.com...
Page 10: Operate Right
Operate Right How to vacuum easier and faster with no back strain. Stand upright, with the bent hand piece section parallel to the floor. Hold the bent hand piece with one hand at a comfortable arm’s length. Use easy underarm swinging motion when detail cleaning and short dabs when spot cleaning, always standing upright.
Page 11: Troubleshooting Guide
Ensure dust bag is clean. After temperature. 30 minutes the machine should be ready for use. If not, contact a Pacvac Authorised Service Centre. Back Pack has no/poor suction Dust bag full. Remove, empty and clean dust bag.
Page 12: Superpro Battery 700 Parts Profile
Parts Profile Product Number: 201303-001A...
Page 13: Superpro Battery 700 Specifications
Filtration: 4 stage Airflow Volume: 29 litres per sec Tank Capacity: 5 litres Weight: 6.2kgs (with battery pack, excluding hose) Vibration Level: <2.5m/s² Technical specifications, part numbers and parts profiles are subject to change without notice. Support: +618 9479 1444 www.pacvac.com...
Page 14: Superpro Battery 700 Series Harness And Accessories Parts Profile
Harness and Accessories Parts Profile...
Page 15 Crevice tool 32mm KC911 10. Combination floor tool with wheels 32mm x 285mm UA908W 11. Dusting brush 32mm KC910 12. Upholstery tool 32mm KC912 Technical specifications, part numbers and parts profiles are subject to change without notice. Support: +618 9479 1444 www.pacvac.com...
Page 16 Service & Help For service and help contact Pacvac on +618 9479 1444 or email support@pacvac.com Alternatively visit our website at www.pacvac.com for a list of your nearest Retailers and Service Centres. Revised: May 2015 700B-M-150512...
