Valcom V-1048C-45 Instruction Manual page 2

Dimensions & Weight
•
7.38" H x 10.0"W x 10.4"D
(18.75cm H x 25.4cm W x 26.4cm D)
•
3.4 lbs. (1.54kg)
Environment
Temperature:
Humidity:
Limitations
•
Two talkback speakers maximum per zone.
•
800 feet maximum cable length to speaker
NOTE: Do not split pairs to speakers.
•
Do not use talkback in noisy areas (80 db or
greater).
Coverage
The distance you can be away from a speaker and still
have good talkback depends on the type of speaker
and ambient noise level.
The speaker should be as close as possible to the area
where talkback is desired. It should not be mounted
close to, or pointed at, noise producing equipment
such as fans, air conditioners, machinery, or
compressors.
The chart below shows maximum talkback distances
relative to the noise level of the surroundings.
TYPICAL REPLY DISTANCE CHART
Machine
Shop
90
(Noisy)
Talkback not recommended above 80dB
80
Shipping
70
(Moderate)
60
Waiting
50
Rooms
(Quiet)
10'
Remember: The speaker is no better than
your ears. If you can not carry on a
conversation at normal voice levels over the
required talkback distance, then talkback
page equipment will not function
satisfactorily.
INSTALLATION
Cabling
Connections should be accomplished using regular
twisted pair wiring. Do not split pairs.
o
-20 to +55 C
0-95% non-precipitating
20' 30' 40' 50'
Maximum Talkback Reply Distance

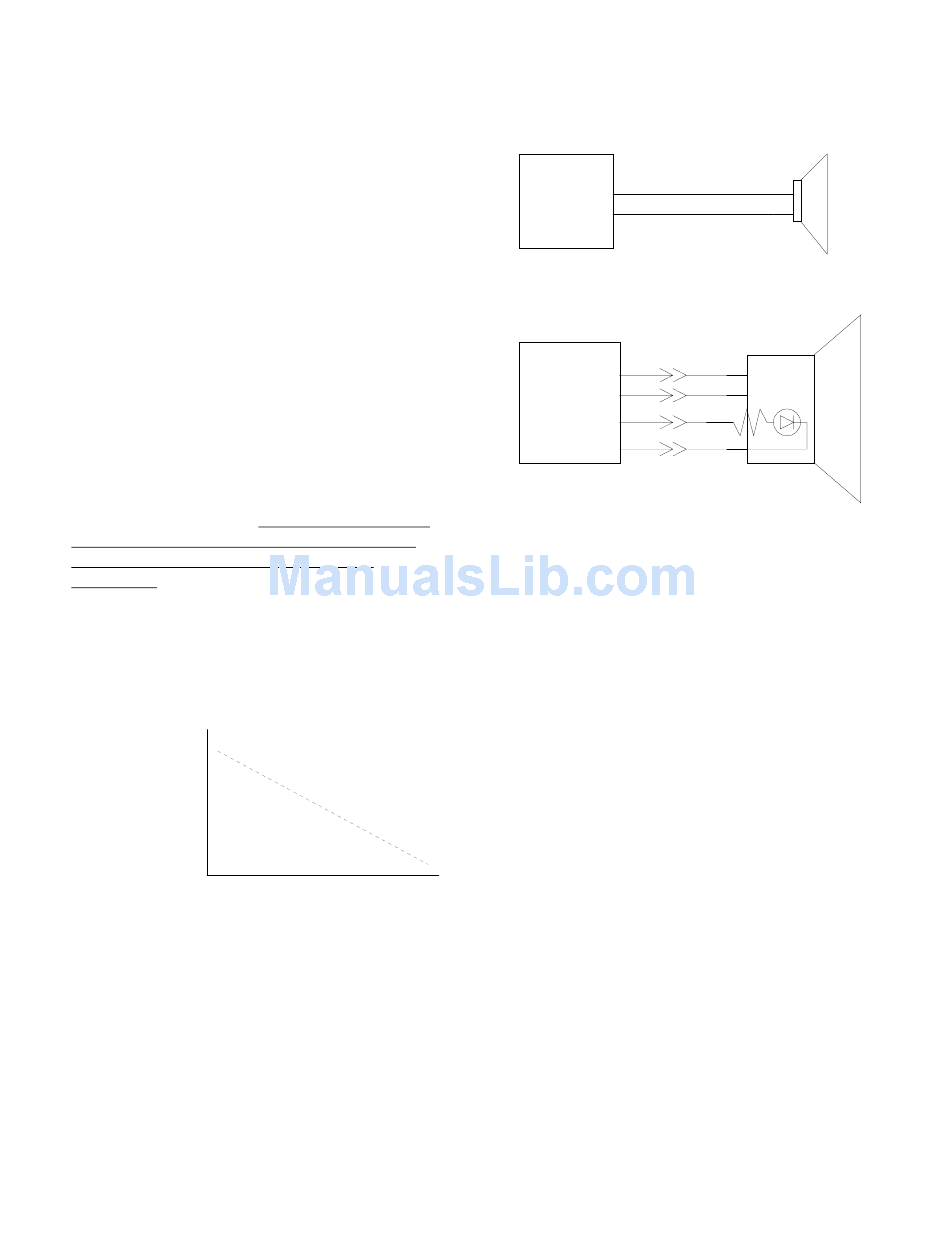

Connections
Connect station or other suitable wire to leads as
follows:
VALCOM
PAGE
CONTROL
UNIT
VALCOM
PAGE
CONTROL
UNIT
*
* This is switched battery supplied by page control unit
Attaching Speaker to Base
NOTE: For ease of installation, the base can be
attached to the speaker before or after the base is
mounted.
•
Loosen position adjustment knob.
•
Insert the ball of the base into the socket of the
speaker.
•
Tighten the position adjustment knob.
Mounting
Mount the horn to a suitable surface using the
hardware provided. These units can be mounted to a
wall, a beam, or an electrical box.
•
Mount the base to a wall using the two holes
provided. Knockout holes are provided for
punch out should additional holes be desired.
•
A "C" clamp is provided with the horns to allow
mounting to a beam. Place the bolt through the
hole in the bottom of the base to secure the "C"
clamp to the beam (See Figure 1). It is suggested
that the horn be mounted to the underside of the
"I" beam to provide maximum positioning
adjustments.
2
Connections to
a V-1048C
Tip
Out White
Ring
Common
Black
Connections to a
V-1048B
T
Green
R
Red
+
Black
White
-
947049
