2. For Shielded Metal Arc Welding (SMAW) and Air
Carbon Arc Cutting and Gouging (CAC-A) (Elec-
trode Positive/Reverse Polarity), connect weld
cables as follows:
a. Connect one end of work cable to NEGATIVE
(−) weld output terminal.
b. Connect end of electrode holder cable to POSI-
TIVE (+) weld output terminal.
IMPORTANT: For Electrode Negative/Straight Polarity
connections, reverse cable connections to weld output
terminals; electrode becomes negative.
3. For Wire Feeding Processes (GMAW, FCAW,
SAW) (Electrode Positive/Reverse Polarity),
connect weld cables as follows:
a. Connect one end of work cable to NEGATIVE
(−) weld output terminal.
b. Connect end of electrode holder cable to POSI-
TIVE (+) weld output terminal and remaining
end to terminal on the wire feeder drive housing
(see wire feeder Owner's Manual for location).
4. Close and secure front panel access door.
Circuit Breaker CB3
Remote 9
Receptacle
Oil Level
Indicator

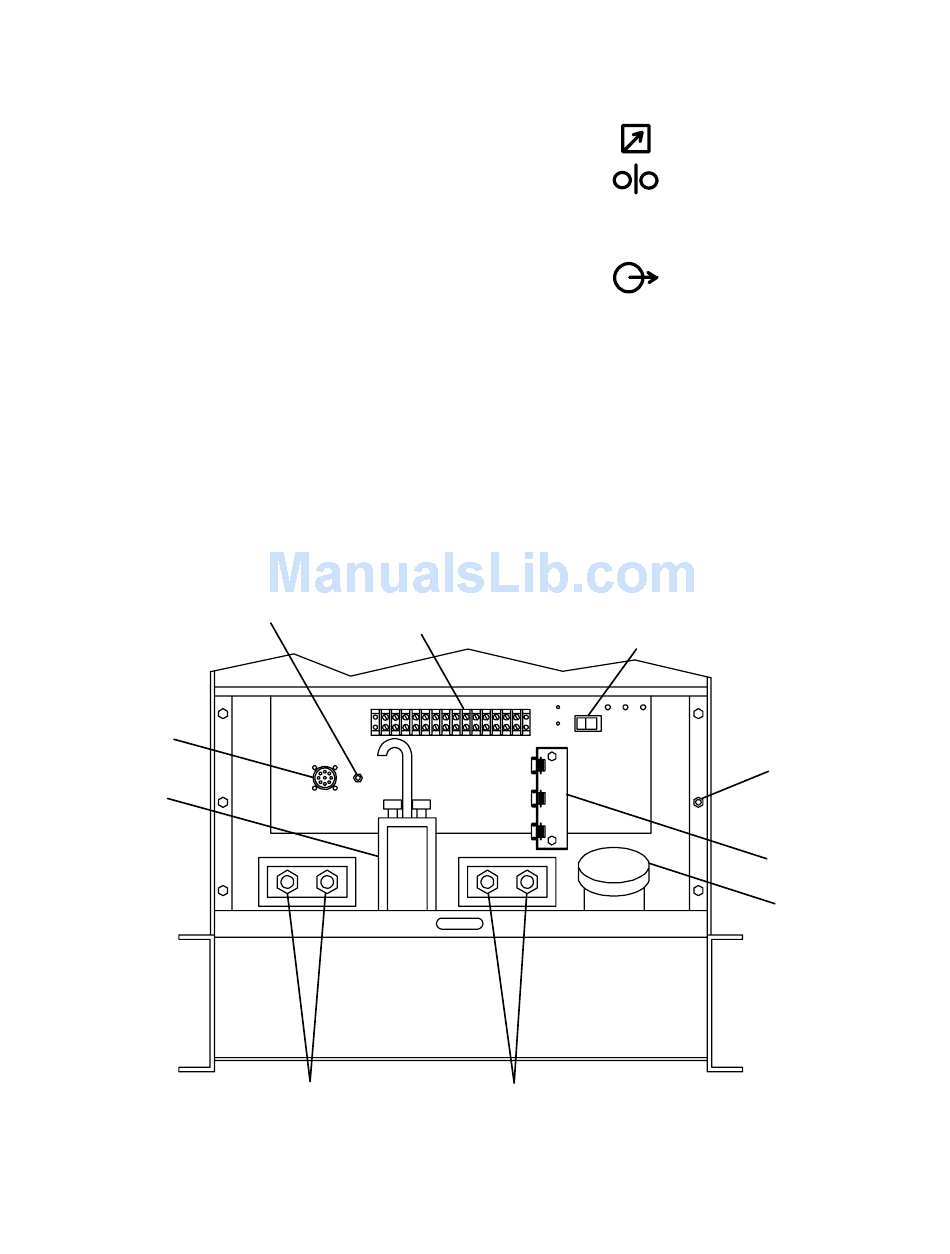

Figure 4-2. Lower Front Panel Components And Connections
OM-166 941 Page 12
Terminal
Strip 3T
POSITIVE (+)
Weld Output
Terminals
4-8.

REMOTE CONTROL CONNECTIONS

A. Remote 9 Receptacle
Connections (Figures 4-2 And 4-3)
A/V
REMOTE 9 receptacle RC3, located under the lower
front panel access door (see Figure 4-2), is provided to
connect any of the following equipment to the welding
generator circuitry:
a. Remote Contactor
b. Remote Amperage or Voltage control
c. Wire feeder which provides contactor control to
the welding generator.
d. Combination of the above.
To Make connections, align keyway, insert plug, and ro-
tate threaded collar fully clockwise.
Circuit Breaker CB1
(see Section 9-3)
NEGATIVE (−)
Weld Output
Terminals
Information
REMOTE 9
FEEDER
AMPERAGE/
VOLTAGE
OUTPUT
(CONTACTOR)
Equipment
Grounding
Terminal
Strain Relief
Fuel Cap
Ref. ST-147 322-E
