SECTION 3 − OPERATING INSTRUCTIONS

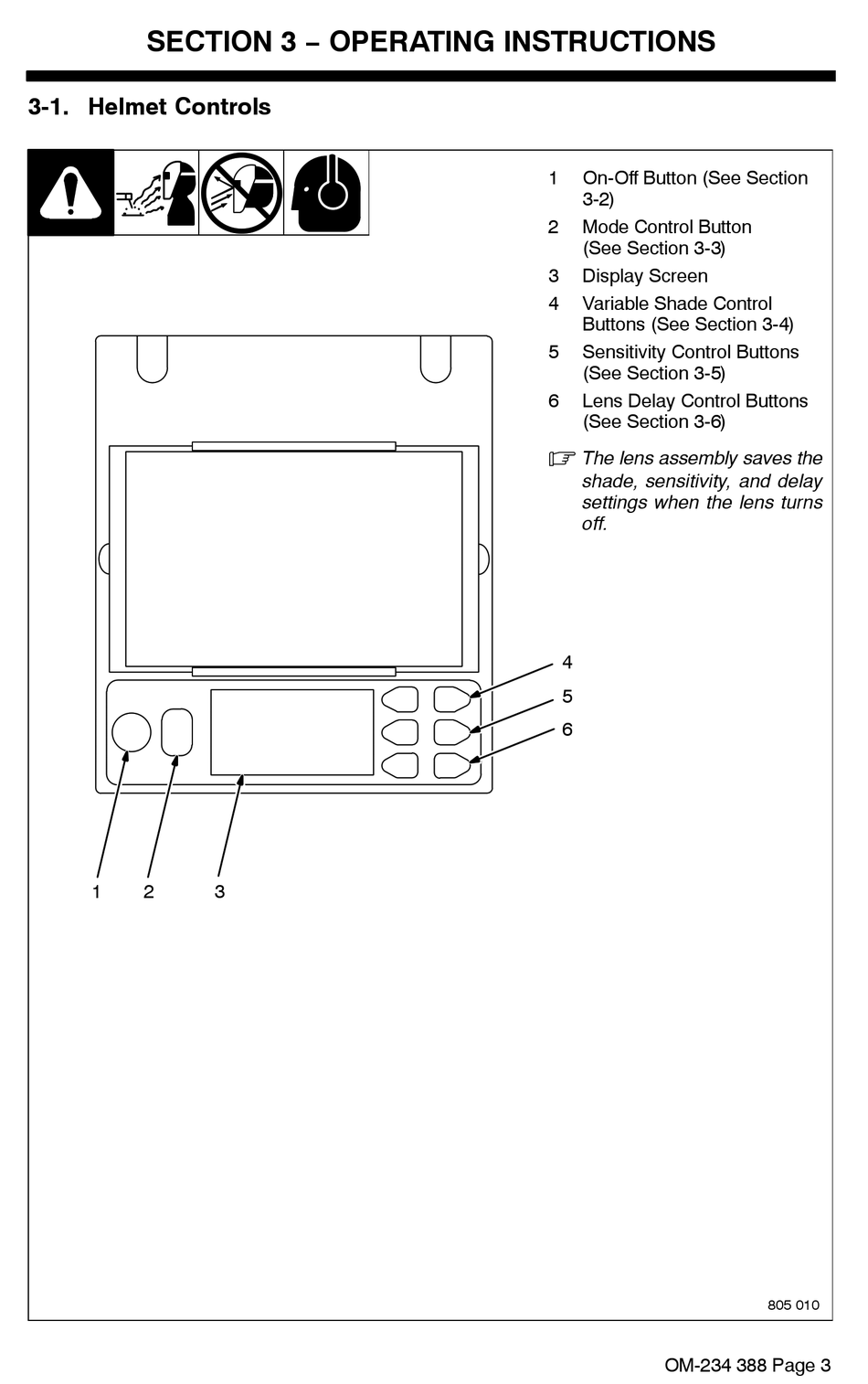

3-1. Helmet Controls

1 2 3
1 On-Off Button (See Section
3-2)
2 Mode Control Button
(See Section 3-3)
3 Display Screen
4 Variable Shade Control
Buttons (See Section 3-4)
5 Sensitivity Control Buttons
(See Section 3-5)
6 Lens Delay Control Buttons
(See Section 3-6)
.
The lens assembly saves the
shade, sensitivity, and delay
settings when the lens turns
off.
4
5
6
OM-234 388 Page 3
805 010
