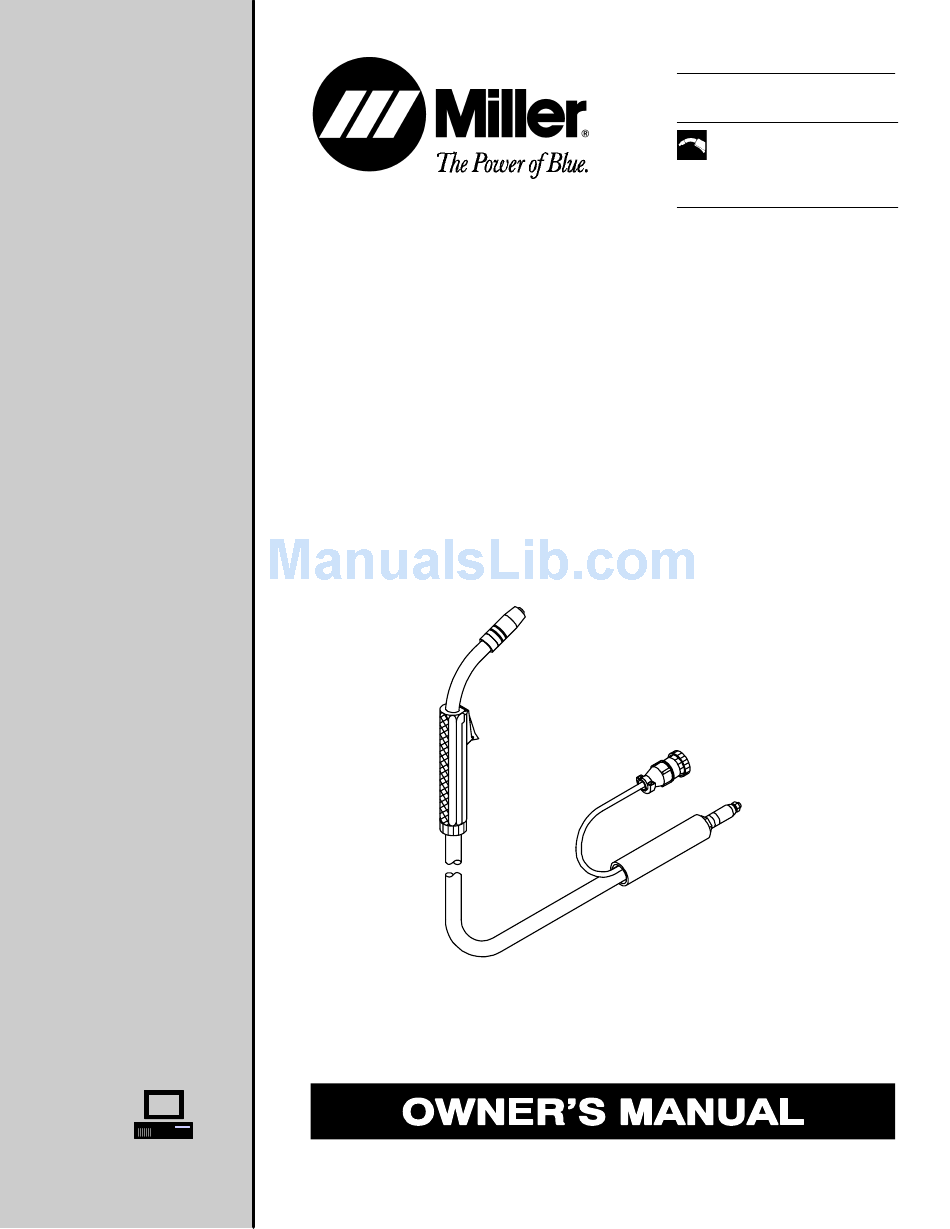

- Page 1 GA-16C And GA-16C1 Visit our website at www.MillerWelds.com OM-1027 110 727A August 1994 Processes MIG (GMAW) Welding Flux Cored (FCAW) Welding Description Air-Cooled Gun...
- Page 2 ISO 9001 Quality System Standard. service information for your particular model are also provided. Miller Electric manufactures a full line of welders and welding related equipment. For information on other quality Miller products, contact your local Miller distributor to receive the latest full line catalog or individual catalog sheets.
-
Page 3: Emf Information
SAFETY PRECAUTIONS FOR GMAW GUNS WARNING PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS KEEP AWAY UNTIL CONSULTING YOUR DOCTOR. In welding, as in most jobs, exposure to certain hazards occurs. Welding is safe when precautions are taken. The safety information given below is only a summary of the more complete safety information found in the wire feeder and welding power source Owner’s Manuals. -
Page 5: Section 1 - Safety Information
SECTION 1 – SAFETY INFORMATION Read all safety messages throughout this manual. Obey all safety messages to avoid injury. Learn the meaning of WARNING and CAUTION. WARNING ELECTRIC SHOCK can kill. Do not touch live electrical parts. Disconnect input power before installing or servicing. -
Page 6: Section 3 - Installation
SECTION 3 – INSTALLATION 3-1. Preparing And Installing Gun SECTION 4 – OPERATION WARNING 4-1. Operating The Gun OM-1027 Page 2 GA-16C Model GA-16C1 Model Figure 3-1. Installing Gun READ SAFETY BLOCKS at beginning of manual before proceeding. Figure 4-1. Using Gun Switch... -
Page 7: Section 5 - Maintenance & Troubleshooting
SECTION 5 – MAINTENANCE & TROUBLESHOOTING WARNING 5-1. Maintenance And Troubleshooting Turn Off all power before maintaining. Trouble Wire does not feed. Wire is not energized. Wire feeds unevenly. 5-2. Changing Contact Tip And Liner Tools Needed: READ SAFETY BLOCKS at beginning of manual before proceeding. - Page 8 CAUTION FLYING METAL CHIPS AND DIRT can cause injury and damage equipment. Point gun away from people and in a safe direction when blowing out with compressed air. Turn off welding power source/wire feeder. Head Tube OM-1027 Page 4 3/8 in Remove nozzle, contact tip, and liner collet.
-
Page 9: Section 6 - Parts List
SECTION 6 – PARTS LIST Item Part Figure 6-1. Complete Assembly (GA-16C Gun Illustrated) ... . . 110 793 HANDLE ASSEMBLY ... . . - Page 10 Notes...
- Page 11 Warranty Questions? Call LIMITED WARRANTY – Subject to the terms and conditions below, Miller Electric Mfg. Co., Appleton, Wisconsin, warrants 1-800-4-A-MILLER to its original retail purchaser that new Miller equipment sold for your local after the effective date of this limited warranty is free of defects in material and workmanship at the time it is shipped by Miller.
-
Page 12: Owner's Record
Parts) Circuit Diagrams Welding Process Handbooks File a claim for loss or damage during shipment. 2000 Miller Electric Mfg. Co. 6/00 Miller Electric Mfg. Co. An Illinois Tool Works Company 1635 West Spencer Street Appleton, WI 54914 USA International Headquarters–USA USA Phone: 920-735-4505 Auto-Attended USA &...
