- Page 1 USER MANUAL FOUR CHANNEL POWER AMPLIFIER 3G Audio 3G Audio PROTECT CLIP 4-Channel Power Amplifier SIGNAL ACTIVE SW-VOL L-VOL R-VOL C-VOL AK800 1X500W+3X150W POWER AK800 3G Audio 3G Audio P O W E R A M P L I F I E R...
-
Page 2: Specifications
FOUR CHANNEL POWER AMPLIFIERS SPECIFICATIONS A V I S CAUTION RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE DO NOT OPEN N OUVREZ PAS A PREVENIR LE CHOC TO PREVENT ELECTRIC SHOCK DO ELECTRIQUE LE N'ENLEVEZ NOT REMOVE TOP OR BOTTOM PASLES COUVERTURES. -
Page 3: Power Supply
The red binding posts are considered as hot , connecting to the positive poles of loudspeakers, the black binding posts connecting to the negative poles of loudspeakers. 5. Power Supply Make sure power capacity of power outlet is correct. The AK800 amplifier power requirement is: 220V/AC, 12A FUSE. 6.Volume control There are 4 hidden volume controls for each channel respectively. -
Page 4: Protection Features
4)ACTIVE LED I ndicates active status. 8. Protection Features Each AK800 power amplifier incorporates several circuits to prevent itself and the loudspeakers connected from short circuit, DC voltage, and overheating damage. (1)Thermal Protection In the event of malfunction, a sensor located on the power outputs is able to break the circuit avoiding that current peaks reach the speakers and damage them. -
Page 5: Specification
FOUR CHANNEL POWER AMPLIFIER 11. Specifications SPECIFICATION Subwoofer Left Right Center channel channel channel channel Output power 500W 150W 150W 150W (0.1%THD, 8 , 1KHz sine wave) 20Hz-20KHz( 0.2dB) Frequency response Total harmonic distortion <0.08% <0.04% <0.04% <0.04% (10% Rated output power) Intermodulation distortion <0.5% <0.1%... -
Page 6: Front Panel

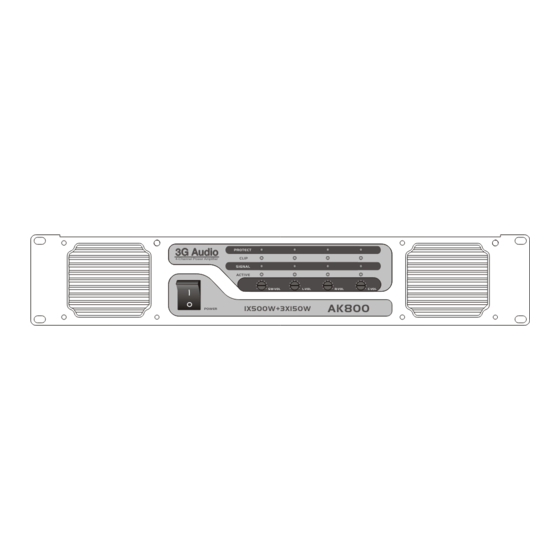

FOUR CHANNEL POWER AMPLIFIER [Front Panel] PROTECT CLIP SIGNAL ACTIVE SW-VOL L-VOL R-VOL C-VOL 1X500W+3X150W POWER 1. Air Vents 5. LEDs for Center channel. 2. LEDs for S ubwoofer channel. Protect/clip/signal/active Protect/clip/signal/active 6. Power switch LEDs for Left Channel. 7. Subwoofer channel volume control. Protect/clip/signal/active 8. -
Page 7: System Connection
SENSITIVITY LEVEL PRE-OUT AUX1 AUX2 SIGNAL IN EFFECT OUT REMOTE-IN VOLUME CENTER OUT RIGHT OUT LEFT OUT SUB OUT VOLUME A k 8 0 0 A k 8 0 0 record equipment or sound reinforcement equipment AK800 four channel amplifier... - Page 8 3G Audio 3G Audio K A R A O K E A M P L I F I E R...
