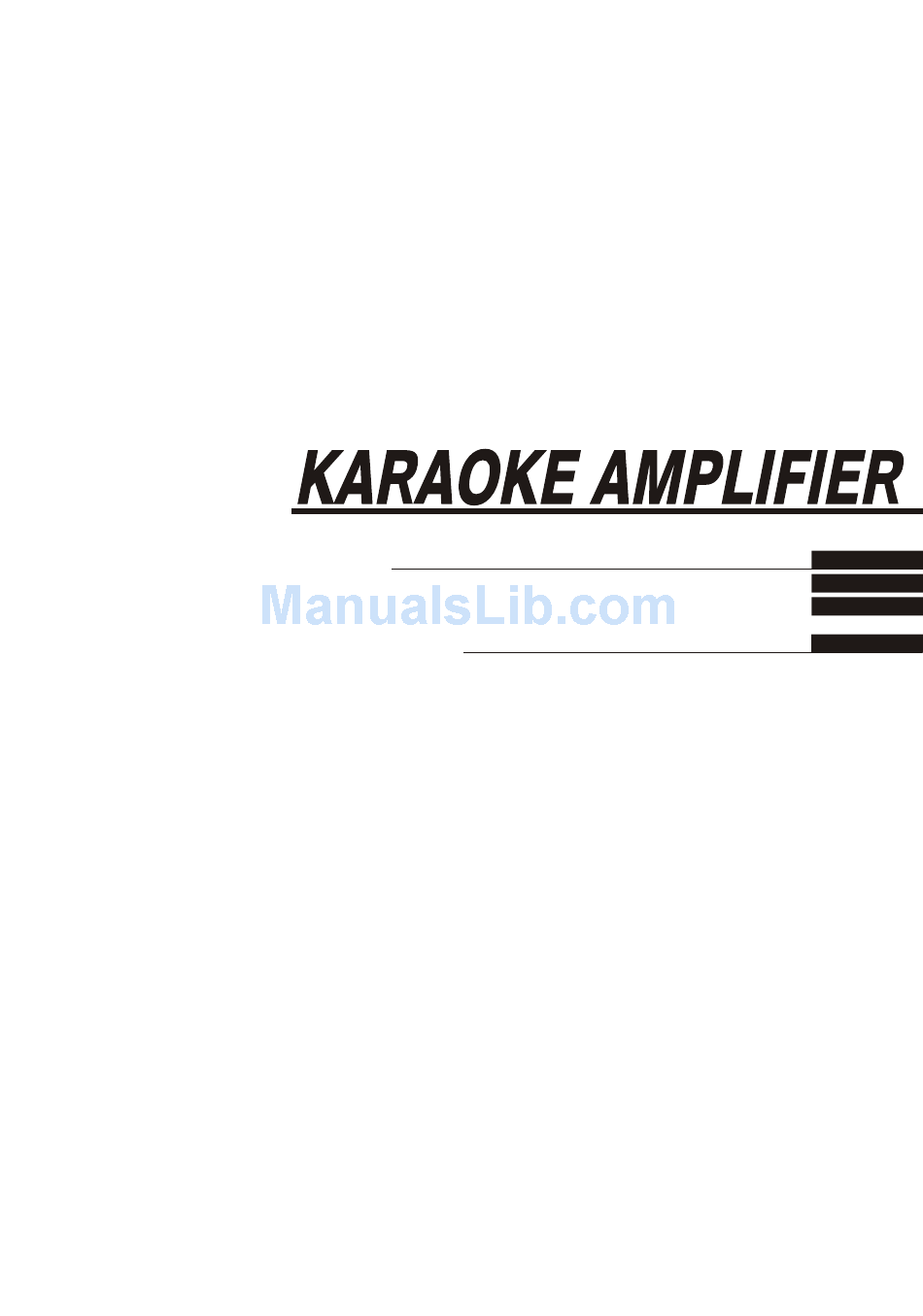

- Page 1 Audio E-2002-0801-01(1) AK-200 AK SERIES AK-300 AK-400 ENGLISH OWNER'S MANUAL AK-200 AK-300 AK-400 Printed in Hong Kong <AMP 0801-AK>...
- Page 2 ATTENTION TO MAKE SURE FULL AND EFFECTIVE USE OF IT, PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION. AND PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE. IT'S POSSIBLE THAT THE SHAPE OF THE PLUGS AND JACKS ARE DIFFERENT IN DIFFERENT COUNTRIES, BUT THE CONNECTION WAYS AND OPERATION FOR THIS UNIT ARE THE SAME.
-
Page 3: Table Of Contents
CONTENTS Voltage Input Features INTRODUCTION Signal Cords Front Panel(AK-200) Front Panel(AK-300/AK-400) Back Panel Before Connection INSTALLATION System Connection Safety Regulations ADDITIONAL INSTRUCTION Specification... -
Page 4: Voltage Input
VOLTAGE INPUT How to select right voltage input? There's a voltage selector on the back panel of this unit and voltage intensity of this unit has been set between 220V originally. Please check your local voltage intensity comply with this or not before operation. if not, you can select it between 110V by the voltage selector. -
Page 5: Features

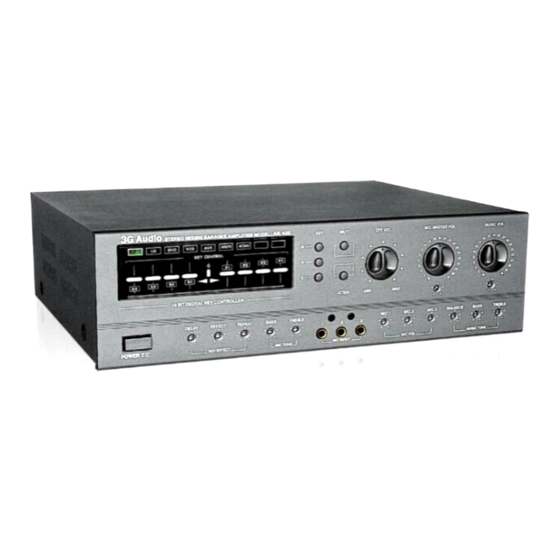

INTRODUCTOIN Please read this manual carefully before operation. And please save this manual for future reference. FEATURES Inhibiting whistle strongly. Multi-mode singing style. Special design for KTV room, high reliability. Able to connect two group speakers simultaneously. Special drive design of human voice to make voice rich and nature strong cooling fan makes sure long-term working. - Page 6 AK-200 FUNCTION INSTRUCTIONS (FRONT PANEL) HIDDEN LEVEL CONTROL MICROPHONE OUTPUT LEVEL CONTROL Adjusting volume of all microphones connected. ECHO CONTROL MUSIC VOLUME CONTROL Controlling echo of microphone input. ECHO VOL MIC MASTER VOL MUSIC VOL 3G Audio AK-200 STEREO DIGITAL KARAOKE AMPLIFIER...
- Page 7 AK-300/AK-400 FUNCTION INSTRUCTIONS (FRONT PANEL) MICROPHONE OUTPUT LEVEL CONTROL Adjusting volume of all microphones connected. ECHO CONTROL HIDDEN LEVEL CONTROL Controlling echo of microphone input. AUTO VOCAL FOLLOW MUSIC VOLUME CONTROL BACKGROUND VOCAL CANCEL PITCH CONTROL AK-300 STEREO MIXING KARAOKE AMPLIFIER: MUTI ECHO VOL MIC MASTER VOL...
-
Page 8: Back Panel
BACK PANEL 5A/220V FUSE HOLD 5A/220V AC EARTH CLAMP POWER CORD MICROPHONE BALANCE INPUT/OUTPUT(1/2) COOLING FAN REMOTE CONTROL SYSTEM/LINE CONTROL INPUT TERMINAL MIC 1 INPUT MIC 2 REMOTE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN FUSE VISUAL CAUTION VISUAL INPUT 110V THE POWER SUPPLY CORD... -
Page 9: Before Connection
CONNECTIONS BEFORE CONNECTION CONNECTION OF SPEAKER CORDS 1.Press down the button as illustration, insert the cords into the hole. 2.Spring of the button will fix the cords. Please select the suitable speaker cords and connect it through the shortest path. This unit could connect one or two group speakers simultaneously. -
Page 10: Safety Regulations
ADDITIONAL INSTRUCTION SAFETY REGULATIONS ABNORMAL PHENOMENA: Please turn off the power and pull out the plug when you find unusual sound or smell when operation. POWER CORDS PROTECTION Don't touch power cords with wet hands to avoid electric shock. Don't put the cords in crowded people. KEEP AWAY FROM WATER AND SUNDRY GOODS DON'T OPEN THE COVER IF NOT GUIDED BY A QUALIFIED ELECTRICIAN... -
Page 11: Specification
SPECIFICATIONS Cosmetic changes may be made Power Output(RMS) Power Supply AC 110V/220V,50Hz AK-200 180W+180W(8Ohm) Standard Power Supply AK-300 125W+125W(8Ohm) AC 220V/50Hz AK-400 180W+180W(8Ohm) THD 0.3% 20Hz-20KHz Power Consumption AK-200 600W Frequency Response 20Hz-20KHz AK-300 380W Input Sensitivity/Impedance AK-400 600W Microphone... - Page 12 3G Audio...
