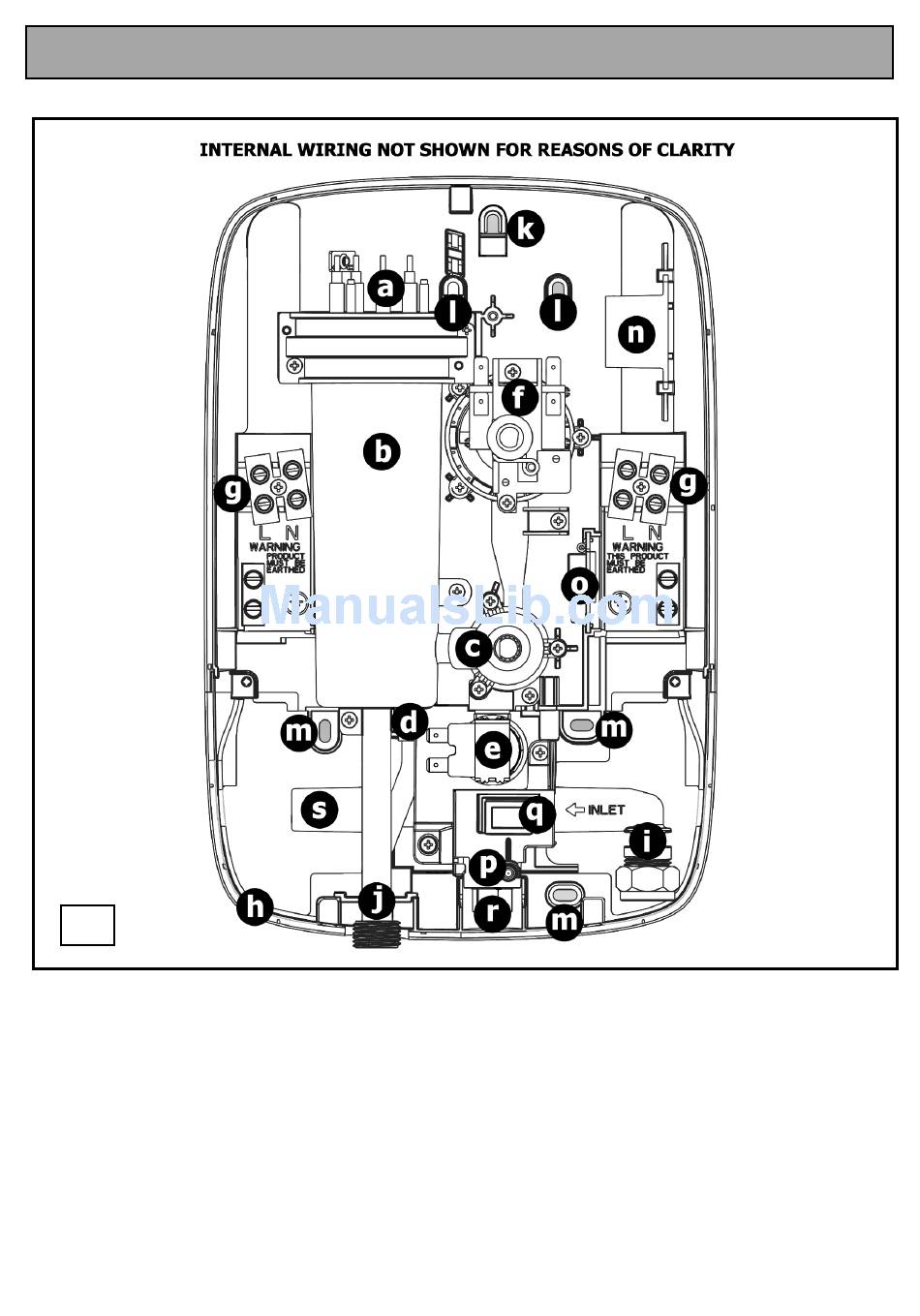

MAIN SHOWER COMPONENTS

19
a) Thermal Cut-Out
b) Heat Exchanger
c) Flow Valve
d) Pressure Relief Device
e) On/Off Solenoid Valve
f) Pressure Switch
g) Terminal Block x 2
h) Detachable Backplate Section
i) Water Inlet
j) Water Outlet
k) Wall Fixing Key-Hole Slot
l) Alternative key-Hole slot
m) Wall Fixing Slot
(Expressions Revive-Plus only)
n) Relay
(Expressions Revive-Plus only)
o) Timer PCB
p) Power on light
q) Start / Stop switch
r) Inlet filter
