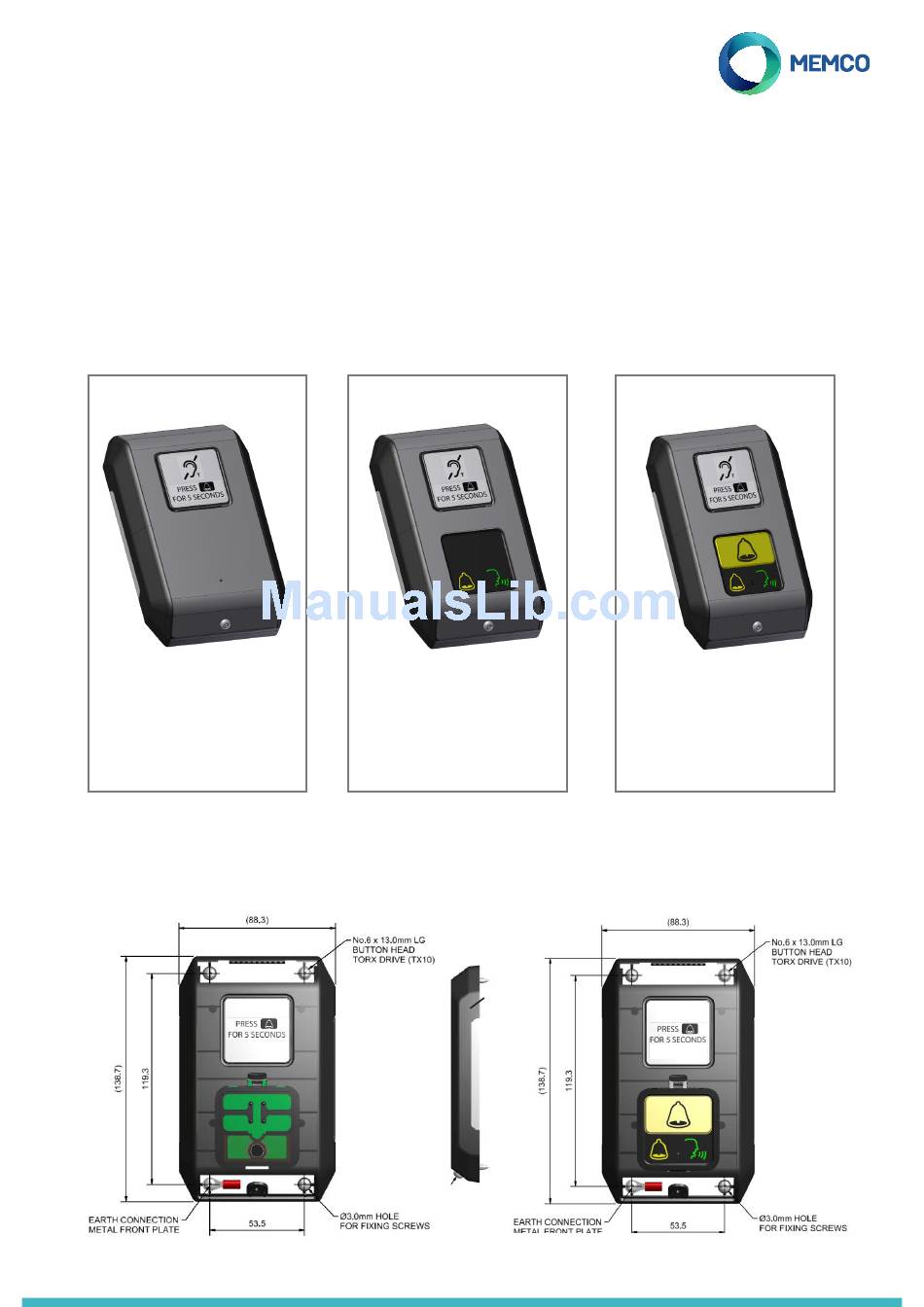

Surface Mount Variants 4, 5 & 6

Installation Guide

Ref No. C100 855 (GB) Version 2
The Memco C100 is a COP based emergency telephone system with integrated Inductive Loop. It has been designed to
provide quick and easy COP installation and is also the first emergency telephone that can be programmed at the touch
of a button, making the programming process quicker and easier than ever.

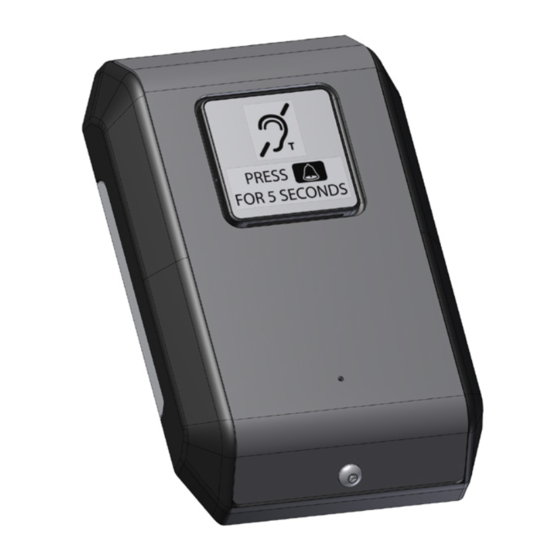

Model No. C100 SM4
The Surface Mount 4 variant
of the product can be surface
mounted on the COP and
has integrated speaker and
microphone.
Dimensions (mm)
SM4
®
C100
Model No. C100 SM5
The Surface Mount 5 variant
of the product can be surface
mounted on the COP and
has integrated speaker,
microphone and pictograms.
FIXING SCREW
FOR FRONT PLATE
Model No. C100 SM6
The Surface Mount 6 variant
of the product can be surface
mounted on the COP and
has integrated speaker,
microphone, pictograms and
alarm push button.
Dimensions (mm)
SM5 & SM6
EMERGENCY
LIGHTING
