Flush Mount 1, 2 and 3
Installation Guide
Ref No. C100 852(GB) Version 2
The Memco C100 is a COP based emergency telephone system. It has been designed to provide quick and easy COP
installation and is also the first emergency telephone that can be programmed at the touch of a button, making the
programming process quicker and easier than ever.
Model No. C100 FM1
This variant of the product can
be flush-mounted on the COP
and has integrated speaker and
microphone.

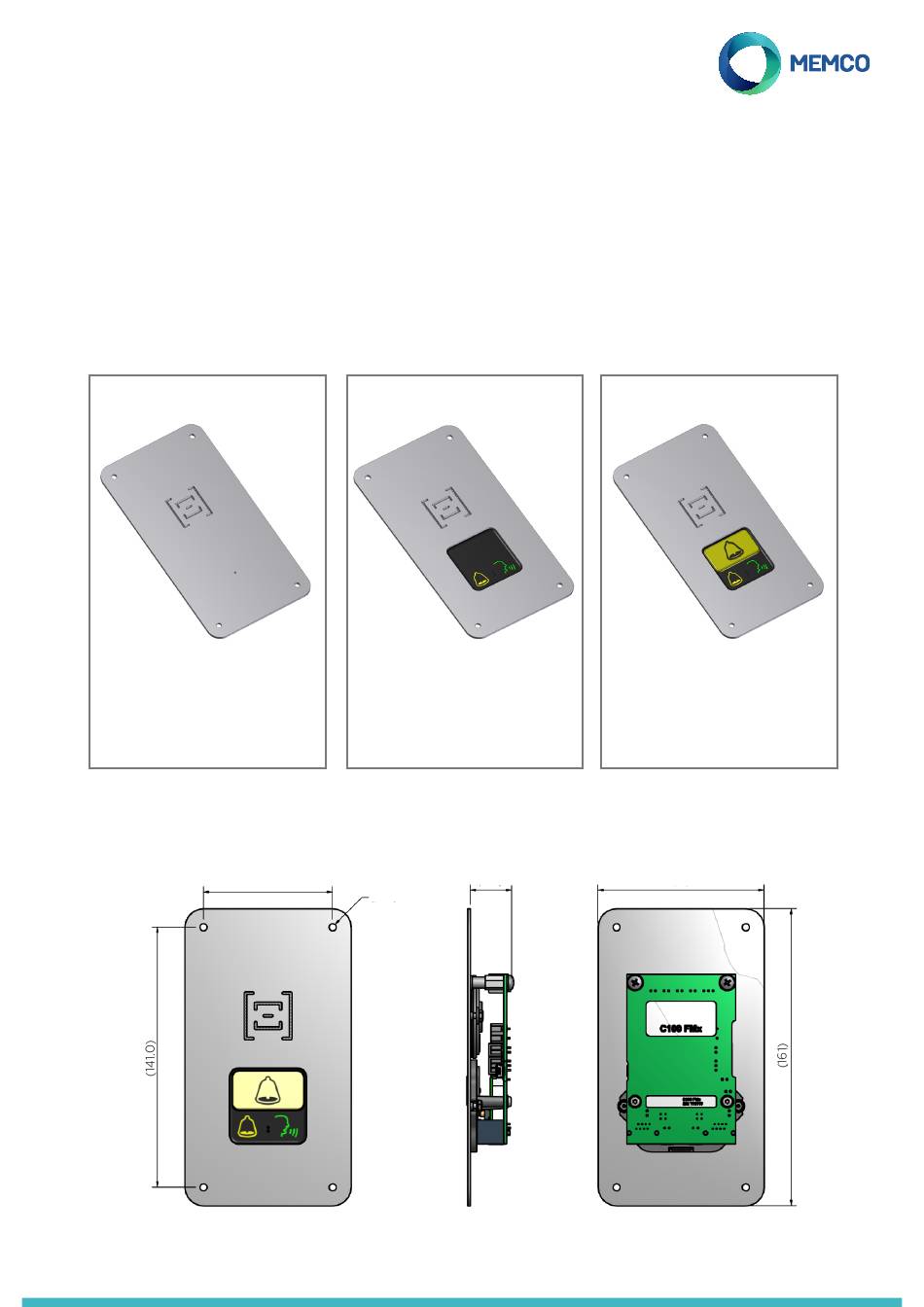

Dimensions (mm)
(70.0)
®
C100
Model No. C100 FM2
This variant of the product can
be flush-mounted on the COP
and has integrated speaker,
microphone and pictograms.
(22.4)
(Ø4.0)
Model No. C100 FM3
This variant of the product can
be flush-mounted on the COP
and has integrated speaker,
microphone, pictograms and
alarm push button.
(90)
Advertisement
Related Manuals for Memco C100 FM1
Summary of Contents for Memco C100 FM1
- Page 1 Ref No. C100 852(GB) Version 2 The Memco C100 is a COP based emergency telephone system. It has been designed to provide quick and easy COP installation and is also the first emergency telephone that can be programmed at the touch of a button, making the programming process quicker and easier than ever.
- Page 2 Connections to the Main Unit Please see details below of all connections available on the C100 Flush Mount 3 unit. All connections that have a specific polarity / require specific connections within the connector are explained in the zoomed in sections. Telephone line (PSTN /GSM) Serial (RS485) Inductive Loop...
-
Page 3: Programming Options
Fixing the unit to the COP Follow the simple steps below to install the surface mounted COP accessory on the COP. 1. Cut hole in COP to allow 2. Drill fixing holes 4. Fix unit in place with four space for PCB screws provided Programming Options One touch programming (programming tool) - Page 4 Scroll up Select the protocol required from the list which includes Guided, Unguided, Memco, P100, and Contact ID. If connecting to a hotline then no Scroll Down telephone number is required, and this will need to be programmed by ticking ‘Hotline’...
- Page 5 Scroll to the preferred protocol and press to confirm. When using HW Monitoring > ETR software or GlobalNet monitoring, select the protocol ‘Memco’. If connecting to a hotline then no telephone number is required, and this Delays > will need to be programmed by ticking ‘Hotline’ in Settings> Sys Config>...
- Page 6 Full Programming Options Full Menu Structure Menu Sections explained... Quickstart > Tel. Numbers > Delays Alarm No. 1 The delays can be set to alter the length of the delay before the Alarm No. 2 units places a call. Alarm No. 3 COP delays - Relates to how long alarm button need to be pressed Alarm No.
- Page 7 Next EN81 call Frequency PBX Language > Relay Mode > Relay Override > GMT Offset Avire Ltd Unit 1, The Switchback 01628 540100 Gardner Road 01628 621 947 Maidenhead sales.uk@avire-global.com Berkshire SL6 7RJ, UK www.memco-global.com Memco is a brand of Avire www.avire-global.com...
