G3X Emergency Telephone

Installation Guide

OCX SPEAKER (SPX OR EXT)
ONBOARD SPEAKER (SPK)
ALARM INPUT 1 (IN1)
ALARM INPUT 2 (IN2)

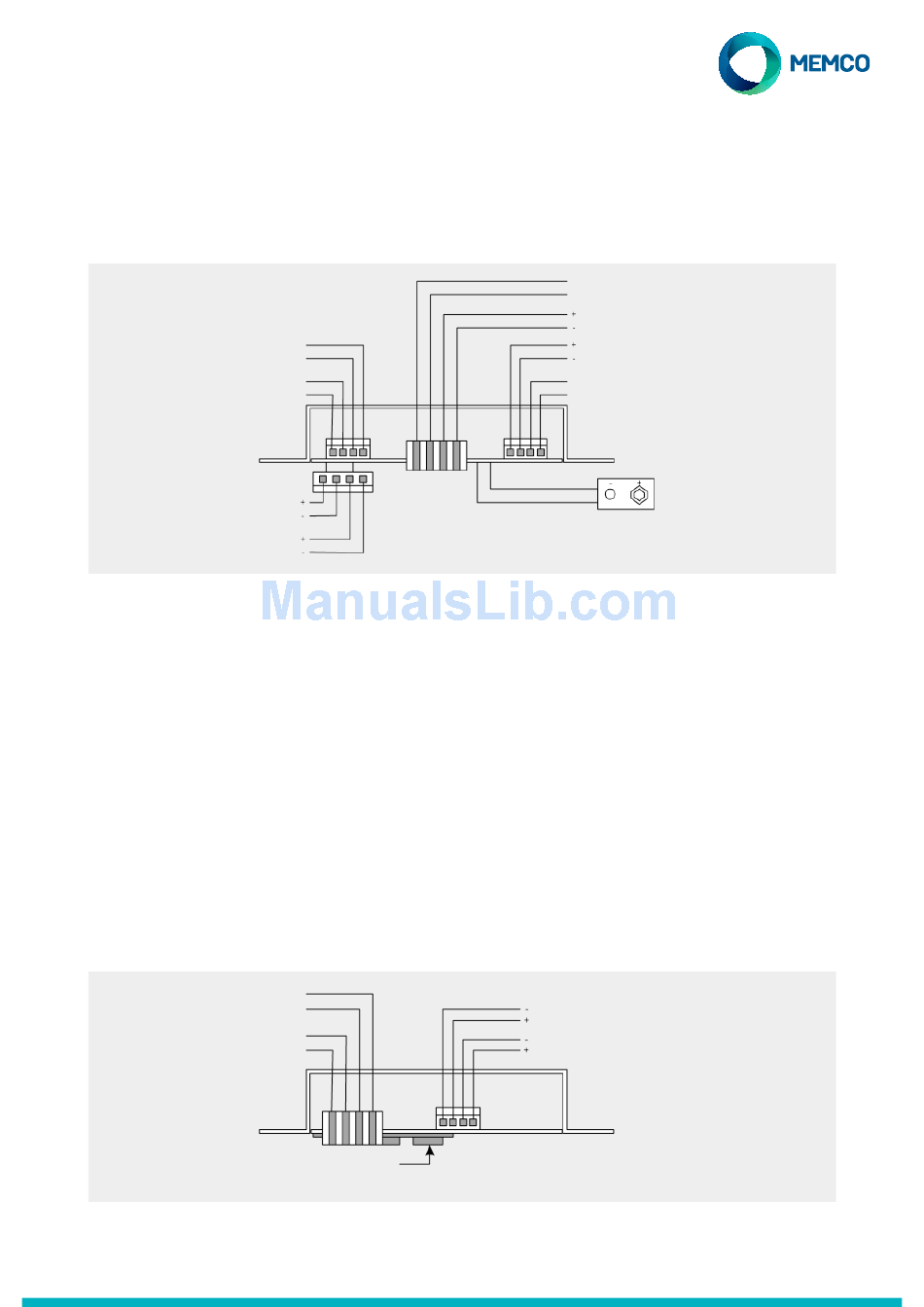

Connections on the top of the unit

Wiring

1.
Ensure on-board speaker is plugged into the 'SPK' connector
2.
Ensure jumper is plugged into the 'SPX' connector. (Note – this jumper is removed when an On-Car Extension (OCX) is
used. Please note that the G3X unit will work as a stand alone device, or with one OCX connected.
3.
Connect emergency button to the 'BUT' connector. (Note – Button has to be N/O)
4.
Connect phone line to the 'TEL' connector.
5.
For programming, connect 9V alkaline battery to battery clips. (Note - The G3X is powered from the telephone line and
works without a battery. The battery provided is intended for use only during the programming of the unit and should
be disconnected from the unit after programming has been completed.)
EMERGENCY BUTTON (BUT)
TELEPHONE LINE (TEL)
PROGRAMMING KEYPAD
Connections on the bottom of the unit
AUX
PWR (9-12V DC)
OCX MICROPHONE (MIC)
OCX BUTTON (BUT)
BATTERY CONNECTOR
CALL IN PROGRESS LED (LED1)
CALL ACKNOWLEDGED (LED2)
