Memco
Base 4 variant
Installation Guide
Ref No. C100 858 (GB) Version 4
The Memco C100 is a COP based emergency telephone system. It has been designed to provide quick and easy COP
installation and is also the first emergency telephone that can be programmed at the touch of a button, making the
programming process quicker and easier than ever.

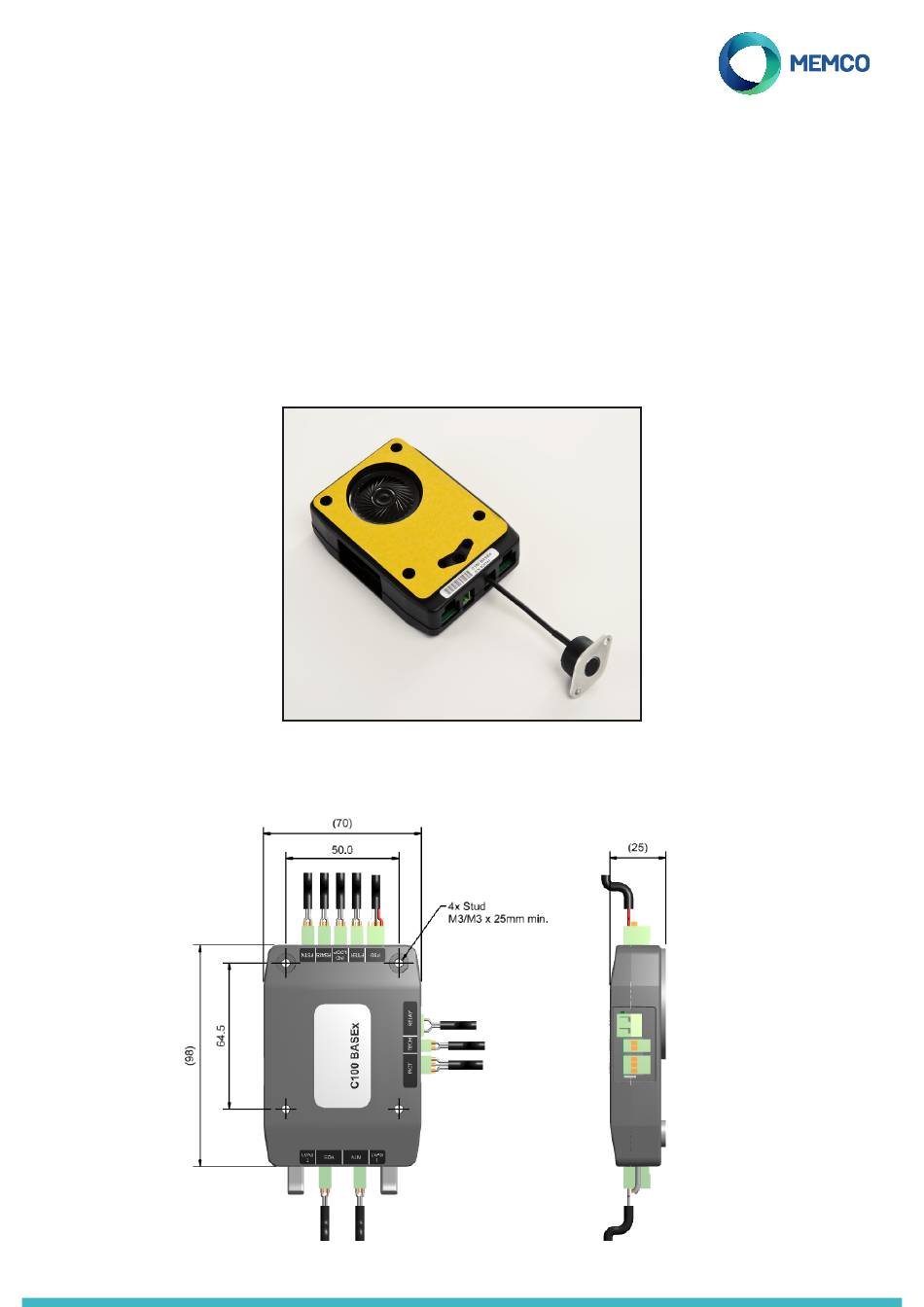

Dimensions (mm)
®
C100
Model No. C100 BASE4
This Base 4 variant of the product can be installed
behind the COP and has an integrated relay, LED
indicators, inductive loop, and an external microphone.

Advertisement

loading
Need help?

Need help?

Do you have a question about the C100 Base 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Memco C100 Base 4

Summary of Contents for Memco C100 Base 4

  • Page 1 Ref No. C100 858 (GB) Version 4 The Memco C100 is a COP based emergency telephone system. It has been designed to provide quick and easy COP installation and is also the first emergency telephone that can be programmed at the touch of a button, making the programming process quicker and easier than ever.
  • Page 2 Connections to the Main Unit Please see details below of all connections available on the C100 BASE4. All connections that have a specific polarity, and require specific connections within the connector, are explained in the zoomed-in sections. Telephone line (PSTN /GSM) Serial (RS485) Ind.
  • Page 3 Connecting External Dual Illuminated Alarm Push The diagram below shows the connections required to support a dual illuminated alarm push. The alarm push will require a separate 12VDC power supply. 12VDC PSU To Lift Alarm cct Back light Call ans light To Lift Alarm cct 0V - unit automatically detects N/O or N/C...

  • Page 4: Programming Options

    Fixing the unit behind the COP Follow the simple steps below to install the C100 Base behind the COP panel. 1. Drill fixing holes 2. Cut the grill pattern and 3. Fix the unit in place LED indicator holes The C100 BASE is supplied with a self-adhesive gasket on the face of the unit. In the absence of studs or screw holes in the COP the gasket may be used to affix the C100 BASE to the COP.
  • Page 5 ü Forward / Accept û Back / Cancel ETR Software The Memco C100 ETR software, allows users to set up and maintain their own database of lift emergency telephones. The software can be used to receive emergency calls, test calls and equipment monitoring for up to 4,000 lifts per system.
  • Page 6 Passcode indicated by the 5th digit in Call Attempts (see below Call Attempts) screen before waiting for the next technical alarm. Network ID If using Avire ETR software select the ‘Memco’ protocol. Next EN81 call PBX Frequency Background no. Language >...

  • Page 7: Quick Start

    Full Menu Structure Menu Sections explained... Quickstart > Settings Tel. Numbers > ID Code Alarm no.1 If using Memco GlobalNet to monitor the C100 enter the following: Alarm no.2 [3 digit customer number][Unit ID code] Alarm no.3 Alarm no.4 Volume Tech.no.

  • Page 8: Menu Structure

    Full Programming Options Menu Structure Menu Sections explained... Quick dial Reduces the dial tone detection test from 7 seconds Quickstart > to 3 seconds – prevents issues with exchanges Tel. Numbers > timing out after 4 seconds. Alarm no.1 Quick VAD Allows the C100 to detect speech before the first ring pulse has been sent down the line, Alarm no.2...
  • Page 9 Full Programming Options Menu Structure Menu Sections explained... Quickstart > Messages Tel. Numbers > Alarm no.1 Messages > Alarm no.2 Location This is the only message that needs Alarm no.3 recording. The location message is played to the call centre receiving the alarm call, Alarm no.4 to inform them of the location of the lift.
  • Page 10 Full Programming Options Menu Structure Menu Sections explained... Quickstart > Relay Mode Tel. Numbers > The relay can be used to switch the power supply to an external device (e.g. warning siren, door locking systems). Alarm no.1 Alarm no.2 Relay Mode > Alarm no.3 Siren û...
  • Page 11 Full Programming Options Full Programming Options Full Programming Options Menu Structure Menu Structure Menu Structure Menu Sections explained... Advanced > Relay Override Passcode Relay Override > Network ID None The relay will switch according to the Relay Mode Next EN81 call setting.
  • Page 12 After talking to the passengers for 2 mins and 30 secs, you will hear a prompt message; you have 30 secs remaining To end the call press * then # Avire Global Ptd Ltd Unit 1, The Switchback 01628 540 100 Gardner Road 01628 621 947 Maidenhead sales.uk@avire-global.com Berkshire SL6 7RJ, UK www.avire-global.com Memco is a brand of Avire...
