nokia
C
P
ONNECTING
EOPLE
Nokia Mobile Phones Customer Care EMEA
Technical Services, Repair Concepts
Copyright © Nokia Corporation. This material, including documentation and any related computer
programs, is protected by copyright controlled by Nokia Mobile Phones. All rights are reserved.
Copying, including reproducing, storing, adapting or translating, any or all of this material requires
the prior written consent of Nokia Mobile Phones. This material also contains confidential
information, which may not be disclosed to others without the prior written consent of Nokia
Mobile Phones.

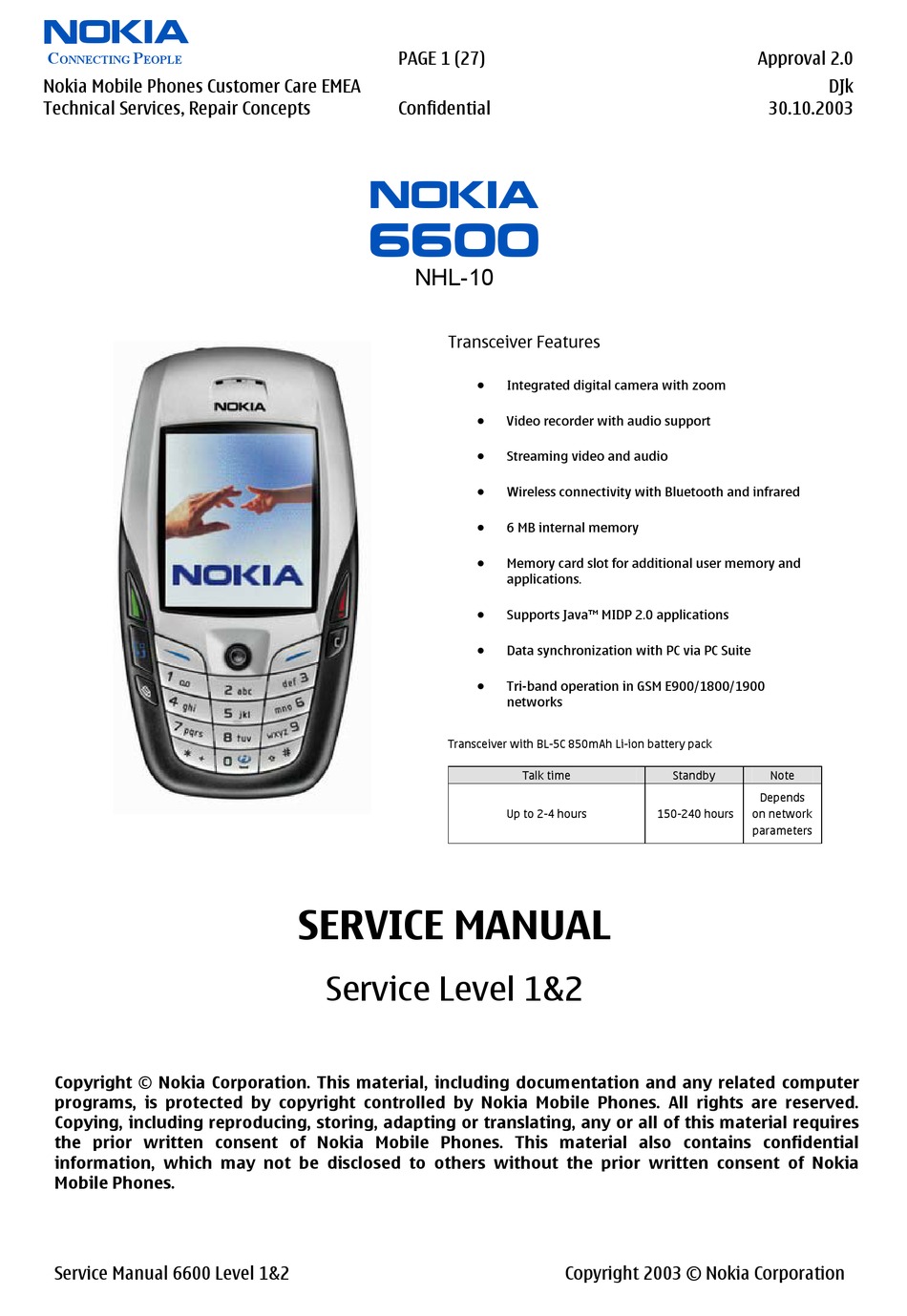

Service Manual 6600 Level 1&2
PAGE 1 (27)
Confidential
nokia
6600
NHL-10
Transceiver Features
Transceiver with BL-5C 850mAh Li-ion battery pack
SERVICE MANUAL
Service Level 1&2
•
Integrated digital camera with zoom
•
Video recorder with audio support
•
Streaming video and audio
•
Wireless connectivity with Bluetooth and infrared
•
6 MB internal memory
•
Memory card slot for additional user memory and
applications.
•
Supports Java™ MIDP 2.0 applications
•
Data synchronization with PC via PC Suite
•
Tri-band operation in GSM E900/1800/1900
networks
Talk time
Up to 2-4 hours
Copyright 2003 © Nokia Corporation
Approval 2.0
30.10.2003
Standby
Note
Depends
150-240 hours
on network
parameters
DJk

Advertisement

Table of Contents
loading

Related Manuals for Nokia 6600

Summary of Contents for Nokia 6600

  • Page 1 Copying, including reproducing, storing, adapting or translating, any or all of this material requires the prior written consent of Nokia Mobile Phones. This material also contains confidential information, which may not be disclosed to others without the prior written consent of Nokia Mobile Phones.

  • Page 2: Table Of Contents

    PAGE 2 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 TABLE OF CONTENT Page INTRODUCTION ............................3 GENERAL REPAIR INFORMATION ....................4 PATHFINDER FOR WORKSHOP STAFF.................... 5 EXPLODED VIEW AND COMPONENT DISPOSAL................6 SPARE PARTS LIST..........................

  • Page 3: Introduction

    The purpose of this document is to help Nokia service levels 1 and 2 workshop technicians to carry out service to Nokia 6600. This Service Manual is to be used only by authorized Nokia service partners, and the content of it is confidential. Please note that Nokia provides also other guidance documents (e.g. Service Bulletins) for service partners, follow these regularly and comply with the given instructions.

  • Page 4: General Repair Information

    Service Tools SB-011: NMP Standard Toolkit Spare Parts SB-004: New swap phone cartons Please check Nokia Partner Web Site and CarePoint for latest news and files on a regular basis. Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation...

  • Page 5: Pathfinder For Workshop Staff

    Nokia Partner Web Site Nokia Care Point Nokia Care Point is repair support and training channel for Nokia Nokia Partner Web Site for EMEA region is the most important document database for all service suppliers (level 1-4). All service suppliers (mainly for service levels 1 and 2). By providing service relevant information like e.g.

  • Page 6: Exploded View And Component Disposal

    PAGE 6 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 4. EXPLODED VIEW AND COMPONENT DISPOSAL Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories.

  • Page 7: Spare Parts List

    PAGE 7 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 5. SPARE PARTS LIST ITEM/ QTY PART NO PART NAME CIRCUIT REF. I001 XXXXXXX A-COVER I002 XXXXXXX KEYMAT I003 6290109 SCREWS 1.8X9 T6 PLUS...

  • Page 8: Variant Parts

    PAGE 8 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 SOLDERING COMPONENTS ONLY FOR LEVEL 2 ITEM/ QTY PART NO PART NAME CIRCUIT REF. F380 5119019 SM FUSE F 1.5A 32V...

  • Page 9: Swap Units

    PAGE 9 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 SWAP UNITS QTY PART NO PART NAME 0050486 NHL-10 N6600 SWAP UNIT EUROPE&AFRICA (LIGHT GREY) 0050487 NHL-10 N6600 SWAP UNIT EUROPE (ROSE)

  • Page 10: Service Tools

    PAGE 10 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 6. SERVICE TOOLS ACF-8 Universal Power Supply is used to power FLS-4S. FLS-4S incl. Driver and User Guide is a dongle and flash device incorporated into one package, developed specifically for POS use.
  • Page 11 Camera removal tool for VGA Cameras New Test Pins for Flash Adapter SF-2 NMP code 0772040 Content Nokia opening tool SRT-6 Nokia No. 0770431 Tonichi torque driver Nokia No. 6901525 Hoya micro fibre cloth MX304 Dastex gloves S, M, XL...

  • Page 12: Sw-Update

    7. SW-UPDATE To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always the latest version of flash software, which is available on Nokia Partner Web Site. Flash Concept – (Point of Sales) It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter will be damaged.

  • Page 13: Disassembly Instructions (Also See The Video Clips On Care Point)

    PAGE 13 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 8. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT) If not already done protect window with a film to Press the Release Button before removing the C-Cover.
  • Page 14 PAGE 14 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 Lift the A-Cover on its bottom side carefully. Place the The same procedure on the other side. SRT-6 in the groove and shift it to the next mark. Then press in the tip as in the step above.
  • Page 15 PAGE 15 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 Use the SRT-6 as a lever to release the snap. Do not Now release the next snap. Use the same procedure on twist SRT-6, because this would damage the cover.
  • Page 16 PAGE 16 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 Remove LCD after protecting it with a film. SRT-6 can be used to remove the Grounding Clip. Please note the guiding pin of the Earpiece while A slotted screwdriver can be used to release the three snaps of the Shielding Gasket.
  • Page 17 PAGE 17 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 Use SRT-6 to lift up the Antenna. The Power Button can be removed easily. Use tweezers when removing the Vibra Motor.

  • Page 18: Legend For Quick Trouble Shooter

    PAGE 18 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 9. LEGEND FOR QUICK TROUBLE SHOOTER This legend is valid for all parts of the Quick Trouble Shooter Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.

  • Page 19: Quick Trouble Shooter Part1

    PAGE 19 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 10. QUICK TROUBLE SHOOTER PART 1 Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation...

  • Page 20: Quick Trouble Shooter Part 2

    PAGE 20 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 11. QUICK TROUBLE SHOOTER PART 2 Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation...

  • Page 21: Quick Trouble Shooter Part 3

    PAGE 21 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 12. QUICK TROUBLE SHOOTER PART 3 Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation...

  • Page 22: Camera Gonogo Test

    PAGE 22 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 13. CAMERA GONOGO TEST Before starting the GoNoGo test, check that camera window is clean. If not, clean the window with cloth.

  • Page 23: Bluetooth And Infrared Gonogo Test

    Bluetooth test: Select Via Bluetooth Search window appears, if all Bluetooth devices in range will be displayed, the test is successful! Press red receiver button for Home Menu. Service Manual 6600 Level 1&2 Copyright 2003 © Nokia Corporation...

  • Page 24: Gonogo Test (Gsm Only)

    After the optical check as GoNoGo test has to be carried out if the unit has been unscrewed to guarantee the functionality of the phone. Please refer to the actual information on Partner Web Site and Nokia Care Point. When using automatic tester support, take care of the right setup according to the tester type and product type.

  • Page 25: Service Notes

    PAGE 25 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 17. SERVICE NOTES We recommend using Service Notes when shipping phones to other Service Partners. It prevents the product from scratches, it is ESD-neutral and has the possibility to give valuable feedback of the fault symptom through a structured form.

  • Page 26: Forwarding Of Repairs To Service Level 3 Or 4 Suppliers

    PAGE 26 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 18. FORWARDING OF REPAIRS TO SERVICE LEVEL 3 OR 4 SUPPLIERS We recommend using the offered swap phone cartons as described in Spare Parts SB004.

  • Page 27: Esd Protection Requirements

    PAGE 27 (27) Approval 2.0 ONNECTING EOPLE Nokia Mobile Phones Customer Care EMEA Technical Services, Repair Concepts Confidential 30.10.2003 19. ESD PROTECTION REQUIREMENTS Please refer to the Partner Web Site document General instructions Service Partner Requirements. Conductive bags and boxes...
