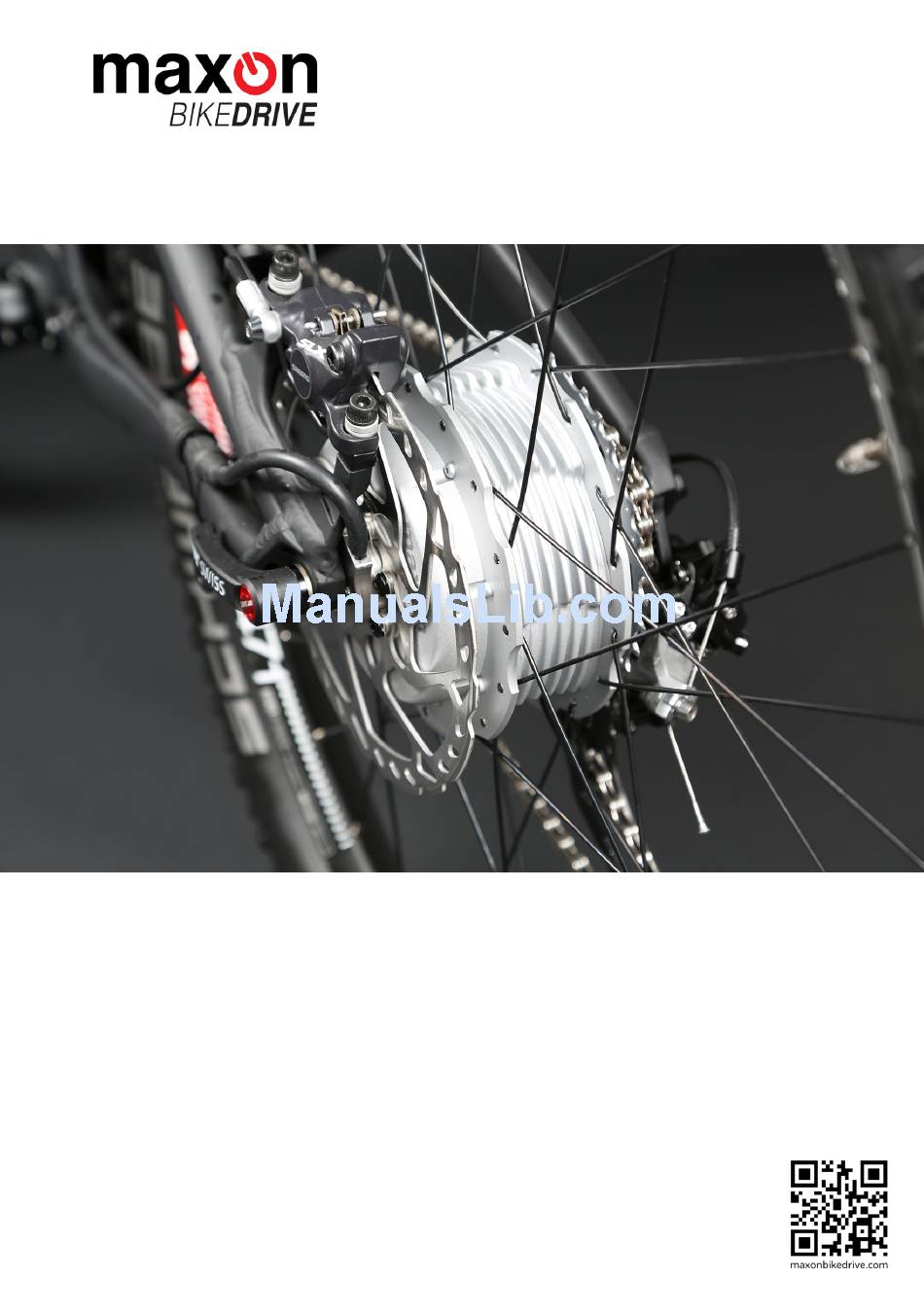

- Page 1 USER MANUAL Edition 2015-12 Document ID rel6003 not valid for «Limited Edition» (#1…250/250)
-
Page 2: Table Of Contents
USE THIS PRODUCT IF YOU ARE IN GOOD PHYSICAL HEALTH. NEVER ACT IN A CARELESS MANNER WHEN USING THIS PRODUCT. YOU ARE RESPONSIBLE FOR YOUR SAFETY AND THE SAFETY OF OTHERS AROUND YOU WHEN USING THIS PRODUCT! maxon BIKEDRIVE | User Manual | rel6003... -
Page 3: Operation
Indicates an important aspect. Ignoring can cause damage to components! In illustrations, only the “eye” will be displayed. Indicates an important aspect or gives important additional information. OPERATION Components Figure 1 maxon BIKEDRIVE — Components maxon BIKEDRIVE | User Manual | rel6003... -
Page 4: Legal Regulations
Inquire about the current legal requirements in your country or in your area before putting your bike into operation. Equipped with the BIKEDRIVE, the bike is a vehicle with motorized assistance. Depending on the country, the vehicle is called E-Bike, Pedelec (Pedal Electric Cycle), electric or motor-assisted bicycle, electro moped, autocycle, or similar, and is subject to appropriate legal regulations. -
Page 5: Handling
Take it easy to start with and use caution on your first rides! Once you are set- tled, you will experience the BIKEDRIVE to be total fun bearing a certain “addic- tive potential”! ;-) -
Page 6: Battery
LED display will go off. To display the battery charge level at anytime during your ride, press the main switch. Turn off To turn the BIKEDRIVE off, press the main switch until the LED display goes off. maxon BIKEDRIVE | User Manual | rel6003... -
Page 7: Displays
The PowerGrip does not engage in this position and bounces back to level «Power3» when released. Charging Indicator The remaining capacity of the battery is displayed in 20% steps. Charging level 100…80% 80…60% 60…40% 40…20% 20…0% maxon BIKEDRIVE | User Manual | rel6003... -
Page 8: Before The Ride
Before the Ride IMPORTANT!—Power up procedure During power up procedure, the BIKEDRIVE will perform a self test and initialization. Moving the bike contrary to the driving direction during this process can lead to mal- function. Therefore, while power up procedure is in process,…... -
Page 9: Riding The Bike
PowerGrip’s multicolor LED A (“Status Indicator” on page 8). Motor warm Cause: This is no reason for concern! You are using the BIKEDRIVE for what it is made for; motorized propulsion while pedaling. What happens now? Just keep on going! Depending on driving behavior, topography or usage of «Boost», heating of the... -
Page 10: Battery Capacity
Operation Riding the Bike Motor hot Cause: You have pushed the BIKEDRIVE to the maximal permitted motor tem- perature. What happens now? Just keep on going! The motor will automatically regulate to the highest possible torque output without exceeding the maximum permitted motor temperature. -
Page 11: After The Ride
Operation After the Ride After the Ride If you take a Always turn the BIKEDRIVE completely off whenever you are not sitting on the break: bike and protect it against theft or tampering! Turn the PowerGrip in neutral position «Zero». - Page 12 After the Ride • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • maxon BIKEDRIVE | User Manual | rel6003...
-
Page 13: Maintenance
Nevertheless, please contact your authorized BIKEDRIVE dealer if any malfunction should occur. Please note: You are not entitled to perform any repair on the BIKEDRIVE. It does not contain any user-serviceable parts. After appropriate instruction by the specialized dealer you are permitted to carry out the following described cleaning, inspection, and maintenance work. -
Page 14: Storage Of The Battery
Wrong charging current or penetrating humidity can damage the battery and can lead to serious injury! • Use only an original BIKEDRIVE battery charger to recharge the battery! • During the charging process, protect the battery, battery charger, and plug connectors from contact with humidity (water, dew, cleaning agents, etc.) and... -
Page 15: Periodic Inspection
Care & Maintenance 2.1.3 Periodic Inspection In addition to the maintenance specified by the bike manufacturer, you or your authorized BIKEDRIVE dealer must perform the following inspections. When? What? Brakes: Check wear on brake discs and brake pads, After heavy use replace if necessary •... - Page 16 Put over cable and plug and remove. 8) Loosen and remove screws (H). Remove brake disc 9) Remove spacer plate (G). 10) Carefully pull off brake disc. maxon BIKEDRIVE | User Manual | rel6003...
- Page 17 IMPORTANT! • During reassembly, parts can easily be damaged. Exercise caution. • To attach the brake disc, use only the maxon «Brake Screw Kit TX25» (519904), the originally used, or as to below specified screws. • The screws must not axially touch the bottom of the tap. Wrong or too long screws lead to permanent damage of the motor.
- Page 18 It must not protrude nor be pinched in the separating Mount cover pane. 14) Mount screws (A) and lightly tighten. 15) Check cover for correct fit. 16) Tighten screws crosswise until parts fully contact. maxon BIKEDRIVE | User Manual | rel6003...
- Page 19 • Align rear wheel, slightly tighten axle. 19) Turn motor against direction of travel until torque lever Mount stop- strikes against frame from per sleeve below. 20) Tighten axle. maxon BIKEDRIVE | User Manual | rel6003...
- Page 20 24) Fasten Power Cable (but not the motor plug!) to the frame using cable ties. 25) Fasten motor cable to the frame using «Power Cable Strip». maxon BIKEDRIVE | User Manual | rel6003...
-
Page 21: Spare Parts
Accessory Freewheel Kit 518374 Rear wheel 26 inch 515713 Rear wheel 27½ inch 515724 Rear wheel 29 inch 515729 Rear wheel 28 inch (700C) 515733 Power Cable Strip 527842 Table 2 Spare Parts maxon BIKEDRIVE | User Manual | rel6003... -
Page 22: Troubleshooting
PowerGrip. Remedy: You do not need to do anything! For safety reasons, the power supply will first be interrupted to the motor before the entire BIKEDRIVE will be switched off. Cause: The motor has detected an error. -
Page 23: Disposal
In no case dispose used components with normal domestic waste! Dispose disused components only via official collection sites, point of sale, or your BIKEDRIVE dealer! The sales price includes a prepaid disposal fee allowing you to let dispose of and recycle disused components free of charge. - Page 24 Maintenance Disposal • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • maxon BIKEDRIVE | User Manual | rel6003...
-
Page 25: Technical Data
PowerGrip X33 voltage-limited Weight 3.5 kg (including hub) QR version Figure 7 Dimensions TA version Figure 8 Environmental Operating temperature -20…+50 °C conditions Storage temperature -20…+60 °C Table 3 Motor MX25 | Technical Data maxon BIKEDRIVE | User Manual | rel6003... - Page 26 Technical Data Figure 7 Motor MX25 (QA Version) | Dimensions [mm] Figure 8 Motor MX25 (TA Version) | Dimensions [mm] maxon BIKEDRIVE | User Manual | rel6003...
- Page 27 Dimensions (LxWxH) 285x86x120 mm Operating temperature -20…50 °C Environmental Charging temperature 0…45 °C conditions Storage temperature 0…30 °C Table 4 Battery BX360 ONE | Technical Data Figure 9 Battery BX360 ONE | Dimensions [mm] maxon BIKEDRIVE | User Manual | rel6003...
- Page 28 435 g Table 5 Baseplate BX360 ONE | Technical Data Figure 10 Baseplate BX360 ONE | Dimensions [mm] PowerGrip PowerGrip Type Electronic throttle grip Weight 56 g Table 6 PowerGrip | Technical Data maxon BIKEDRIVE | User Manual | rel6003...
- Page 29 Power Charger | Dimensions [mm] Accessories (approximate weights) Cables Control Cable 15 g 66 g TA E-Thru 108 g Axles TA Maxle 120 g TA X-12 120 g Table 8 Accessories | Technical Data maxon BIKEDRIVE | User Manual | rel6003...
- Page 30 Technical Data • • p a g e i n t e n t i o n a l l y l e f t b l a n k • • maxon BIKEDRIVE | User Manual | rel6003...
- Page 31 6 inspection, periodic 15 symbols and signs used 3 labeling 3 technical data 25 legal regulations 4 theft protection 6 Legislation 4 transport 11 lock 6 troubleshooting 22 turn off 6 maxon BIKEDRIVE | User Manual | rel6003...
- Page 32 The mentioned trademarks belong to their respective owners and are pro- tected under intellectual property rights. © 2015 maxon advanced robotics & systems. All rights reserved. Subject to change without prior notice. maxon BIKEDRIVE | User Manual | Edition 2015-12 | Document ID rel6003 maxon advanced robotics &...
