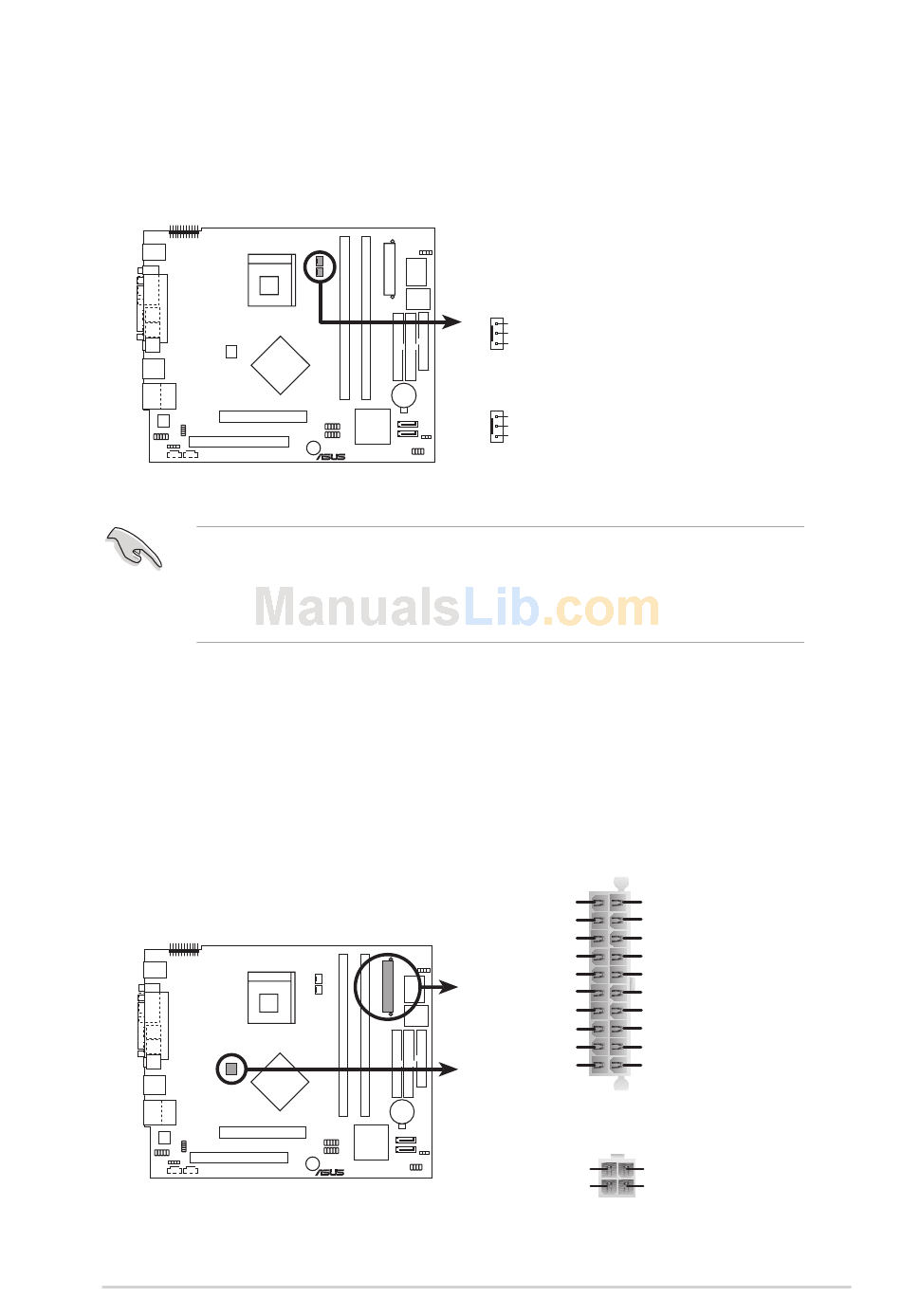

7. CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
The fan connectors support the proprietary CPU fan and chassis fan.
Connect the fan cable to the connector matching the black wire to the
ground pin.
P4P8T
P4P8T Fan Connectors
Do not forget to connect the fan cables to the fan connectors. Lack of
sufficient air flow within the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
8. ATX power connectors (20-pin ATXPWR, 4-pin ATX12V)
These connectors are for the 20-pin and 4-pin power plugs from the
power supply unit. The plugs from the power supply unit are designed
to fit these connectors in only one orientation. Find the proper
orientation and push down firmly until the connectors completely fit.
P4P8T
P4P8T ATX Power Connector
ASUS Terminator 2 barebone system
CPU_FAN
GND
+12V
Rotation
CHA_FAN
GND
+12V
Rotation
®
ATXPWR
+12.0Volts
+5V Standby
Power Good
+5.0 Volts
+5.0 Volts
+3.3 Volts
+3.3 Volts
ATX12V
®
+5.0 Volts
+5.0 Volts
-5.0 Volts
Ground Ground
Ground
Ground Ground
Power Supply On
Ground Ground
-12.0Volts
+3.3Volts
+12V DC +12V DC
COM COM
