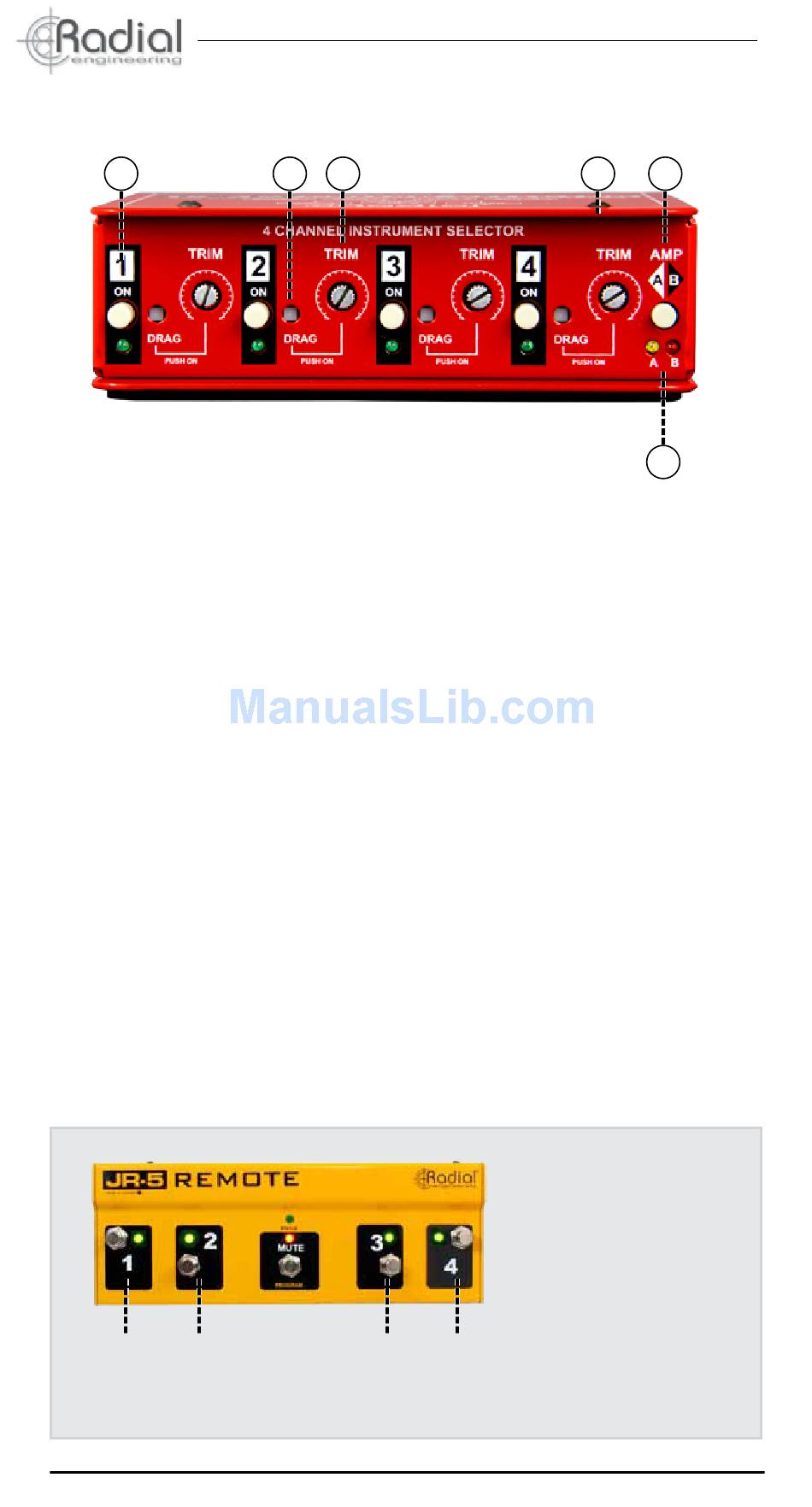

FronT Panel FeaTures
1. on: Activates the input channel. LED indicator lets you know which
channel is active. Radio-style buttons only allow one input to be
active at one time.
2. TrIM / DraG switch: Used to set the potentiometer function for
either TRIM or DRAG (push in for DRAG).
3. TrIM / DraG aDJusT: Potentiometer used to adjust the DRAG
(load) on passive sources or TRIM (level) on active sources.
4. BooKenD DesIGn: Inovative book-end design creates protective
zone around switches, potentiometers and connectors.
5. aB aMP: Selector switch, lets you toggle between A or B amp
outputs.
6. aB leD: Indicator to show which amp is selected.
Select
Select
Ch.1
Ch.2
Radial Engineering Ltd.
2
3
Select
Select
Ch.3
Ch.4
1
True to the Music
4
JR-5 Remote:
Optional accessory
to select active
instrument input.
Note: Mute will not affect
the JX-42. To mute the
output use JR-2.
JX-42™ Guitar and Amp Switcher
