OWNER'S MANUAL

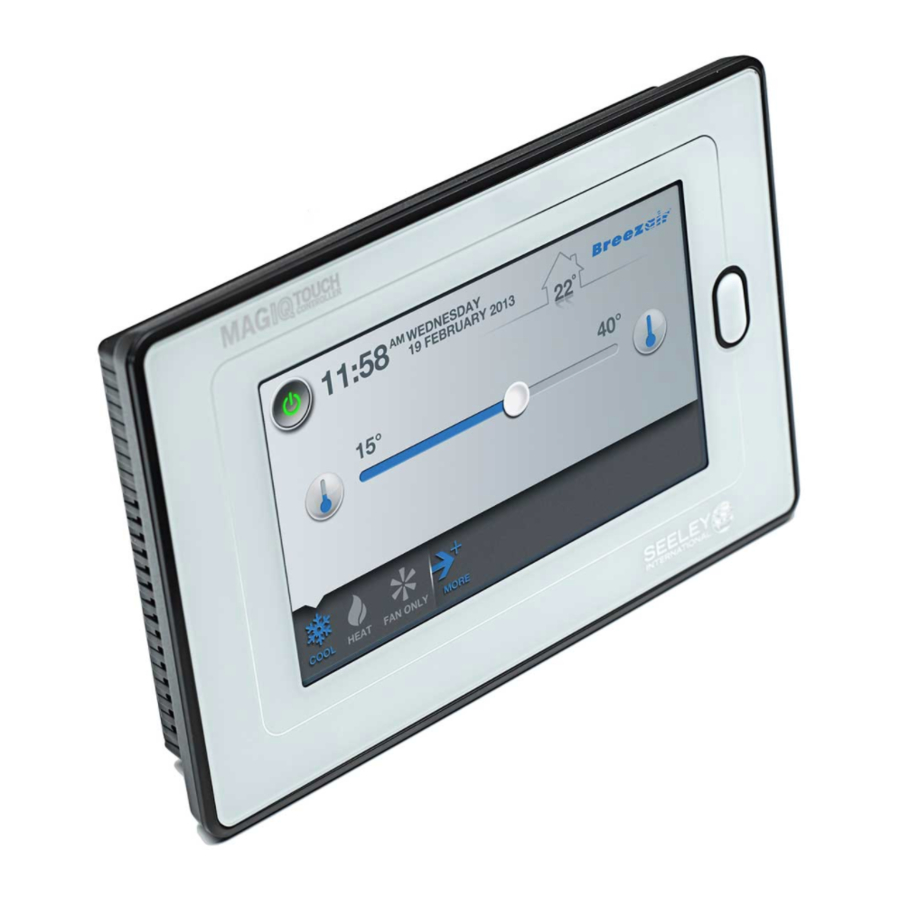

MagIQtouch Controller
Original English Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MagIQtouch and is the answer not in the manual?

Questions and answers

Janice Long
June 11, 2025

The following message has come up on the control panel: FAULT 32 combustion air pressure too low start Please advise how to remedy this problem. With thanks.

0

Subscribe to Our Youtube Channel

Related Manuals for Seeley MagIQtouch

Summary of Contents for Seeley MagIQtouch

  • Page 1 OWNER’S MANUAL MagIQtouch Controller Original English Instructions...
  • Page 3 MagIQtouch Controller for your home! The MagIQtouch Controller is a versatile and intelligent Controller that can be used with a range of products from Seeley International. Please refer to the relevant sections in this manual as well as the owner’s manual provided with each of your products for information on how to set-up and operate your system.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS GENERAL TIPS QUICK START OPERATION NAVIGATION SIMPLE DISPLAY MANUAL MODE PROGRAM MODE SETTINGS MENU GENERAL MENU COOLER & HEATER MENUS About Appliance Min / Max Set Temperature Night Quiet Mode Status Information Display SERVICE MENU WARNINGS & SERVICE MESSAGES SLAVE CONTROLLERS POWER OUTAGES TROUBLE SHOOTING...

  • Page 5: General Tips

    GENERAL TIPS • Mount the MagIQtouch Controller in a room you want climate controlled. Ideally it should be positioned 1.2m from the floor and away from any other heating or cooling sources. • Ensure the MagIQtouch Controller is not exposed to direct sunlight as this will impact the temperature reading.

  • Page 6: Quick Start

    QUICK START Here’s a brief visual guide to get you started quickly! Continue reading for detailed instructions. STEP 1 Activate screen ILL1521-B ILL1522-B...
  • Page 7 QUICK START cont STEP 2 Select mode from lower taskbar ILL1523-B ILL1524-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 8 QUICK START cont STEP 3 Turn on cooler or heater ILL1525-B ILL1526-B...
  • Page 9 QUICK START cont STEP 4 Set desired temperature ILL1527-B ILL1528-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 10 QUICK START cont STEP 5 Access more advanced options by expanding the lower taskbar ILL1529-B ILL1530-B...
  • Page 11 QUICK START cont STEP 6 Access wall control and system settings in the SETTINGS menu. ILL1531-B ILL1532-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...

  • Page 12: Operation

    NAVIGATION There are a few things you might need to know in order to navigate your new MagIQtouch Controller. If you are unfamiliar with touch screen technology, the following section outlines some of the sliders and buttons you will need to use throughout the interface.
  • Page 13 The lower taskbar is the section at the bottom of the screen. This is where you’ll be able to select your primary mode (cool, heat or fan only). Just be aware that you’ll only see icons that are relevant to your installation as the MagIQtouch Controller knows what it’s attached to. ILL1539-A...
  • Page 14 OPERATION cont NAVIGATION cont The lower taskbar can be expanded to reveal more advanced control options. Here you can choose to operate manually or with a 7 day program. You can also access the settings menu for more options again. ILL1540-A The operating space in between will change depending on what mode you have selected.

  • Page 15: Simple Display

    SIMPLE DISPLAY There is no need to display advanced functionality if it is not required. In simple display you can set your mode and temperature and let the MagIQtouch Controller do the rest. ILL1543-B ILL1527-B Note! In the case of a heater, the temperature slider will change to dark grey (fan running) to orange (gas and flame present).

  • Page 16: Manual Mode

    OPERATION cont MANUAL MODE If you want full minute-to-minute control of your system, use MANUAL mode. An evaporative cooler running in Manual TEMP mode will try to maintain the temperature you want by speeding up or slowing down the fan. ILL1544-B Alternatively, using Manual SPEED mode, you can choose to disregard the room temperature and keep the cooler running at a...

  • Page 17: Program Mode

    If you like routine and want to “set and forget” a seven day program that suits your lifestyle, activate PROGRAM mode. PROGRAM mode divides each day into four time periods. You decide when each of these periods begins and what you want your system to be doing. ILL1546-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 18 OPERATION cont PROGRAM MODE cont Program mode is flexible. If you leave or arrive home early, you can easily skip forwards to the next period. The program will take over again once the next time period begins. ILL1547-B ILL1548-B...
  • Page 19 Or perhaps you want to make the temperature higher without permanently changing your program. The OVERRIDE button will allow you to temporarily change what’s been set by the program until the next time period begins. ILL1549-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 20 OPERATION cont PROGRAM MODE cont To set up a program first press the EDIT button on the PROGRAM home screen. ILL1550-B This will take you to a program overview screen where you can tap each day to see what’s been set. ILL1551-A ILL1552-A...
  • Page 21 If your system has zones, you’ll see each zone listed in rows. Just scroll up and down to view them all. ILL1553-A To set-up or change a time period, touch the time period and an adjustment screen will appear ILL1554-A MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 22 OPERATION cont PROGRAM MODE cont Turn the system on or off. ILL1556-B Adjust the start time. ILL1558-A Adjust the set temperature. ILL1559-A...
  • Page 23 OPERATION cont PROGRAM MODE cont You can even link days together so you only have to make the adjustments once. ILL1560-A Then save your changes and you’re done. ILL1561-A MAGIQTOUCH CONTROLLER OWNER’S MANUAL...
  • Page 24 OPERATION cont PROGRAM MODE cont Now you can review what you’ve done and select another time period. ILL1562-A Or if you’re done, press BACK to return to the program home screen. ILL1581-B...

  • Page 25: Settings Menu

    SETTINGS MENU The SETTINGS menu contains extra options. There are general settings for your MagIQtouch Controller and the system as a whole. You’ll also find individual menus for the product(s) you have installed. At the end is a menu for service agents, to help them help you.
  • Page 26 SETTINGS MENU cont All the menu items are listed on the left hand side of the screen. ILL1566-B The current status is listed on the right, close to the arrow buttons. ILL1567-B If you want to change a setting or access a menu item, press the arrow button.

  • Page 27: General Menu

    ILL1577-B GENERAL MENU The GENERAL menu includes settings or information related to your MagIQtouch Controller, or the system as a whole. • Time and Date • Language • °C / °F (temperature unit) •...

  • Page 28: Cooler & Heater Menus

    COOLER & HEATER MENUS The COOLER and HEATER menus include settings or information related to the specific Seeley International cooling or heating products installed within your system. If you want to know more about the specific settings of your product, please refer to the separate owner’s manual you...

  • Page 29: Min/Max Set Temperature

    SETTINGS MENU cont Min/Max Set Temperature You can change the minimum and maximum temperature displayed on your slider, depending on what temperature range you prefer your system to work within. ILL1571-B ILL1572-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...

  • Page 30: Night Quiet Mode

    SETTINGS MENU cont Night Quiet Mode Restrict fan speed over the night time period for a quiet night’s sleep. ILL1573-A Status Information Display When this option is turned on, a temporary information display window becomes accessible on all MANUAL and PROGRAM screens. ILL1574-B ILL1575-B...

  • Page 31: Service Menu

    SETTINGS MENU cont SERVICE MENU The SERVICE menu contains information and functions for competent service personnel. Access is locked with a service pin code. ILL1576-A ILL1577-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...

  • Page 32: Warnings & Service Messages

    Perhaps you’ve turned off the power to your cooler over winter. The MagIQtouch Controller will let you know it can no longer detect the cooler and will give you the option to reconnect the power and retry or to ignore it for now.
  • Page 33 If a service issue occurs, there are some features to help you resolve it as quickly as possible. Follow the screen prompts which will either help you fix the issue yourself or display information which will be helpful when you call your local service agent. ILL1579-B ILL1580-B MAGIQTOUCH CONTROLLER OWNER’S MANUAL...

  • Page 34: Slave Controllers

    SLAVE CONTROLLERS Multiple MagIQtouch Controllers can be used to control individual zones. In such installations there is always one “master controller” located in a nominated “master zone”. All other controllers become “slave controllers”. In such systems certain principles that apply: •...

  • Page 35: Power Outages

    POWER OUTAGES After a power outage the MagIQtouch Controller will prompt you to enter the time and date. If the AUTO RESTART option is switched ON in the general setting menu, the cooler or heater will automatically restart in the last mode it was running in before the outage, even before the time or date is set.
  • Page 36 Warranty Service Australia 1-300-650-644 seeleyinternational.com It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected. seeleyinternational.com 863252-B...
