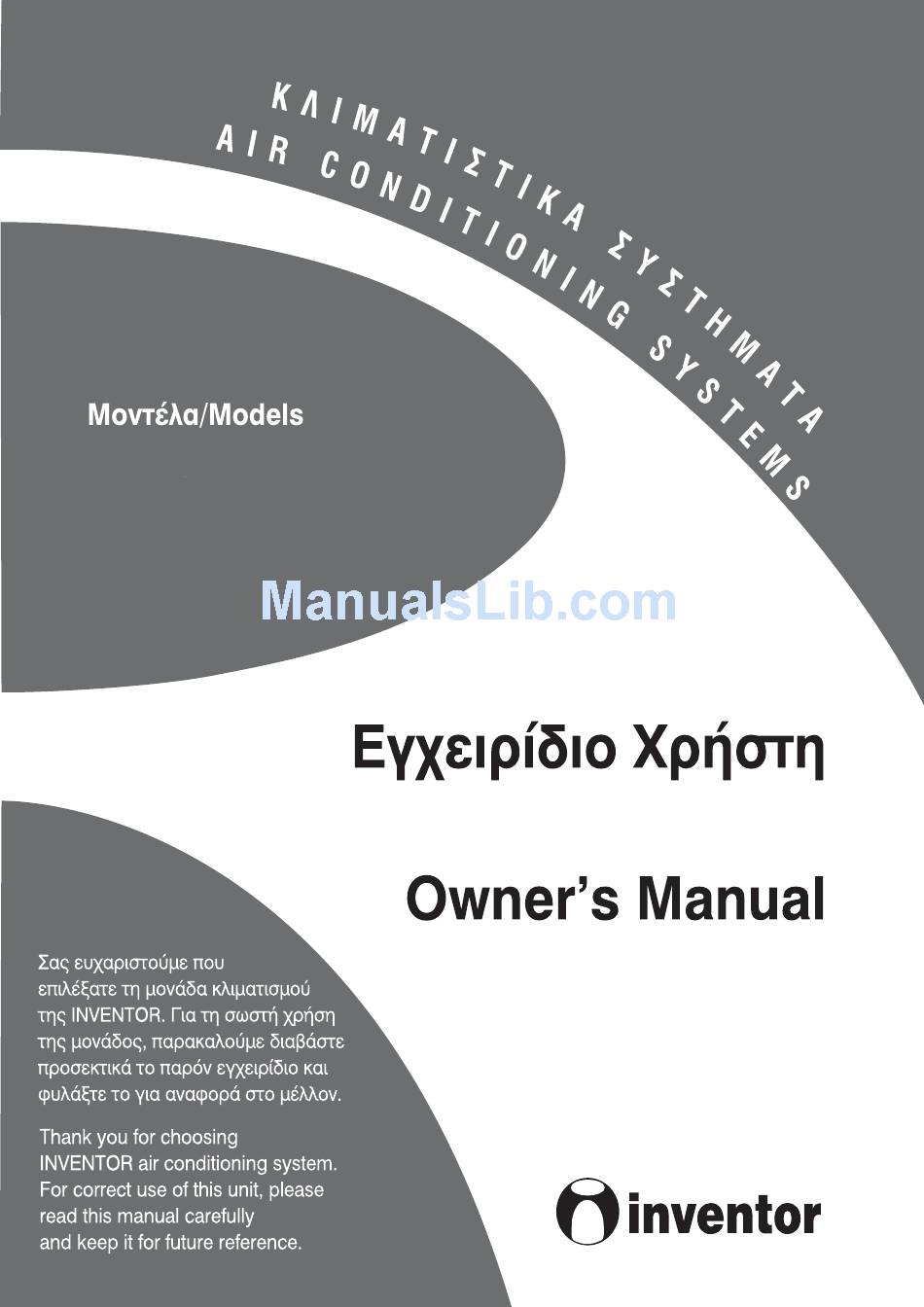

- Page 1 A2VI-09/A2VO-09 A2VI-12/A2VO-12 Eπιτοίχια Μονάδα Wall Mounted Unit English/Ελληνικά/ Română Your-conditions...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance ■ ........1 Safety Precautions ■ Notices for use ........4 ■ Name of parts ........... ■ Operation of Remote Controller ......7 ■ Emergency operation ........13 ■ ........14 Clean and care ■ Troubleshooting ........16 Installation service ■... -
Page 3: Safety Precautions
Safety Precautions Please read the following notices before operation WARNING If there's abnormal pheno- Do not operate the air cond- Do not cut o or damage the menon(like smell of burning), itioner with wet hands. power cord or signal control please cut o the power imm- wire. - Page 4 Safety Precautions ★ ★ Earth: The ground Be sure to pull out the power ★ Select the most appropriate tem- be connected! plug when not using the air co- perature. nditioner for a long time. Keep room cool- er than outside about 5 degree.
- Page 5 Safety Precautions ★ ★ Do not cut off or damage the power cords or To change the airflow direction, adjust the vertical control cords. If they are damaged, please air flow direction by using the remote controller contact the dealer or qualified service or adjust horizontal air flow direction manually.
-
Page 6: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... -
Page 7: Working Temperature Range
Notices for use Anti-cool wind function: In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within 2 mins): 1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature. Working temperature range Indoor sideDB/WB( Outdoor sideDB/WB(... -
Page 8: Name Of Parts
Name of Parts Indoor unit Air in ⑴ ⑶ ⑺ ⑹ ⑷ Air out ⑸ The icons displayed: ： H O U R ONOFF ON OFF ：Cool ⑵ MODE SWING IFEEL ：Dry SLEEP TEMP TIMER-ON CLOCK IMER -OFF ⑴ Power cord TURBO LIGHT X-FAN ：Heat... -
Page 9: Operation Of Remote Controller
Operation of Remote Controller ON/OFF Press it to start or stop operation. : Press it to decrease temperature setting. : Press it to increase temperature setting. MODE Press it to select operation mode (AUTO/COOL/DRY/FAN/HEAT). H O U R Press it to set fan speed. ONOFF SWING Press it set swing angle. -
Page 10: Digital Display
Operation of Remote Controller 18 19 20 21 MODE icon: Up & down swing icon: is displayed when pressing If MODE button is pressed, current operation mode icon down button. up & down swing Press this button again to clear the (AUTO), ( COOL), display. - Page 11 Operation of Remote Controller FAN SPEED display: HEALTH icon: Press FAN button to select the is displayed when pressing the desired fan speed setting(AUTO- HEALTH button.Press this button Low-Med-High).Your selection will again to clear the display. be displayed in the LCD windows, except the AUTO fan speed.
- Page 12 Operation of Remote Controller Remote Controller Description ON/OFF : Press this button to turn on the unit .Press this button again to turn off the unit. Press this button to decrease set temperature. Holding it down above 2 seconds rapidly decreases set temperature.
- Page 13 Operation of Remote Controller SLEEP: Press this button to go into the SLEEP operation mode. Press it again to cancel this function. This function is available in COOL , HEAT (Only for models with heating function) or DRY mode to maintain the most comfortable temperature for you. TEMP: Pressing TEMP button, (set temperature),...
- Page 14 Operation of Remote Controller Combination of "+" and "-" buttons: About lock Press "+ " and "-" buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, is displayed. In this case, pressing any button, blinks three times.
-
Page 15: Emergency Operation
Emergency Operation Emergency Operation When the remote controller is lost or damaged, please use the manual switch on the main unit. In that case, the unit will operate in AUTO mode and the temperature setting or fan speed can not be changed. The manual switch can be operated as below: Manual switch Turn on the unit: Press AUTO/STOP button to... -
Page 16: Clean And Care
Clean and Care Caution Disconnect the power supply before cleaning and maintenance. ● Do not splash water on the units for cleaning, as electric shocks may occur. ● Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner (not with ●... - Page 17 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 18: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 19 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
- Page 20 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
-
Page 21: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installation, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts. - Page 22 Notices for installation Safety Requirements For Electric Appliances 1. The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. 2. Don't drag the power cable emphatically. It should be reliably earthed, and it should be connected to the special earth device, the installation work should be operated by the professional.
-
Page 23: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for correct ● installation of the appliance including the minimum permissible distances to adjacent structures Space to the obstruction Air inlet side... -
Page 24: Installation Of Indoor Unit
Installation of Indoor Unit Installation of Mounting Plate 1. Mounting plate should be installed horizontally. As the water tray's outlet for the indoor unit is two-way type, during installation, the indoor unit should slightly slant to water tray's outlet for smooth drainage of condenser water. -
Page 25: Installation Of Indoor Unit
Installation of Indoor Unit Connecting Indoor and Outdoor Electric Wires 1.Open the front panel. 2.Remove the wiring cover as shown in Fig 6. 3.Make the power connection cord pass through the hole at the back of indoor unit. 4.Reinstall the cord anchorageand wiring cover. 5.Reinstall the front panel. - Page 26 Installation of Indoor Unit Installation of Indoor Unit External connection The piping can be output from right, right rear, left Gas side pipe electric wire ● Liquid side piping or left rear. When routing the piping and wiring from the left Tailing 2 or right side of indoor unit, cut off the tailings Gas side piping...
-
Page 27: Installation Of Outdoor Unit
Installation of Outdoor Unit Electric wiring Disassemble the handle on the outdoor unit right side plate. Take off wire clamp. Connect and fix power connect Handle cord (for cooling and heating unit,connect and fix power connect cord and signal control wire)to terminal of line bank. -
Page 28: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity It may cause condensation and dripping. -
Page 29: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation of Healthy Filter Lift up the front panel from the two ends of it, as shown by the arrow direction, and (as shown in Fig.a) then remove the air filter. Fig. a Fig. b Attach the healthy filter onto the air filter, Air filter (as shown in Fig.b). - Page 30 66129913623...
