Summary of Contents for Montarbo XD69

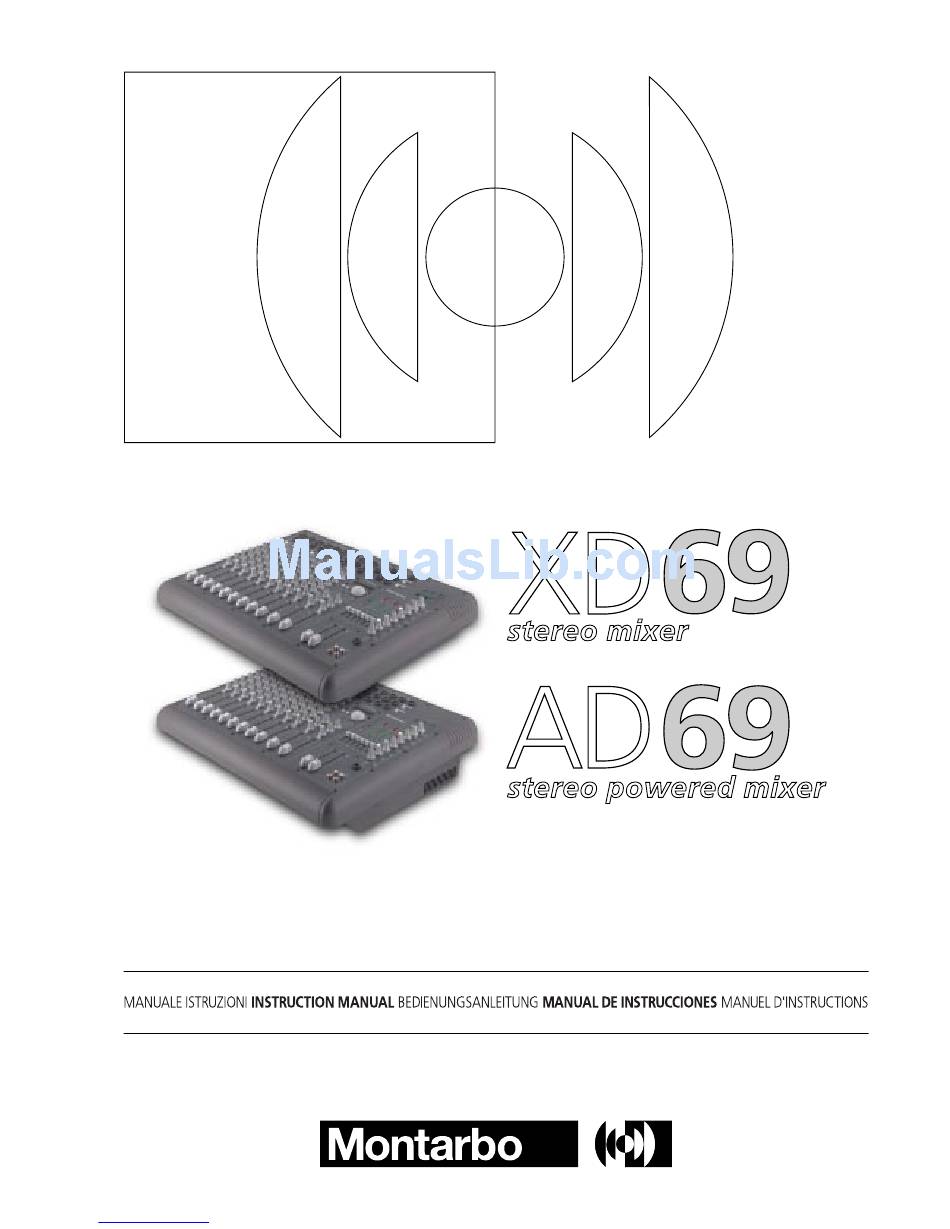

  • Page 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 2: Front And Rear Panels

    XD69 - AD69 FRONT PANEL PHANTOM EXTERNAL EFFECTS EFF 2 - RETN EFF 2 - SEND AUX OUT mono CTRL ROOM E 2 - FT/SW PHANTOM 9/10 11/12 LINE / LINE / LINE / LINE / LINE / INSERT INSERT...
  • Page 3 Per qualsiasi intervento di manutenzione o riparazione, rivolgersi alla Elettronica Montarbo srl e/o a personale altamente qualificato specificamente segnalato da questa. - Nel predisporre l'apparecchio all'utilizzo, assicurarsi che la forma e la por- tata della superficie di appoggio siano idonee a sostenerlo.

  • Page 4: Controlli E Connessioni

    CONTROLLI E CONNESSIONI CANALE D'INGRESSO MONO connessioni: GAIN: controlla il guadagno dello stadio di ingresso, permetten- MIC: ingresso microfonico bilanciato con connettore XLR do il collegamento di sorgenti sia microfoniche che di linea aventi (per il collegamento di microfoni). segnali di uscita estremamente variabili. Come regola generale, al LINE/INSERT: ingresso linea sbilanciato con connettore jack fine di contenere al minimo il rumore, consigliamo di regolare il per il collegamento di strumenti e sorgenti di segnale ad alto livello.
  • Page 5 CONTROLLI E CONNESSIONI DOPPIO PROCESSORE MULTIEFFETTO STEREO MANDATE E RITORNI EFFETTI ESTERNI I due processori sono basati su un DSP a 56 bit con conversione EXT EFF 2 SEND: controllo di volume per la mandata effetti esterni. Regola il livello di segnale presente sull'uscita EFF 2 SEND Delta/Sigma a 24 bit.
  • Page 6 (molto utile quindi per piano-bar e simili). CTRL ROOM OUT L/R: uscite Control Room. Sono utilissime Nell'XD69, tale processore agisce sulle uscite XLR (gli Insert L ed R in tante situazioni di lavoro (piano-bar, club, ristoranti, teatri ecc…)

  • Page 7: Equalizzatore Grafico Stereo

    IMPORTANTE! CURA E MANUTENZIONE Nel mixer XD69: utilizzare cavi schermati per il collegamento di casse acustiche attive alle uscite master L/R. Posizionare il mixer lontano da fonti di calore (caloriferi o qualsiasi altro oggetto che produca calore). Nel mixer amplificato AD69: utilizzare cavi non schermati di...

  • Page 8: Doppio Processore Multieffetto Stereo

    55 (rispettivamente, delle famiglie ECHO + REV. e VOICE REV.), 030 HALO una combinazione che offre ottime prestazioni con i generi musicali Versione digitale del tipico effetto 'ALONE' degli eco a rullo Montarbo più diversi. degli anni '60, un classico del 'vintage' che non accenna a passare di moda.

  • Page 9: Table Of Contents

    To prevent fire and/or electrical shock, never remove their covers. Maintenance and servicing must be carried out the official Montarbo Distributor in your State or by qualified personnel specifically authorized by the distributor. - Before placing the product on a surface of any kind, always make sure that its shape and load rating will safely match the product's size and weight.

  • Page 10: Controls And Connections

    CONTROLS AND CONNECTIONS connections: MONO INPUT CHANNEL GAIN: adjust the gain (sensitivity) of the line and mic inputs, MIC: balanced XLR microphone input (for microphones). allowing connections of signal sources (both line and mic level) LINE / INSERT: unbalanced jack line input (for instruments having a wide range of signal level.
  • Page 11 CONTROLS AND CONNECTIONS DUAL STEREO MULTIEFFECTS DSP EXTERNAL EFFECTS SENDS AND RETURNS With 56-bit internal DSP and 24-bit Delta-Sigma conversion, the EXT EFF 2 SEND: level control for the external effect send. It is two internal effects (160 programs each) provide high performance the mix of the signals sent from the E2 send volume on each channel digital audio processing combined with extremely easy operation.
  • Page 12 2A page 21 PHONES OUT: output for stereo headphones. In the mixer XD69 they may also be used as normal jack outputs I.E.C power supply socket and mains fuse. (using standard mono jack plugs). In this case the XLR outputs are disconnected.

  • Page 13: Important

    IMPORTANT! CARE AND MAINTENANCE In the mixer XD69 use shielded cables for the connection of active speaker enclosures to the L/R master outputs of the mixer. Never expose the mixer to heat sources such as radiators or other products that produce heat.

  • Page 14: Dual Stereo Multieffects Dsp

    030 HALO you will maybe want to use them as general purpose effects. It’s a digital recreation of the effect built in the Montarbo reverb units of the sixties, a vintage classic that never went out of fashion. EFFECTS SETUP 040 ECHO 1 –...

  • Page 15: Appendix

    APPENDIX Downloaded from www.Manualslib.com manuals search engine...

  • Page 16: Xd69 - Ad 69 Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS AD69 XD69 Mono Input channels: micro (sensitivity / impedance) - 60dB / 2,2 kΩ - 60dB / 2,2 kΩ line (sensitivity / impedance) - 30dB / 33 kΩ - 30dB / 33 kΩ 48 V 48 V phantom power supply (on ch.

  • Page 17: Xd69 Block Diagram

    XD69 BLOCK DIAGRAM Downloaded from www.Manualslib.com manuals search engine...

  • Page 18: Ad69 Block Diagram

    AD69 BLOCK DIAGRAM Downloaded from www.Manualslib.com manuals search engine...

  • Page 19: Xd69 - Ad 69 Connections

    1 GND mixer L and R outputs inputs of active enclosures. unbalanced XLR unbalanced XLR male socket female plug Rear panel of the XD69 mixer POWER 220V-240V RIGHT OUTPUTS LEFT 50-60Hz FUSE T 0,5A 1 - GND...
  • Page 20 CONNECTIONS AD69 FIG. L-R POWERED OUTPUTS Connection of passive speaker enclosures to the L/R powered outputs. Connect ONE or TWO 8 Ohms speakers to each output. outputs of the internal power amplifiers inputs of passive enclosures. Rear panel of the AD69 powered mixer SPEAKER OUTPUTS POWER FUSE...
  • Page 21 CONNECTIONS XD69 - AD69 FIG. L-R INSERT SOCKETS stereo JACK sockets: Connection of external auxiliary equipment. L/R INSERT tip (out) ring 1 2 3 1 2 3 MONO JACK 1 2 3 1 2 3 1 2 3 1 2 3...
  • Page 22 CONNECTIONS XD69 - AD69 FIG. L-R CONTROL ROOM OUTPUTS Connection of active speaker enclosures. Up to 10 each output, parallel connected. control room L output input of an active speaker enclosure. control room R output input of an active speaker enclosure.
  • Page 23 CONNECTIONS XD69 - AD69 FIG. SEND / RETURN SOCKETS JACK sockets: EFFECT SEND Connection of external effects. EFFECT RETURN L/R OUTPUTS INPUT EXTERNAL EFFECT mono JACK plug EXTERNAL EFFECTS EFF 2 - RETN EFF 2 - SEND AUX OUT mono...

  • Page 24: Xd69 Connection Examples

    XD69 CONNECTION EXAMPLE (a) active speaker enclosures active stage monitor active speaker enclosures each output (L-R-Aux) can drive up to 10 parallel connected power amplifiers or powered enclosures L master output Aux output R master output instrument micro L/R insert outputs...

  • Page 25: Ad69 Connection Examples

    GAIN GAIN GAIN GAIN GAIN S T E R E O D I G I T A L Montarbo E F F E C T S P R O C E S S O R MASTER CTRL ROOM phones E1/E2...
  • Page 26 Elettronica Montarbo srl no puede ser conside- La Elettronica Montarbo srl non può essere Elettronica Montarbo srl ne peut être rada responsable de daños que puedan ser ritenuta responsabile per danni o incidenti a consideré...
