2 SYSTEM INSTALLATION

2.1

Installation Overview

Installation consists of three main steps:
1. Installing the MHU: mechanical attachment, coaxial cables, ground cable.
2. Installing the Bias-T: mechanical attachment, coaxial cables, power cable.
3. Installing the PDU: mechanical attachment, operation power, and alarms.
2.2

Installing the Masthead Unit

U-bolts are provided for mounting the MHU.
be used for tube diameter 30-140 mm.
ANY ClearGain MHU
(DETAILS MAY VARY)
C l e a
r G a i
n
Figure 6. MHU Long Bolt Mounting Bracket Kit Components
ADCP-75-154 • Issue 3 • August 2006

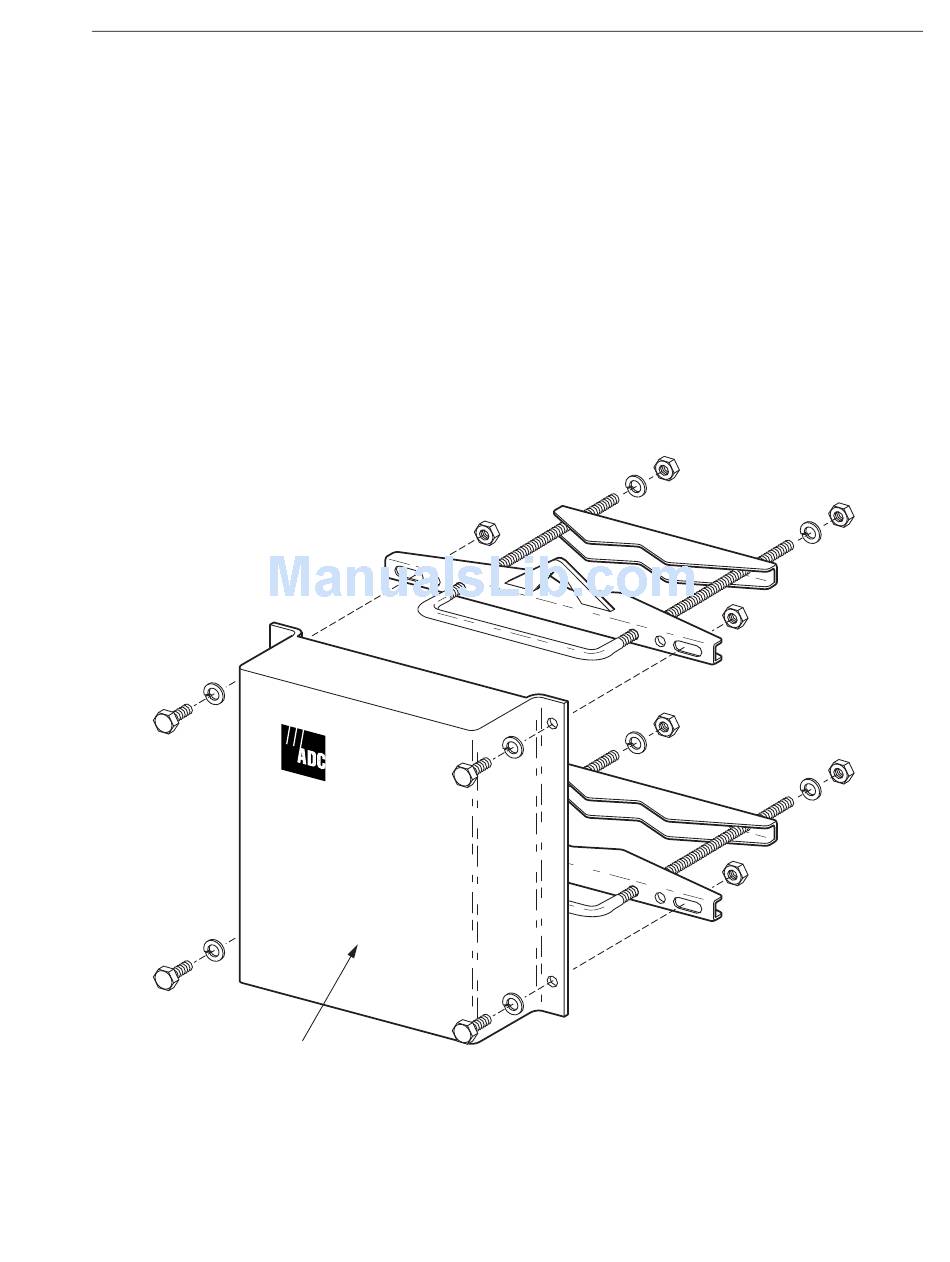

Figure 6 provides an exploded view. The kit may
