  • Page 1: Service Manual

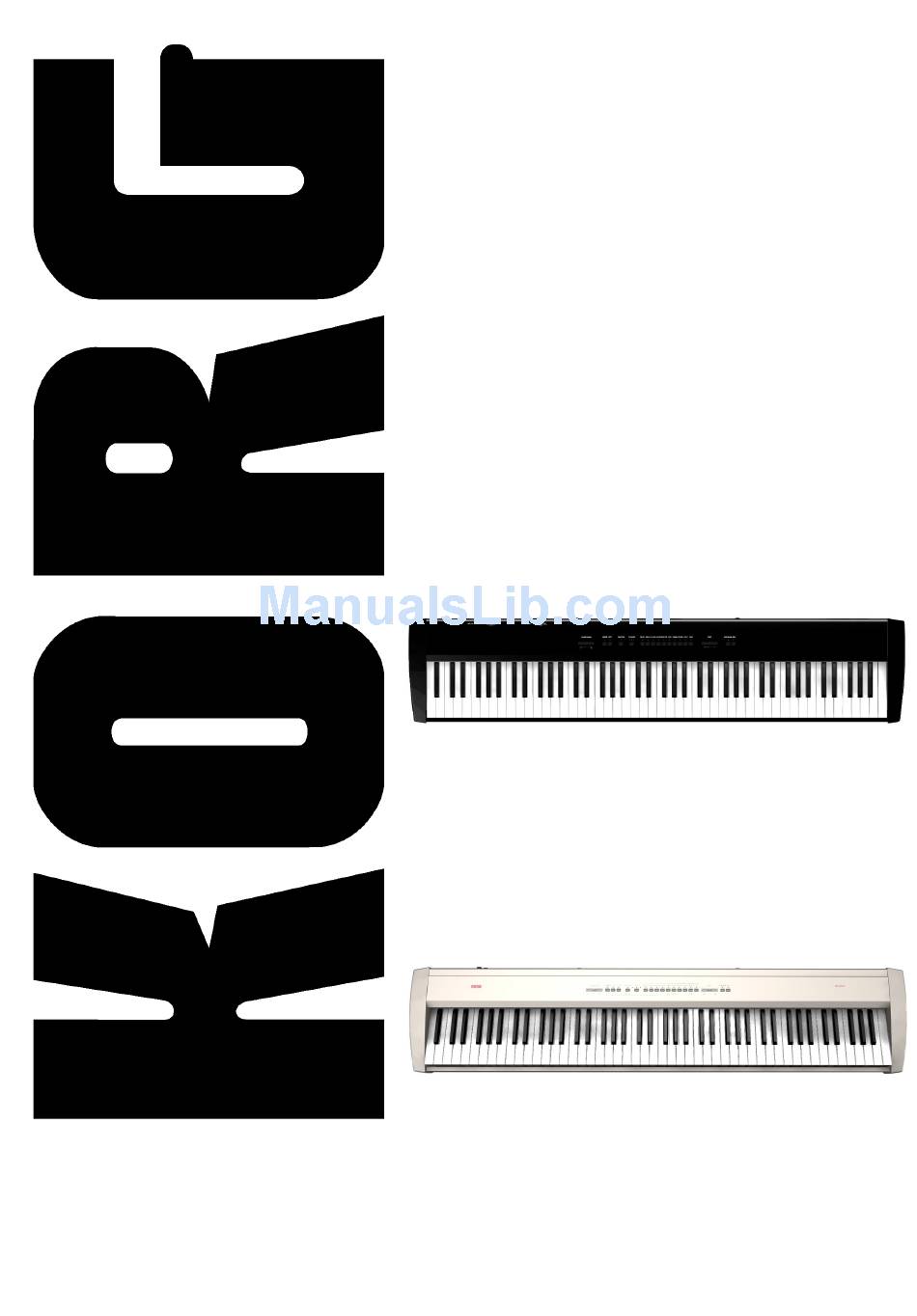

    SP-200 Digital Piano Black Rose Silver Service Manual...
  • Page 2 40.7 lbs (18,5 kg). DC12V, 500mA, center negative barrel, AC adapter; damper pedal; music stand (all Accessories included). Options DS 1H - damper pedal with half-pedal control. Sounds processed with INFINITY™ . Korg reserves the right to change the specifications without notice.
  • Page 9 PEDALS PANEL BOARD MAIN BOARD KIP-2050 KIP2051 Level 17 SW traslator 19 LEDs PANEL TEMPO MIDI TEMPO SLIDER MASTER VOLUME WHEEL ASSEMBLED ON MIC. VOL. PANEL BOARD PART1 VOL. 8 CH. MUX PART2 VOL T.C. IC14 S0-7 MIDI/PC MODEL SELECT S03-07 SELECT MEDIA SELECT...
  • Page 12 MAIN BOARD KIP-2051...
  • Page 13 MAIN BOARD KIP-2051 TOP SIDE MAIN BOARD KIP-2051 BOTTOM SIDE...
  • Page 17 Connect L/MONO OUT to Left channel of an external amplifier. Connect R OUT to Right channel of the external amplifier. Connect the Damper pedal to SP-200. Connect the Headphone OUT to a stereo input To start the internal self test and check all switches with relative LEDs, press simultaneously REVERB and TRANSPOSE with POWER ON.
  • Page 18 Output noise level ( 6 Steps ) misure to do with a Audio Analyzer, connect the single OUT to the input of the Audio Analyzer. Out LEFT Noise Level Test (Step 1) LED E. Piano1 ON The DEMO LED BLINKS waiting for the operator to press and go to next step of test Out RIGHT Noise Level Test (Step 2) LED E.
  • Page 19 Switch & leds The first LED on the LEFT (relative to REVERB) BLINKING waiting for REVERB button to be pressed. When the button related to the current BLINKING LED is pressed, the LED is switched OFF and next LED (from left to right direction) is switched ON In the case of VARIATION when pressing the button for first time it will switch ON the VARIATION LED on left.
  • Page 20 SP-200 PART LIST PART LIST ELECTRIC COMPONENTS CODE PART-TYPE DESCRIPTION GRA0002050 PCB ASSEMBLY KIP-2050 PANEL BOARD GRA0002051 PCB ASSEMBLY KIP-2051 MAIN BOARD GRA0002052 PCB ASSEMBLY KIP-2052 OUTPUT BOARD PART LIST PANEL BOARD KIP-2050 CODE PART-TYPE REFERENCE DIX0005300 1N4148 DIODE D1-4 D6 D9-12 D15 D17-21...
  • Page 21 PART LIST OUTPUT BOARD KIP-2052 CODE PART-TYPE REFERENCE CIN0001009 M5216P DUAL HEADPH.OP. AMP. CIN0001010 MC33078 DUAL LOW NOISE OP. AMP. DIX0005002 SIGNAL DIODE D1-3 DIX0005300 1N4148 H. SPEED SW. DIODE DIX0005303 ZENER VOLTAGE REGULATOR DIODE, VZ=8V2 FER0001138 HEATSINK INT0001012 Main switch SDDL TRS0001001 TRANSISTOR DIGITALE...
  • Page 22 PART LIST PLASTIC COMPONENTS CODE PART-TYPE REFERENCE BLACK R. SILVER PLA0001110 MUSIC REST SUPPORT PLA0001052 MAIN SWITCH PLA0001088 CABLE HOLDER PLA0001106 SLIDER FRAME PLA0001079 SLIDER FRAME PLA0001118 3 BUTTONS FRAME PLA0001111 3 BUTTONS FRAME PLA0001119 4 BUTTONS FRAME PLA0001112 4 BUTTONS FRAME PLA0001120 STYLE BUTTONS PLA0001113...
  • Page 23 PART LIST SCREWS CODE PART-TYPE REFERENCE VTA0001012 GROVER Ø 5mm D1 D2 VTA0001013 WASHER 20x6x3 VTA0001014 WASHER 4x12x1,2 VTA0001023 M3 SELFLOCKING NUT VTA0001032 SCREW 3Mx8 TC VTA0001036 SCREW 3.5x16 TC D1 D3 VTA0001037 SELFTAPPING SCREW 2,9x6,5 TC SP VTA0001051 SCREW 3x13 TC PR VTA0001071 SCREW M5x35 TC VTA0001074...
  • Page 24 Address KORG ITALY S.p.A. Via Cagiata, 85 I-60027 Osimo (An) Italy Web servers www.korg.it www.korg.net www.korg.com © 2002 KORG Italy All Rights Reserved PART NUMBER: MAN0002007 Printed in Italy, January 2002...
