Huawei B68L Quick Start Manual

Wireless gateway
Hide thumbs

Advertisement

B68L Wireless Gateway
Quick Start

Advertisement

loading

  Summary of Contents for Huawei B68L

  • Page 1 B68L Wireless Gateway Quick Start...
  • Page 2 96722754_01...

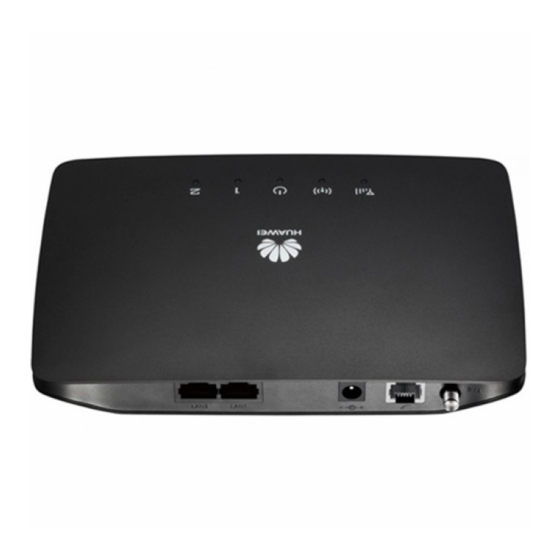

  • Page 3: Product View

    Getting to know your B68L Press and hold for about 3 seconds to power the B68L on or off. Power button Press and hold for 3 or more seconds to active WPS connection when Wi-Fi is turned on. WPS button LAN port Connect to computer, switch, or other LAN device.
  • Page 4 3G/2G data connection. Restoring the default settings of the B68L will erase all previous settings. When the B68L is powered on, use a sharply pointed Reset button object to press and hold for about 3 seconds until all indicators are blinking to restore the B68L to its factory settings.
  • Page 5: Installation

    If required, please contact your local dealer purchase it. You can place the B68L on a flat surface such as a table or a desk, or hang it on a wall. You can also use the table stand of the B68L to place it upright.
  • Page 6: Installing The External Antenna

    The external antenna is an optional accessory, and may not included in the packaging box. If required, please contact your local dealer purchase it.  Before installing the external antenna, ensure that the B68L is powered off and disconnected from the power outlet. ...
  • Page 7: Connecting Cables

    Connecting cables To prevent interference caused by radio signals, place the B68L at least 1 meter (3.28 feet) away from telephone and other electrical devices. Once connected to a power outlet, the B68L automatically powers on. Power adapter Telephone Computer...
  • Page 8: Turning On Wi-Fi

    Save. Recording the SSID and Wi-Fi key The default SSID and Wi-Fi key are printed on the B68L's rear label. To prevent unauthorized parties from accessing your wireless network, it is recommended that you change the SSID and Wi-Fi key from time to time. Log in to the web management page (default address: http://192.168.1.1, default password:...
  • Page 9: Setting Up Wi-Fi Connection From Client

    From the search results, select the wireless network with the same SSID as the B68L, and click Connect. In the Connect to a Network dialog box, enter the B68L's Wi-Fi key, and click OK. Note that the Wi-Fi key is case sensitive.
  • Page 10 SSID as the B68L. In the displayed dialog box, enter the B68L's Wi-Fi key, and click Join. Note that the Wi-Fi key is case sensitive. When a check mark appears next to the B68L's SSID, the Mac is connected to the wireless network.
  • Page 11 SSID as the B68L. In the displayed dialog box, enter the Wi-Fi key, and touch Connect. Note that the Wi-Fi key is case sensitive. When Connected is displayed under the B68L's SSID, the device is connected to the wireless network.
  • Page 12: Setting Up Wi-Fi Connection Through Wps

    Configuring your B68L After a client is connected to the B68L through Wi-Fi or LAN port, launch a browser on the client and visit http://192.168.1.1. Enter the password (admin by default) to log in to the web management page.
  • Page 13: For More Help

    For More Help If you are experiencing any issues with the B68L: See What's this? information on the web management page.  Restart the B68L.  Restore the B68L to its factory settings.  Contact your service provider.  Please visit http://consumer.huawei.com/en/support/hotline for recently updated hotline and email address in your country or region.
  • Page 14: Safety Information

    Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices.
  • Page 15 Ideal operating temperatures are 0°C to 45°C. Ideal storage temperatures are  -30°C to +60°C. Extreme heat or cold may damage your device or accessories. Keep the device and accessories in a well-ventilated and cool area away from  direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.
  • Page 16: Cleaning And Maintenance

    fire, explosion or other hazards. Choose only accessories approved for use with this model by the device  manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area.
  • Page 17: Environmental Protection

    cable, causing the device to malfunction. Before you clean or maintain the device, stop using it, stop all applications, and  disconnect all cables connected to it. Do not use any chemical detergent, powder, or other chemical agents (such as ...
  • Page 18: Reduction Of Hazardous Substances

    REACH and RoHS compliance, please visit the web site http://consumer.huawei.com/certification. EU regulatory conformance Statement Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the declaration of conformity, visit the web site http://consumer.huawei.com/certification.
  • Page 19: Legal Notice

    Caution: Any changes or modifications to this device not expressly approved by Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate the equipment. Legal Notice Copyright ©...
  • Page 20: Import And Export Regulations

    THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
