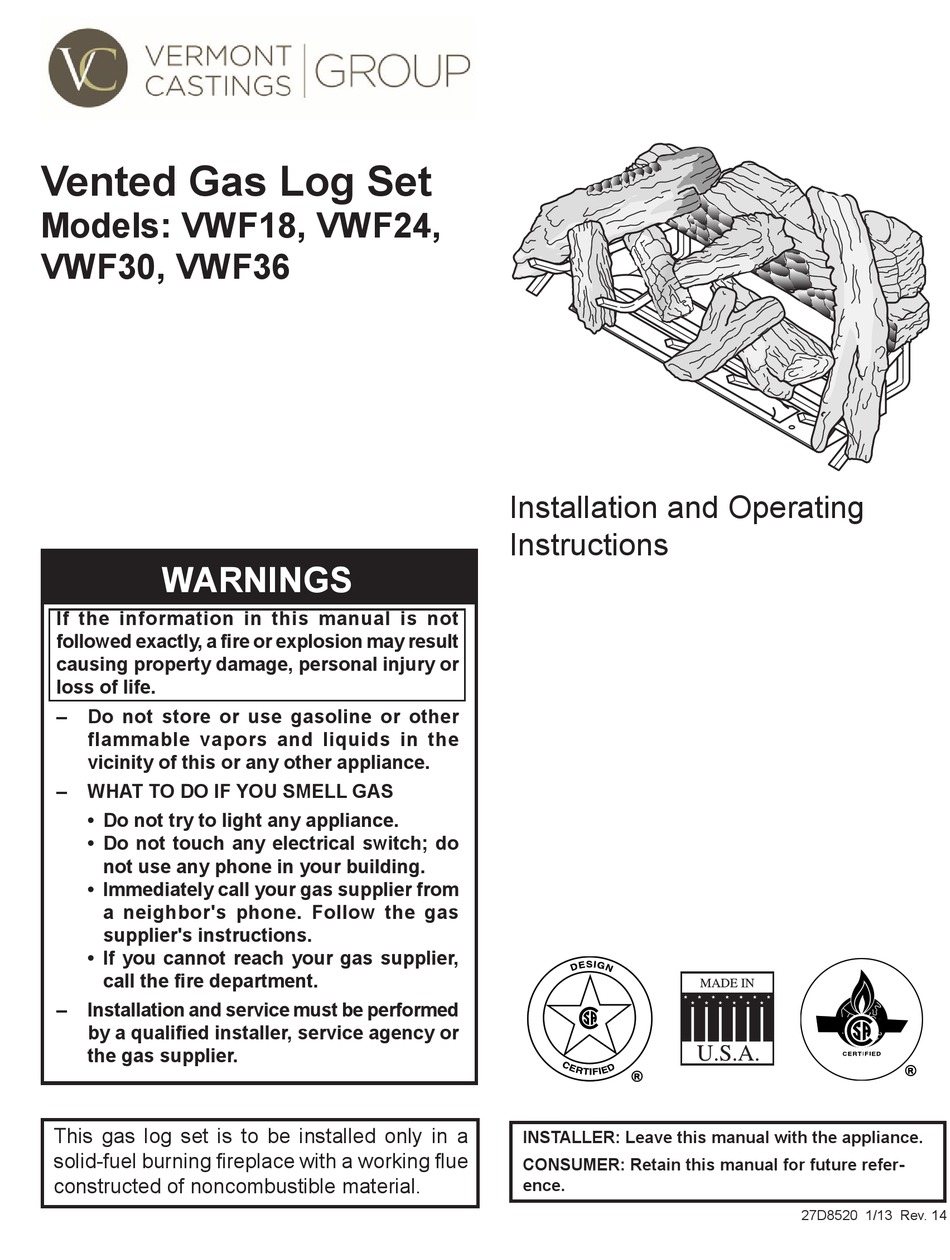

Vented Gas Log Set
Models: VWF18, VWF24,
VWF30, VWF36
WARNINGS
If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or
loss of life.
–
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
–
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
This gas log set is to be installed only in a
solid-fuel burning fireplace with a working flue
constructed of noncombustible material.
Installation and Operating
277300
Instructions
VWF log cover
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future refer-
ence.
27D8520 1/13 Rev. 14
