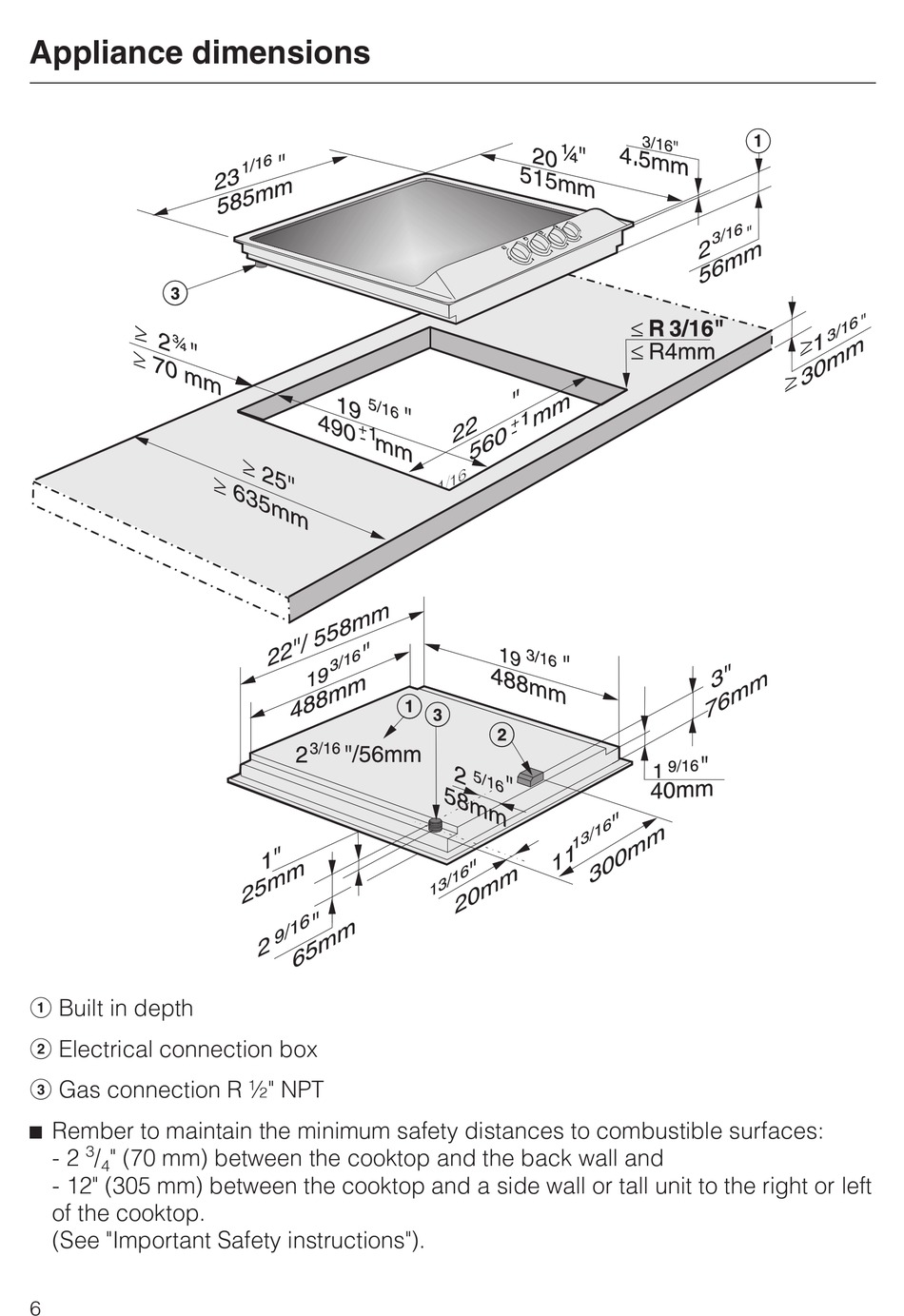

Appliance dimensions
a Built in depth
b Electrical connection box
c Gas connection R ½" NPT
^ Rember to maintain the minimum safety distances to combustible surfaces:
3
- 2
/
" (70 mm) between the cooktop and the back wall and
4
- 12" (305 mm) between the cooktop and a side wall or tall unit to the right or left
of the cooktop.
(See "Important Safety instructions").
6
