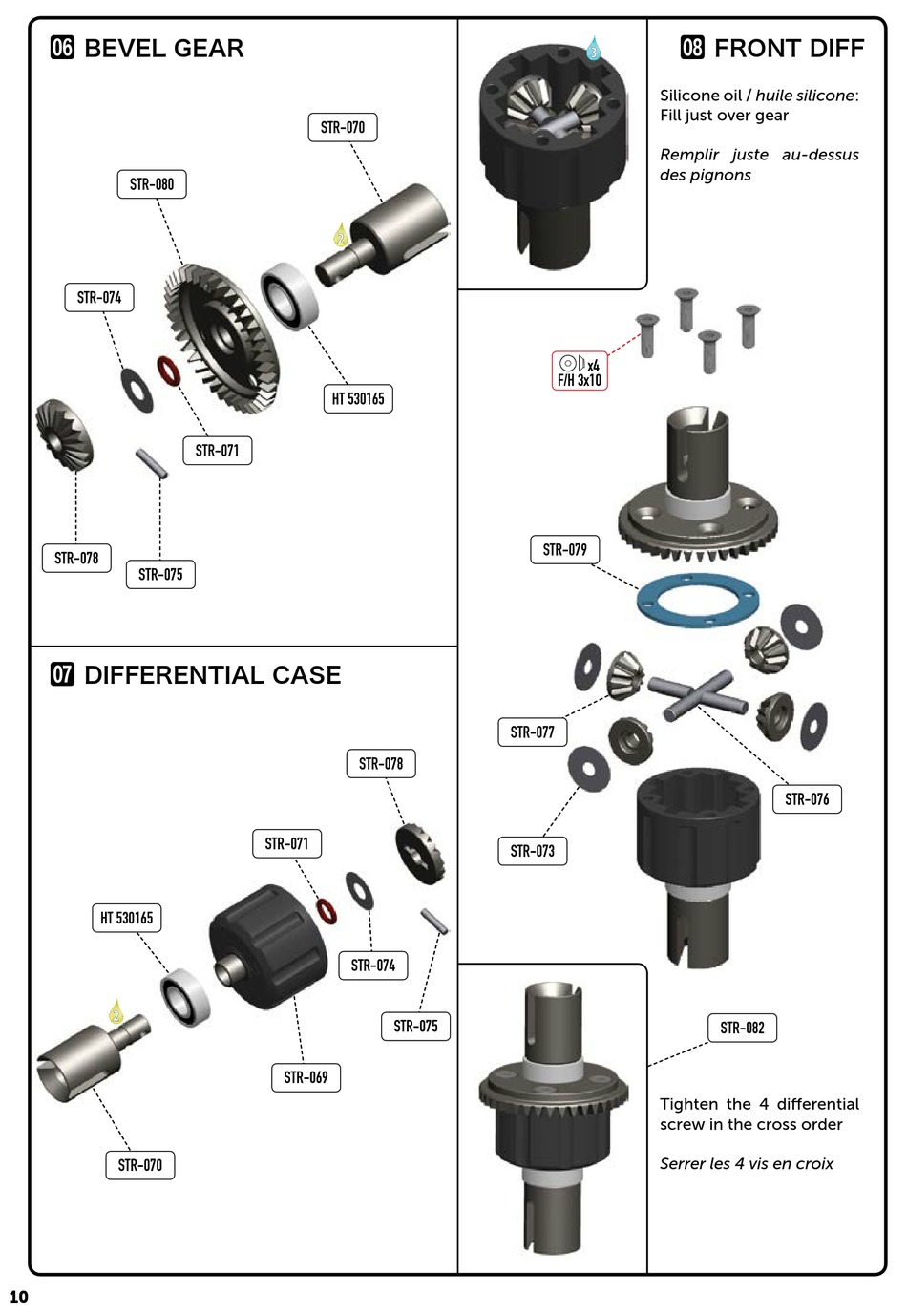

Bevel Gear - Hobbytech Spirit Instruction Manual

⓺

bevel gear

STR-080
STR-074
STR-078
STR-075
柒
differential case
HT 530165
2
STR-070
10
STR-070
2
HT 530165
STR-071
STR-078
STR-071
STR-074
STR-069
F/H 3x10
STR-079
STR-077
STR-073
STR-075
⓼
front diff
3
Silicone oil / huile silicone:
Fill just over gear
Remplir juste au-dessus
des pignons
x4
STR-082
Tighten the 4 differential
screw in the cross order
Serrer les 4 vis en croix
STR-076
