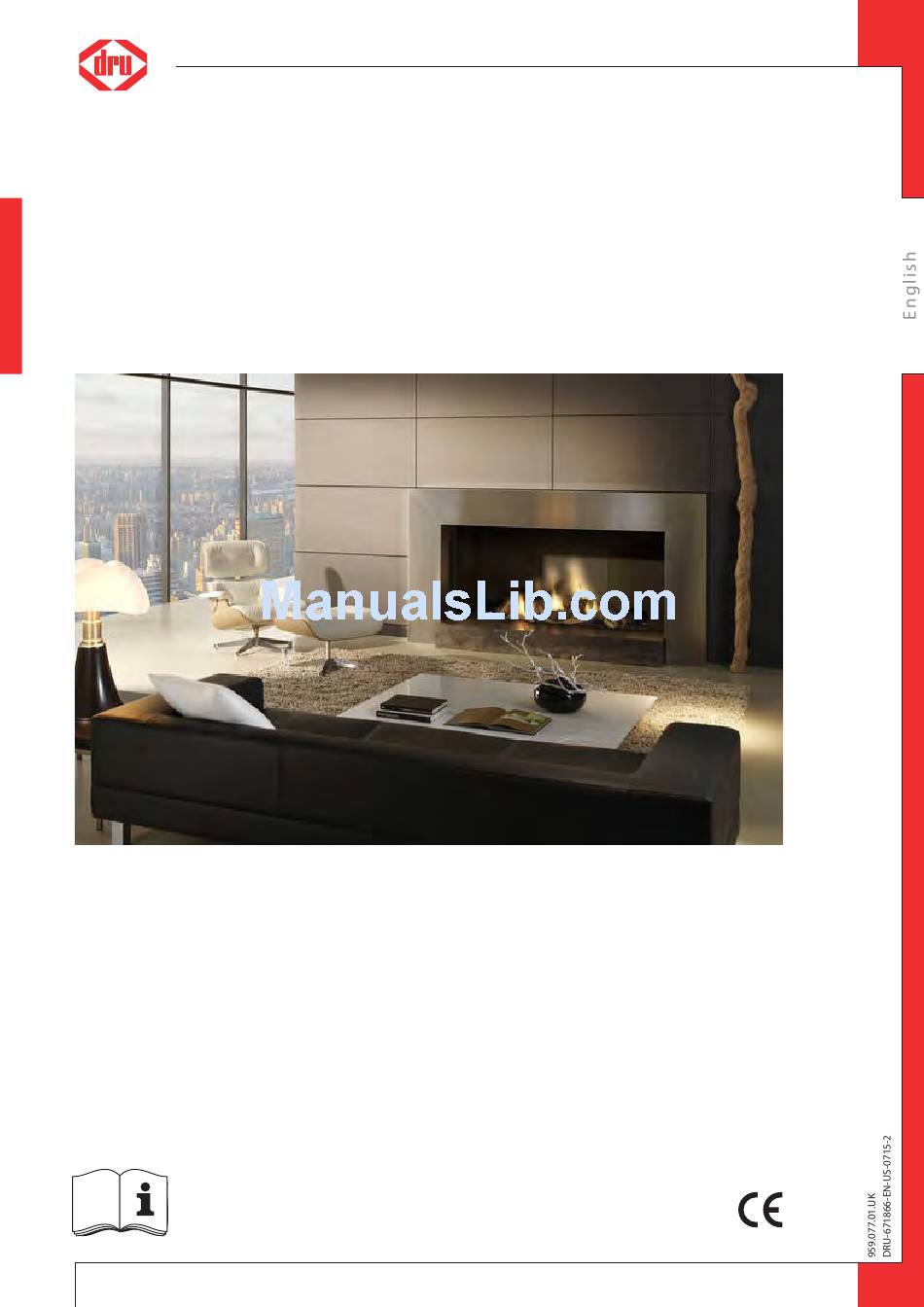

  • Page 1 Cosmo RCH Cosmo Tunnel RCH G20/G25.3 Natural gas Installation manual (UK/IE) Store this document in a safe place...

  • Page 2: Table Of Contents

    I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. Removing the packaging 5.

  • Page 3: Introduction

    Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system® or the DRU Smartvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation.

  • Page 4: Safety

    CE label; Ø if you are installing an appliance with closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;...

  • Page 5: Principle Of Ignition Cycle

    I NS T AL L AT I ON M A N U A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The appliance is off and will be switched on by means of the remote control. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 8A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 7: Placing A Built-In Appliance

    (if applicable) Not all built in appliances by DRU are supplied with a control hatch. If it is not included, this control hatch is available separately. We recommend using the Dru control hatch at all times. In this chapter, it is assumed that the appliance is used with a control hatch.

  • Page 8: Placing The Control Hatch

    The dimensions of the control hatch; see Placing the control hatch section 5.7; • The Dru control hatch is not supplied with all appliances. Nevertheless, we recommend only using a Dru control hatch, if available, except in the case of B appliances.
  • Page 9 I NS T AL L AT I ON M A N U A L Ø Mount the bracket with components to the inner frame (A). Proceed as follows: • Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. •...
  • Page 10 !Caution • Only use the concentric system supplied by DRU This system has been tested in combination with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;...
  • Page 11 The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: • only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery; •...

  • Page 12: Additional Instructions

    5.11 Construction frame The construction frame of the Cosmo RCH can be adapted from the “4S setting” to the “3S setting” (see appendix 3, fig. 2 and 6). The 3S setting allows the bottom side of the pane to connect to the floor or the platform.

  • Page 13: Glass Panes

    I NS T AL L AT I ON M A N U A L 5.12 Glass pane The glass pane must be removed/placed by two persons. !Caution • Avoid damaging the glass panes when removing/placing them; !Caution • avoid/remove fingerprints on the glass panes, as they will burn into the glass. 5.12.1 Removing the glass pane When removing the glass pane, please observe the following steps (see appendix 3, fig.

  • Page 14: Adjustment Of The Appliance

    I NS T AL L A TI O N MA N U A L 5.13 Adjustment of the appliance The appliance has to be set in such a way that it works correctly in combination with the used discharge system. For that purpose, it is possible to place a restrictor slide.

  • Page 15: Placing The Wood Set

    I NS T AL L AT I ON M A N U A L 5.14 Placing the wood set The appliance is supplied with a wood set. • The figures do not always show the correct colours. !Caution • Before placing the wood set in a Cosmo Tunnel RCH, first determine what is the front of the appliance. Make sure the positions of the burners are exactly the same as indicated in figure 18 in appendix 3.

  • Page 16: Control

    I N ST A L L A T I ON M A NU AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling a receiver.

  • Page 17: Final Inspection

    Such a connection can only be established with a communication module (see Appendix 3, fig. 35 (W)). This module can be ordered from DRU. This communication module translates the ‘modbus’ protocol from the Domotics system into a wireless signal to the receiver.

  • Page 18: Gas Pressure/Line-Pressure

    I NS T AL L A TI O N MA N U A L 7.2 Gas pressure/line-pressure The burner pressure is set at the factory; see data plate. The line-pressure in house installations must be checked, because it can be wrong. !Caution Ø...

  • Page 19: Flame Picture

    I NS T AL L AT I ON M A N U A L Ø Check operation of the main burner from a cold condition. Ø If sparks are determined between the ignition electrodes, the main burner should burn within a few seconds. !Tip The flame picture and a good flame transfer can only be properly judged if the glass window is installed.

  • Page 20: Delivery

    I NS T AL L A TI O N MA N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it into operation, the safety measures, the operation of the remote control and the annual maintenance (see the User Manual).

  • Page 21: Appendix 1 Malfunctions

    I NS T AL L AT I ON M A N U A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact...
  • Page 22 IN S TA L L A TI O N M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.

  • Page 23: Appendix 2 Tables

    I NS T AL L AT I ON M A N U A L Appendix 2 Tables Table 1: Parts included with the delivery Number Part Wood set Control hatch Control hatch manual Installation manual User manual Restrictor slide Back-up self-tapping screws for benefit of glass pane assembly Socket spanner 8 mm Remote control Mains cable NL and UK...
  • Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Cosmo RCH / Cosmo Tunnel RCH Type of appliance Built-in Combustion Closed combustion Supply and discharge system Concentric 200/130...
  • Page 25 I NS T AL L AT I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25.3...
  • Page 26 IN S TA L L A TI O N M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length no bends 2 bends 3 bends...

  • Page 27: Appendix 3 Figures

    I NS T AL L AT I ON M A N U A L Appendix 3 Figures 1839 1839 1988 1988 1774 1774 38C-2145 /1 38C-2146 /1 Cosmo RCH Cosmo Tunnel RCH min. 15 max. 100 min. 711 Cosmo Front RCH Tot.min. 520cm min. 710 Cosmo Tunnel RCH min. 350...
  • Page 28 I NS T AL L A TI O N MA N U A L 38C-1868 d /0...
  • Page 29 I NS T AL L AT I ON M A N U A L 1x90° 38c-744zp 0 - 6m 4x M 38C-2153 /0...
  • Page 30 IN S TA L L A TI O N M A N U A L 38C-2148 /0 38C-2149 /0...
  • Page 31 I NS T AL L AT I ON M A N U A L 38C-2150 /0 38C-2151 /0...
  • Page 32 IN S TA L L A TI O N M A N U A L 38C-2152 /0 38P-0521/0 38P-0522/0 38p-0022 38p-0023...
  • Page 33 I NS T AL L AT I ON M A N U A L 38P-0511/0...
  • Page 34 IN S TA L L A TI O N M A N U A L 38P-0512 /1 38P-0513/0 38P-0514/0 38P-0515/0...
  • Page 35 I NS T AL L AT I ON M A N U A L 38P-0516/0 38P-0517/0 38P-0518/0 38P-0519/0...
  • Page 36 IN S TA L L A TI O N M A N U A L 38P-0520/0 38P-0523/0...
  • Page 37 I NS T AL L AT I ON M A N U A L 957.645.01 38C-2124/0...
  • Page 38 IN S TA L L A TI O N M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router 38p-0320 /0 – 0 – 3V...
  • Page 39 I NS T AL L AT I ON M A N U A L І І             І     І     І  ...
  • Page 40 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
