Wpa-Enterprise Authentication - D-Link DAP-1353 User Manual

Section 3 - Configuration

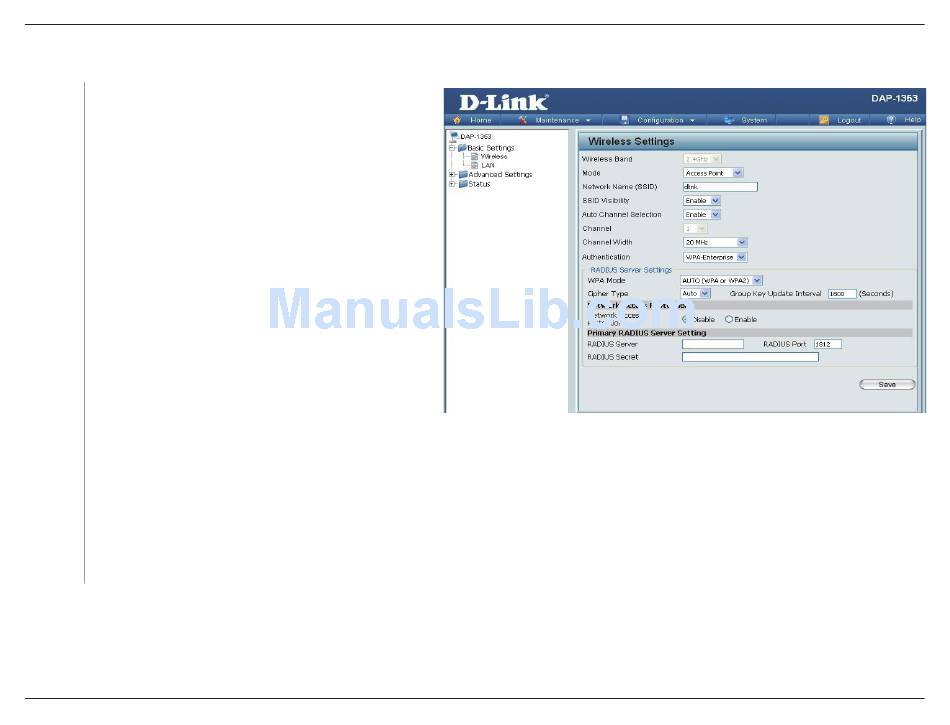

WPA Mode:
When WPA-Enterprise is selected, you must also
select a WPA mode from the pull-down menu: AUTO
(WPA or WPA2), WPA2 Only, or WPA Only. WPA
and WPA2 use different algorithms. AUTO (WPA or
WPA2) allows you to use both WPA and WPA2.
Cipher Type: When WPA-Enterprise is selected, you must also
select a cipher type from the pull-down menu: Auto,
AES, or TKIP.
Group Key Select the interval during which the group key will
be valid. 1800 is the recommended value as a lower
Update
interval may reduce data transfer rates.
Interval:
Network
Enable or disable Microsoft Network Access
Access
Protection.
Protection:
RADIUS
Enter the IP address of the RADIUS server.
Server:
RADIUS Enter the RADIUS port.
Port:
Enter the RADIUS secret.
RADIUS
Secret:
D-Link DAP-1353 User Manual

WPA-Enterprise authentication

26
