Integral pedal braking system (02_13, 02_14, 02_15)

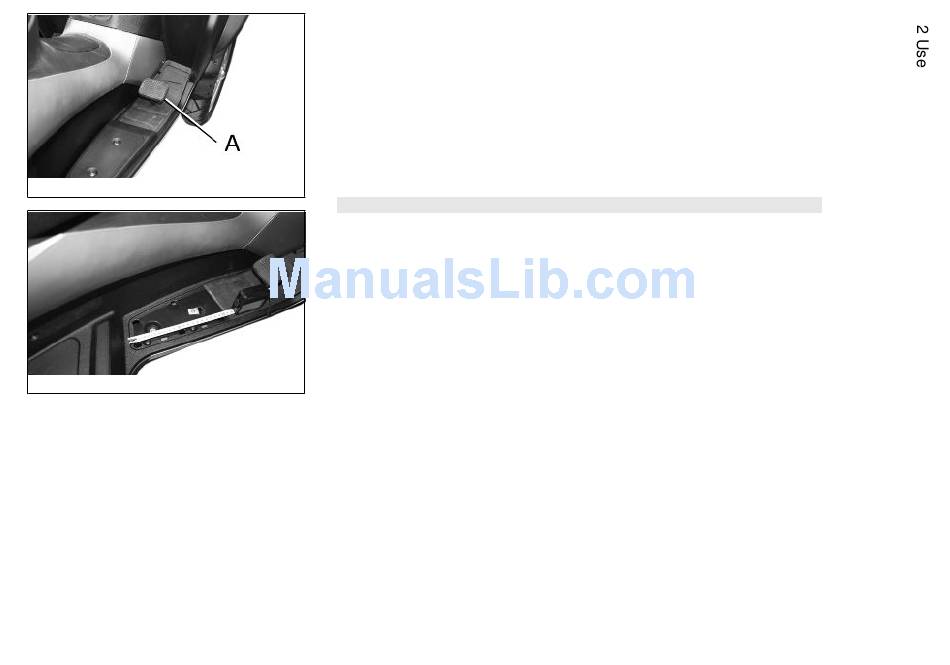

The vehicle is equipped with an integral braking system controlled by the brake pedal
"A"located on the right hand footrest. Operating this pedal brakes both the front brake
discs and the rear brake disc simultaneously.
The brake pedal functions simultaneously with the conventional braking system. As a
result, any of the three braking controls may be used indifferently.
An optional "heelrest" kit is also available for optimised rider comfort. To install the
heelrest, remove the rubber footrest mat and cut off approximately 20 cm of the mat.
Using the screws, spacer and clamps provided, fix the plate as shown in the diagram.
02_13
CAUTION
AS THE SYSTEM IS LINKED TO THE CONVENTIONAL BRAKE PUMPS, OPER-
ATING HANDLEBAR CONTROLS AND FOOT PEDAL MAY CAUSE A PERCEP-
TIBLE MOVEMENT OF THE BRAKE LEVERS AND VICE VERSA.
THIS IS NORMAL.
02_14
