Summary of Contents for Gallagher W210
- Page 2 In accordance with the Gallagher policy of continuing development, design and specifications are subject to change without notice.
-
Page 3: Table Of Contents
Gallagher Standard Loadbars ................16 Gallagher Heavy Duty Loadbars ................16 Gallagher Super Heavy Duty Loadbars ..............17 Gallagher Suspension Load Cell 250 kg .............. 18 Gallagher Suspension Load Cell 500 kg .............. 18 Specifications ......................19 ... -
Page 5: Introduction

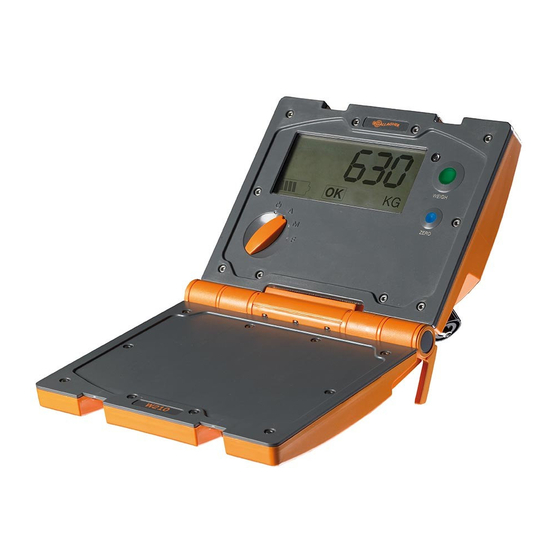

3E2361 Weigh Scale W210 User Manual INTRODUCTION Thank you for purchasing the Gallagher Weigh Scale W210 Weigh Scale. Gallagher Group Limited have been making agricultural weighing equipment for over 20 years and in that time have earned a reputation for quality equipment that withstands tough agricultural conditions. -
Page 6: Care And Maintenance
3E2361 Weigh Scale W210 User Manual CARE AND MAINTENANCE The Weigh Scale W210 is a tough and reliable product designed for use in typical livestock environments. However, proper care and maintenance can extend its life. Listed below are guidelines for keeping the Weigh Scale in good condition: •... -
Page 7: Installation
3E2361 Weigh Scale W210 User Manual INSTALLATION Installing the Weigh Scale bracket The bracket can be mounted on a flat vertical surface, or on a round post. To mount the bracket on a flat vertical surface, for example a square post or board, use the outer holes. -
Page 8: Installing The Loadbars
Connect the loadbar cables to the Weigh Scale. Note: If you are using non Gallagher, loadbars ensure the loadbars are correctly calibrated. Installing the Weigh Scale The Weigh Scale can be placed on a table top or mounted on the Weigh Scale bracket supplied. -
Page 9: Power And Batteries
3E2361 Weigh Scale W210 User Manual POWER AND BATTERIES During a weighing session, the Weigh Scale can be powered by its internal battery alone or by its internal battery and either the battery charger or an external 12 volt battery. -
Page 10: Battery Charge Status
3E2361 Weigh Scale W210 User Manual Using an external 12 volt battery To charge the Weigh Scale's internal battery using an external 12 volt battery, follow these steps: Connect the supplied black and red battery leads to the Weigh Scale. - Page 11 3E2361 Weigh Scale W210 User Manual Low voltage shutdown When the battery charge drops to a critical level, the Weigh Scale will shut down. At this stage it is necessary to recharge the battery.
-
Page 12: Getting Started
3E2361 Weigh Scale W210 User Manual GETTING STARTED For best performance, charge the internal battery for at least five hours before use. To obtain the most accurate results: • ensure that the animal is completely on the platform; and •... -
Page 13: Weigh Scale
If necessary, connect either the battery charger or an external 12 volt battery. Select the weighing mode. The Weigh Scale W210 comes with three different weighing modes. To select the required weighing mode, rotate the mode select switch located on the left side of the Weigh Scale. -
Page 14: Automatic Weighing
3E2361 Weigh Scale W210 User Manual AUTOMATIC WEIGHING Overview Automatic mode is recommended for facilities that allow a smooth flow of animals across the platform. In Automatic mode, the Weigh Scale starts weighing the animal as it steps onto the platform. After the Weigh Scale has determined an accurate weight, it will lock on to the measurement and display it on-screen. -
Page 15: Using Automatic Weighing
3E2361 Weigh Scale W210 User Manual Using Automatic Weighing Check that the mode select switch is set to A. Check that the weight displayed is zero and that the icon is displayed. If it is not, press the blue Zero button. -
Page 16: Manual Weighing
3E2361 Weigh Scale W210 User Manual MANUAL WEIGHING Overview Manual mode is recommended for facilities that do not allow a smooth flow of animals across the platform or where the animals are restless. This mode allows the operator to decide when the measurement is made. -
Page 17: Fine Weighing
3E2361 Weigh Scale W210 User Manual FINE WEIGHING Overview Fine mode is recommended for weighing small static loads such as fleeces or produce. In Fine mode, the Weigh Scale uses finer weight increments and zero tracking is automatically switched off. -
Page 18: Weight On Weigh Scale Memory
3E2361 Weigh Scale W210 User Manual WEIGHT ON WEIGH SCALE MEMORY The Weigh Scale will remember the weight on the platform at the time it is switched off. The weight will be restored to the display when the Weigh Scale is switched back on. -
Page 19: Zero Tracking
3E2361 Weigh Scale W210 User Manual ZERO TRACKING During a weighing session, mud, dung and other matter can accumulate on the weighing platform. After each animal leaves the platform, the zero tracking feature attempts to compensate for the weight of this accumulation and, if it succeeds, sets the Weigh Scale to zero. -
Page 20: Loadbar And Platform Options
The Weigh Scale W210 Scale recognises most commonly available Loadbar sets. To connect to some Loadbar sets, adapter cables may be required. If you are not using Gallagher Loadbars, a calibration check will be required prior to first use. Gallagher Standard Loadbars Features •... -
Page 21: Gallagher Super Heavy Duty Loadbars
3E2361 Weigh Scale W210 User Manual • Set them and forget them for permanent installation under large crushes. Talk to your Gallagher dealer about the best platform and/or crate for your requirements. Gallagher Super Heavy Duty Loadbars Features • 4500 kg weighing capacity •... -
Page 22: Gallagher Suspension Load Cell 250 Kg
3E2361 Weigh Scale W210 User Manual Gallagher Suspension Load Cell 250 kg Features: • 250 kg capacity loadcells • Replaces mechanical scale for hanging crates • Compact sturdy design • No rubber to delaminate or rot • Spiral spring metal reinforced cable •... -
Page 23: Specifications
3E2361 Weigh Scale W210 User Manual SPECIFICATIONS Weigh Scale W210 Dimensions Metric Imperial Length 232 mm 9.25" Width 212 mm 8.5" Height 90 mm 3.5" Weight 2 kg 4.4 lb General Operating Temperature -20º to 50º C -5º to 120º F Accuracy ±... -
Page 24: Weight Increments
3E2361 Weigh Scale W210 User Manual Weight increments For Gallagher Loadbar sets, the weight increments are preset as shown in the table. For other loadbar sets talk to your Gallagher dealer. Gallagher Heavy Duty Gallagher Loadbars (3500 kg) Weight Range... -
Page 25: Suspension Load Cell Weight Increments
3E2361 Weigh Scale W210 User Manual Suspension load cell weight increments For a suspension load cell, the weight increments are preset as shown in the table. Gallagher Suspension Load cells Weight Range (250 & 500 kg) Automatic or Manual modes: 0 - 49.9 kg... -
Page 26: Waste Electrical And Electronic Equipment
3E2361 Weigh Scale W210 User Manual WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
