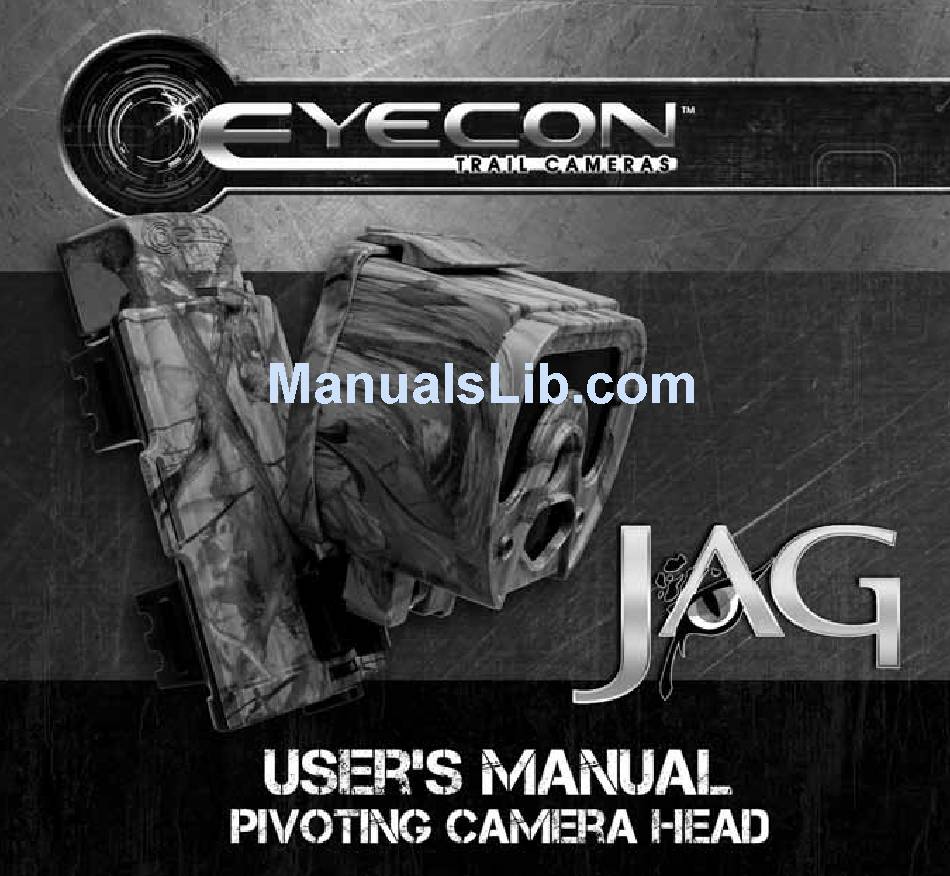

- Page 1 Model eC2500...
-
Page 2: Table Of Contents
IteMs RequIRed foR staRtup ................3 CaMeRa dIagRaMs ....................4-5 BatteRy InstallatIon .....................6 MeMoRy CaRd InstallatIon ..................7 quICk setup ........................8 advanCed settIngs & funCtIons ................8 vIewIng sCReen InfoRMatIon & funCtIons ...........12 MountIng & fIeld setup..................13 Red laseR ........................15 CaMeRa CaRe ......................16 tRouBleshootIng ....................17 waRRanty InfoRMatIon ..................18 pRoduCt RegIstRatIon CaRd ................20... -
Page 3: Items Required For Startup
IteMs RequIRed foR staRtup: • 10- AA Cell Alkaline Batteries (Sold separately) • 1- SDHC Storage Card (up to 32GB) (Sold separately) NOTE: Eyecon™ Trail Cameras can accept SD cards up to 32GB, but testing shows that maximum performance is obtained at 16GB. • 1- External SD memory card reader for viewing photos/videos. (Sold separately) • optIonal: 1 Model ECA100 Extenda-Life rechargeable lithium battery pack. -
Page 4: Camera Diagrams
Dual Locking CAUTION LASER RADIATION DO NOT STARE INTO BEAM Bark Biter Bark Biter Ambient Red Laser Camera Head Light Sensor* Light Locking Screw *This opening must be keep free from dust or dirt and should never be covered. PLEASE REGISTER TO ACTIVATE YOUR PRODUCT’S WARRANTY. - Page 5 Dual Locking Tab SD Card Slot Unlocked Dual Locked Plus Minus Power On/Off Arrow Arrow Button Button AA Battery Compartment Lock Case Door Only Bottom of camera PLEASE REGISTER TO ACTIVATE YOUR PRODUCT’S WARRANTY.
-
Page 6: Battery Installation
Check your battery indicator after brand new batteries are installed, it should register full bars. If not you may have a battery in backwards. If usIng eyeCon extenda-lIfe BatteRy paCk ™... -
Page 7: Memory Card Installation
MeMoRy CaRd InstallatIon: to Install the sd CaRd (Sold separately) 1. To access the user interface and insert a SD card, lift up on the front of the locking latch located on top of the camera head. After the latch is disengaged, the camera head should pivot down freely. -
Page 8: Quick Setup
quICk setup: Your Jag will come with the following standard options already preset so that quality photos may be taken right out of the box without changing any settings. Mode: Photo BuRst: 3 photo-burst ResolutIon: 5mp delay: 10 sec If you wish to customize your own settings proceed to Advanced Settings &... - Page 9 CloCk: This will set the Time, Date and Year that will be stamped onto the bottom of your photos. CloCk: Use either the + or – arrows and scroll up until the “Clock” has a black box around it. Press the SET button until the “Hour” setting turns red. Use the + or – arrows again to set the correct Hour, press the SET button and move on to get the “Minutes”...
- Page 10 setting. Press the set button again to lock in the setting that would switch back to the black box with white letters. You have now locked in your camera Mode setting and returned to the camera option column. BuRst: Burst selects how many photo images you would like the camera to take in a row before set trigger delay kicks in.
- Page 11 options changes to a white box with black letters. Use the + or – arrows to select the desired Res setting. Press the set button again until the setting you selected switches back to the black box with white letters. You have now locked in your Res setting and have returned to the camera options column.
-
Page 12: Viewing Screen Information & Functions
vIewIng sCReen InfoRMatIon & funCtIons vIew IMages and vIdeo: In the bottom right hand corner of the viewing screen there will be a black box which will display the total number of still images or videos on the SD card. note: In the upper right hand corner of the screen there is an icon that represents either Photo or Video. -
Page 13: Mounting & Field Setup
appear. You will be asked, “Confirm Deleting All Files. ” At this point you decide either to delete or cancel. If you choose to cancel, use either of the + or – arrows until “NO” turns blue. Press the set button again to cancel the delete process and bring you back to the main viewing screen and current photo. - Page 14 • To tilt and release the head simply loosen the spring-loaded tension screw located on the right side of the camera head. • Note: make sure the locking screw located on the bottom right side of the camera head is released before you try to pivot the head. Loosen the locking screw by turning it out or counter clockwise until the camera head moves freely.
-
Page 15: Red Laser
To wake the camera up, simply touch the power button. Do not hold the button down or the camera will shut off. Note: If the camera is in the process of taking still photos or videos, it must first complete the process before it will wake up. Red laseR: The red laser light or walk test light on your Jag is used to help determine your camera is set at the proper height and is pointed in the right direction. -
Page 16: Camera Care
MoIstuRe: Although all Eyecon™ Trail Cameras have a very durable plastic composite case which also makes them water resistant even under the most extreme weather conditions, care must be taken to prevent water damage. -
Page 17: Troubleshooting
SDHC card we recommend that you replace the card with a new SDHC card or one from a different EYECON™ Trail Camera that you know works. This will help determine whether the problem is the SDHC card or the camera. We do recommend using cards that have been used in cameras from different manufacturers and/or different styles of cameras unless a Full Format on a PC is done to those cards. -
Page 18: Warranty Information
RegIstRatIon Eyecon Trail Camera’s 1 Year Limited Warranty: For a period of 365 days after purchase, Eyecon Trail Cameras will, at its discretion, repair or replace this product for any reason of any defect or malfunction. This warranty is only valid if the product is used for the purpose intended and has not been tampered with and/or physically damaged in any way. - Page 19 3. Remove your SD card and batteries (any items other than original camera casing will be destroyed and not returned with new item) 4. Include a copy of your original receipt, your RA#, and a check or credit card number for $20.00 shipping/handling in the box. 5. Ship the box prepaid to: Eyecon Trail Cameras, Camera Returns, 1905 1st Ave. N., Windom, MN 56101. Make sure to put the RA# in bold letters on the outside of the box. PLEASE REGISTER TO ACTIVATE YOUR PRODUCT’S WARRANTY.
-
Page 20: Product Registration Card
To activate your product’s warranty, please mail in your registration card or submit it online at www.EyeconTrailCameras.com pRoduCt RegIstRatIon Product Purchased Model Number Serial Number Owner’s Name Street Address City State Zip Code E-mail Address Phone Owners Age (optional) Sex (optional) Date Purchased Purchased From (Dealer Name) How did you hear about us:... - Page 21 OWNER’S RECORD Product Name Model Number Serial Number Purchased From Purchased Date you Must RetuRn the CoMpleted RegIstRatIon CaRd aBove WITHIN (30) DAYS OF THE PURCHASE IN ORDER TO ACTIVATE THE LIMITED waRRanty CoveRage. (Make sure to include date purchased on the card!) Remember to activate your product’s warranty? See warranty information and registration instructions on page 18 and then complete and mail in the registration card on page 20 or submit it online at: www.EyeconTrailCameras.com...
- Page 22 notes: PLEASE REGISTER TO ACTIVATE YOUR PRODUCT’S WARRANTY.
- Page 23 PLEASE REGISTER TO ACTIVATE YOUR PRODUCT’S WARRANTY.
- Page 24 PO Box 454 • Windom, MN 56101 844-745-7723 • 507-832-8322...
