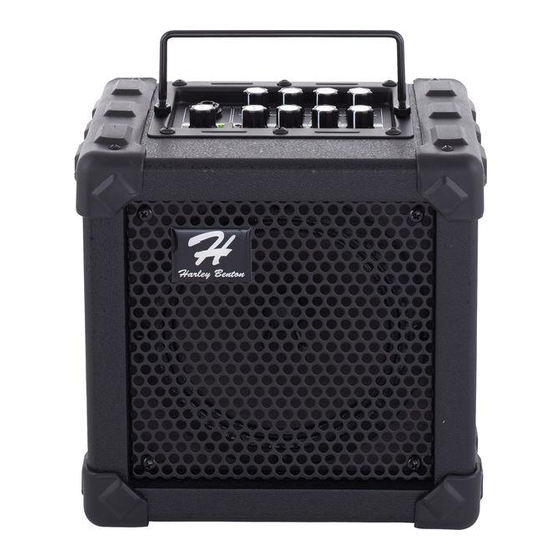

CG-10X Street
guitar combo
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG-10X Street and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harley Benton CG-10X Street

Summary of Contents for Harley Benton CG-10X Street

  • Page 1 CG-10X Street guitar combo user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.07.2015, ID: 139030...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features............................... 11 Installation and starting up........................ 12 4.1 Pin assignment..........................13 4.2 Battery operation..........................16 Components and functions........................ 18 Technical specifications........................24 Protecting the environment......................25 CG-10X Street...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. CG-10X Street...

  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐ tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 7 Always use proper ready-made insulated two-wire mains cabling (power cord). Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. CG-10X Street...
  • Page 8 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 9 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. CG-10X Street...
  • Page 10 Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.

  • Page 11: Features

    5 watt output power (RMS) in battery operation 6.5" speaker 2 channels 3-band EQ with sweepable mids Chorus and Delay effects Adjustable microphone input MP3 input Headphones outlet Charging function with indicator for rechargeable batteries in mains operation CG-10X Street...

  • Page 12: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 13: Pin Assignment

    4.1 Pin assignment 1/4" phone sockets for signal in Drawing and table indicate the pin assignment of the 1/4" TS phone plugs to be used for con‐ and outputs necting the INPUT and MIC IN sockets. Signal Ground, shielding CG-10X Street...
  • Page 14 Installation and starting up Drawing and table indicate the pin assignment of a 1/4" TRS phone plug to be used for con‐ necting the PHONE output socket. Signal left channel Signal right channel Ground, shielding We recommend headphones with a stereo plug in order to drive right and left head‐ phone speakers.
  • Page 15 MP3 input socket. Signal left channel Signal right channel Ground, shielding We recommend the MP3 connection with a stereo plug to have both channels trans‐ mitted. Although stereo devices can be connected, the internal signal processing is done in mono. CG-10X Street...

  • Page 16: Battery Operation

    Installation and starting up 4.2 Battery operation You can operate the device independently from the mains power supply with rechargeable batteries. Rechargeable batteries can be charged in the device during mains operation. NOTICE! Possible damages by using non-rechargeable batteries When using non-rechargeable batteries, dangerous corrosive substances may leak.
  • Page 17 Insert 10 × 1.5 V batteries (size AA) according to the layout plan shown on the cover. Make sure to observe the correct polarity, otherwise the device will not work and can be damaged. Refit the battery compartment cover and secure it with the two thumbscrews. CG-10X Street...

  • Page 18: Components And Functions

    Components and functions Components and functions Top panel guitar combo...
  • Page 19 Use this control to adjust the centre frequency for the mid control in a range of 200 Hz to 5 kHz. 6 TREBLE Control to attenuate or increase the high frequencies in the 3-band EQ by ± 15 dB. CG-10X Street...
  • Page 20 Components and functions 7 DELAY Use this control to set the intensity of the DELAY effect. In OFF position, the effect is disabled. 8 CHORUS Use this control to set the intensity of the CHORUS effect. In OFF position, the effect is disabled. 9 LEVEL This is the volume control for channel B.
  • Page 21 Components and functions Rear panel CG-10X Street...
  • Page 22 Components and functions 14 POWER Use the mains switch to turn the unit on or off. 15 CHARGE This charge indicator lights up, when the chargeable batteries inserted in the battery compartment are being charged. 16 PHONE 1/4" phone socket for headphones. If you connect headphones, the internal speaker is disconnected. To avoid annoying noise, turn the volume control of the currently activated channel down before plugging head‐...
  • Page 23 Components and functions 19 MIC VOL This control sets the microphone volume. 20 Use the included mains cable to connect the power connector of the device to the mains electricity supply. CG-10X Street...

  • Page 24: Technical Specifications

    Technical specifications Technical specifications Input impedance –10 dBu / 1 MΩ Output power 10 W (RMS) in mains operation 5 W in rechargeable battery operation Speakers 1 × 6.5" speaker, 4 Ω Operating voltage AC 220 – 240 V , 50/60 Hz 10 x 1.5 V rechargeable batteries, size AA Power consumption 18 W (RMS)

  • Page 25: Protecting The Environment

    Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐ teries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. CG-10X Street...
  • Page 26 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
