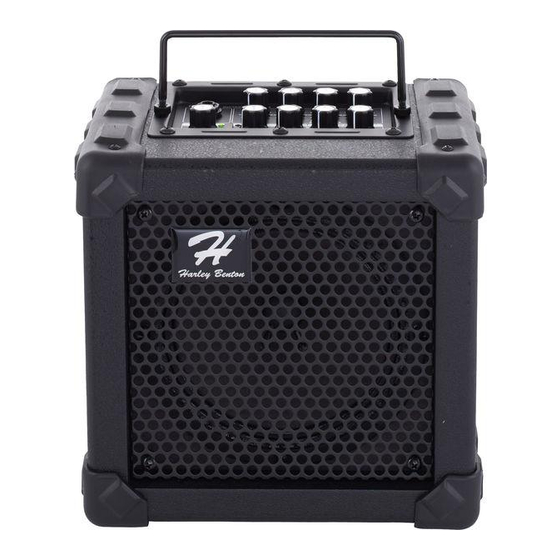

CG-10X Street
guitar combo
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG-10X Street and is the answer not in the manual?

Questions and answers

Summary of Contents for Harley Benton CG-10X Street

  • Page 1 CG-10X Street guitar combo user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 21.10.2016, ID: 139030 (V2)
  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features............................... 12 Installation and starting up........................ 13 4.1 Pin assignment..........................14 4.2 Battery operation..........................17 Components and functions........................ 19 Technical specifications........................25 Protecting the environment......................26 CG-10X Street...
  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.
  • Page 5 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. CG-10X Street...
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐ tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 7 Always use proper ready-made insulated two-wire mains cabling (power cord). Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. CG-10X Street...
  • Page 8 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 9 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. CG-10X Street...
  • Page 10 Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.
  • Page 11 Store the equipment at a tempera‐ ture between 10 °C and 32 °C in as dry an environment as possible. During extended storage periods, charge the batteries to 50 % approximately every three months. CG-10X Street...
  • Page 12: Features

    Features Features Special features of the device: Mains and battery operation 10 watt output power (RMS) in mains operation 5 watt output power (RMS) in battery operation 6.5" speaker 2 channels 3-band EQ with sweepable mids Chorus and Delay effects Adjustable microphone input MP3 input Headphones outlet...
  • Page 13: Installation And Starting Up

    Take care when running the cables to prevent tripping hazards. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. CG-10X Street...
  • Page 14: Pin Assignment

    Installation and starting up 4.1 Pin assignment Jack plug for signal inputs and The figure and the table show the pin assignment of the ¼-inch (6.35-mm) jack plugs (mono) outputs for the input (INPUT) and the microphone input (MIC IN). Signal Ground, shielding guitar combo...
  • Page 15 The figure and the table show the pin assignment of the ¼-inch (6.35-mm) jack plugs (stereo) for the headphones output (PHONE). Signal left channel Signal right channel Ground, shielding We recommend earphones with stereo jack plugs providing a signal to both ears. The signal of the amplifier is mono CG-10X Street...
  • Page 16 Installation and starting up The figure and the table show the pin assignment of the ¼-inch (3.5-mm) jack plugs (stereo) for the MP3 input (MP3). Signal left channel Signal right channel Ground, shielding We recommend the MP3 connection via ¼-inch (3.5-mm) jack plugs so that both channels can be played.
  • Page 17: Battery Operation

    LED fades. To avoid overcharging of the batteries, take the batteries out of the battery compartment or disconnect the device from the mains supply and run it in battery mode. We recommend using Ni-MH-batteries (nickel-metal hydride). Maximum operation time is approx.10 hours. CG-10X Street...
  • Page 18 Installation and starting up Inserting batteries For this purpose, remove the two thumb screws on the bottom side of the device and remove the flap of the battery compartment. Insert batteries 10 × 1,5 V batteries (size AA) according to the location plan on the flap.
  • Page 19: Components And Functions

    Components and functions Components and functions Top panel CG-10X Street...
  • Page 20 Components and functions 1 INPUT 1/4" TS phone socket for the input signal from your instrument. 2 CHA This LED lights up when channel A is activated. 3 BASS Control to attenuate or increase the low frequencies in the 3-band EQ by ± 15 dB. 4 MIDDLE Control to attenuate or increase the mid frequencies in the 3-band EQ by ±...
  • Page 21 Use this control to adjust the input gain for channel B and, thus the overdrive level of the sound. 11 SELECT Channel selector. Channel A delivers clean sounds, channel B provides distorted sounds. 12 VOLUME This is the volume control for channel A. 13 CHB This LED lights up, when channel B is activated. CG-10X Street...
  • Page 22 Components and functions Rear panel guitar combo...
  • Page 23 17 MP3 You can connect MP3 / CD players or the like to this 1/8" mini phone socket for playback through this amp. 18 MIC IN Here you can connect a dynamic microphone for playback through this amp. CG-10X Street...
  • Page 24 Components and functions 19 MIC VOL This control sets the microphone volume. 20 Use the included mains cable to connect the power connector of the device to the mains electricity supply. guitar combo...
  • Page 25: Technical Specifications

    Operating supply voltage AC 230 V 50 Hz 10 × 1,5 V rechargeable batteries, size AA Power consumption 18 W (RMS) Dimensions (W × H × D) 235 mm × 235 mm × 155 mm Weight 3,4 kg (without batteries) CG-10X Street...
  • Page 26: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 27 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CG-10X Street...
  • Page 28 Notes guitar combo...
  • Page 29 Notes CG-10X Street...
  • Page 30 Notes guitar combo...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
