Escort PASSPORT X70 Quick Refence Manual

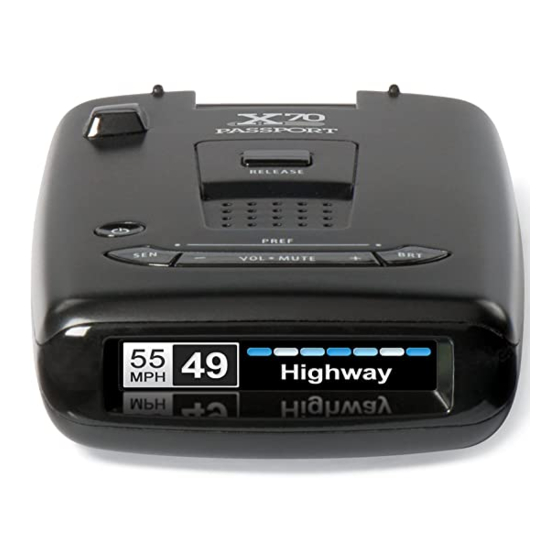

Controls & Features
Mount Release
Press to remove device
from mounting
bracket
Power
Press to turn
PASSPORT X70 on or off
Sensitivity (SEN) Brightness (BRT)
Press to adjust detector Press to adjust display
sensitivity (Highway, brightness (Min, Med,
Auto, Auto NoX) Max, Dark)
Vol•Mute
Press to mute an alert;
Press and hold + or −
to adjust volume
Display
Alert area
Display
• When connected to ESCORT Live,
the Speed limit data and actual
speed will display on screen. *
*
Requires Optional SmartCord Live
and app subscription.
7
Settings & Preferences
To enter preferences Press and Hold SEN and BRT button down for 2 seconds. To exit Preferences,
simply wait a few seconds without pressing a button. The unit will display Completed to confirm
your selections.
Press SEN to go from Press VOL + or VOL – to change
one category to the next your setting within a category
Pilot Scan Bar* Scanning Bar with Full Word
Full Word Full Word: Auto*, Auto No X, or Highway
Display Color Blue*/Green/Red/Amber Set color to match your vehicle's dash display. Adding
brighter max screens and lower brightness setting during
when user is in minimum bright setting
Meter Mode Standard* Single band with bar graph of signal strength
Spec Single band with numeric frequency
Expert Multiple bands with bar graph of signal strengths
Tones Standard* Standard ESCORT alert tones
Mild Mild doorbell chime alert tones
AutoMute On* / Off Automatically reduces audio during alert
English* / Espanol
Language Language for voice and text
Voice On* / Off Voice announcements
Band Enables Default* Default Settings for North America
Modified Customize the bands you want to monitor
8
Press BRT to go from one Press VOL + or VOL – to change
band category to the next your setting within a category
X Band On* / Off Freq: 10.475 -10.575 GHz
K Band On* / Off Freq: 24.050 -24.250 GHz
Ka Band On* / Off Freq: 33.400-36.000 Ghz
NOTE: When Ka Band is off, you can select separate segments of the
band to turn on or off
KaN1 On* / Off Freq: 33.660 - 33.900 GHz
KaN2 On* / Off Freq: 34.200 - 34.400 GHz
KaN3 On* / Off Freq: 34.600 - 34.800 GHz
KaN4 On* / Off Freq: 35.400 – 35.600 GHz
Ka-POP On / Off*
Laser On* / Off Laser Detection
On* / Off
TSR Automatically rejects traffic flow sensors-monitoring false alarms
RDR On* / Off Radar Detection Rejection
*Default Setting
9
Contact Us
Notes for Settings & Preferences
For descriptions of features and functions
available when connected to ESCORT Live, visit
EscortRadar.com and download the PASSPORT
Accessories
X70 Owner's Manual.
To view serial number and software revision 800.433.3487
press SEN and VOL– while powering on
detector. EscortRadar.com
To restore PASSPORT X70 to its original factory
settings, press and hold BRT and VOL+ while
Designed in the USA
powering on detector. Restored message will
ESCORT Inc.
display, acknowledging the reset.
5440 West Chester Road
West Chester OH 45069
Software Updates
PASSPORT X70 is easily updated using our Sales / Service 800.433.3487
exclusive detector software tools found on our www.EscortRadar.com
web site. Firmware, or the operating software
©2015 ESCORT Inc. Escort®, Passport®, X70, Escort Live!™, AFR®,
for the detector, can be updated using these
TrueLock™, SmartShield®, SpecDisplay™, AutoSensitivity™, ExpertMeter™
and Cincinnati Microwave are trademarks of ESCORT Inc. Manufactured
tools.
in Canada. Features, specifications and prices subject to change without
notice.
FCC NOTE: Modifications not expressly approved by the manufacturer
In order to have access to these updates, please
could void the user's FCC granted authority to operate the equipment.
register your PASSPORT X70 at www.
FCC ID: QKLM4PP.
This device complies with part 15 of the FCC rules. Operation is subject
EscortRadar.com. Once registered, you will
to the following two conditions: (1) This device may not cause harmful
receive email notifications that updates are now interference, and (2) This device must accept any interference received
including interference that may cause undesired operation.
available for your firmware. To handle your
software you need to connect your PASSPORT
X70 to a computer first. You can connect
PASSPORT X70 to a computer via USB A / Mini B
cable (not included).
