Features - Loopcomm LP-8096 User Manual

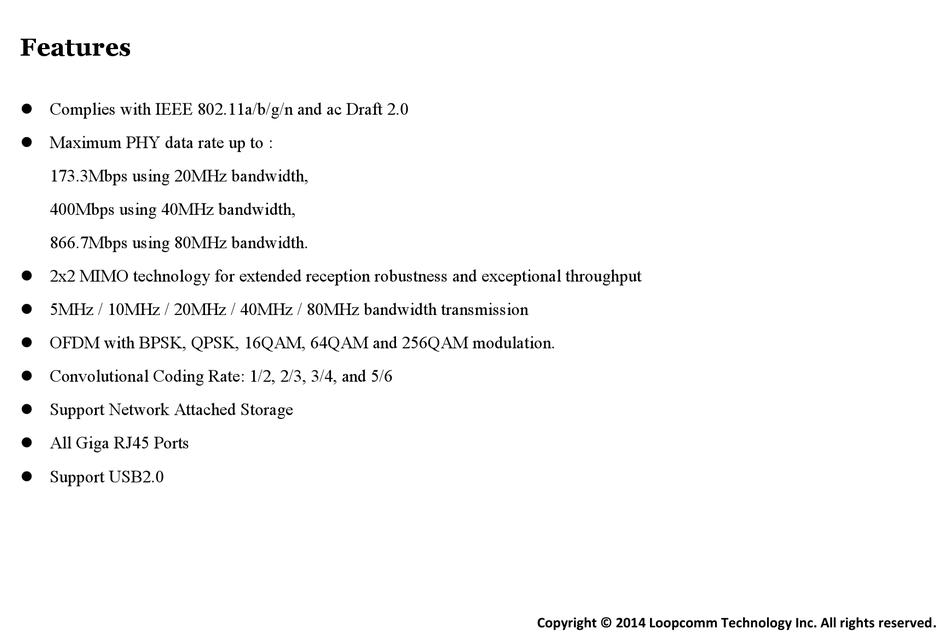

Features

 Complies with IEEE 802.11a/b/g/n and ac Draft 2.0
 Maximum PHY data rate up to : 
173.3Mbps using 20MHz bandwidth,
400Mbps using 40MHz bandwidth,
866.7Mbps using 80MHz bandwidth.
 2x2 MIMO technology for extended reception robustness and exceptional throughput
 5MHz / 10MHz / 20MHz / 40MHz / 80MHz bandwidth transmission
 OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation.
 Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6
 Support Network Attached Storage
 All Giga RJ45 Ports
 Support USB2.0
