Rear Panel - TP-Link NC230 User Manual

 System LED:
Status
Flashing Red
Solid Red
Flashing Green
Solid Green

2.3.2 Rear Panel

Power Jack
WPS LED
WPS/RESET
Button
 WPS LED:
Status
Flashing Green
Off
Solid Green
NC230
NC250
The camera starts booting up.
The camera has boot up, but is not connected to any network.
The camera is in firmware upgrade procedure.
The camera is connected to a network or is transferring data.

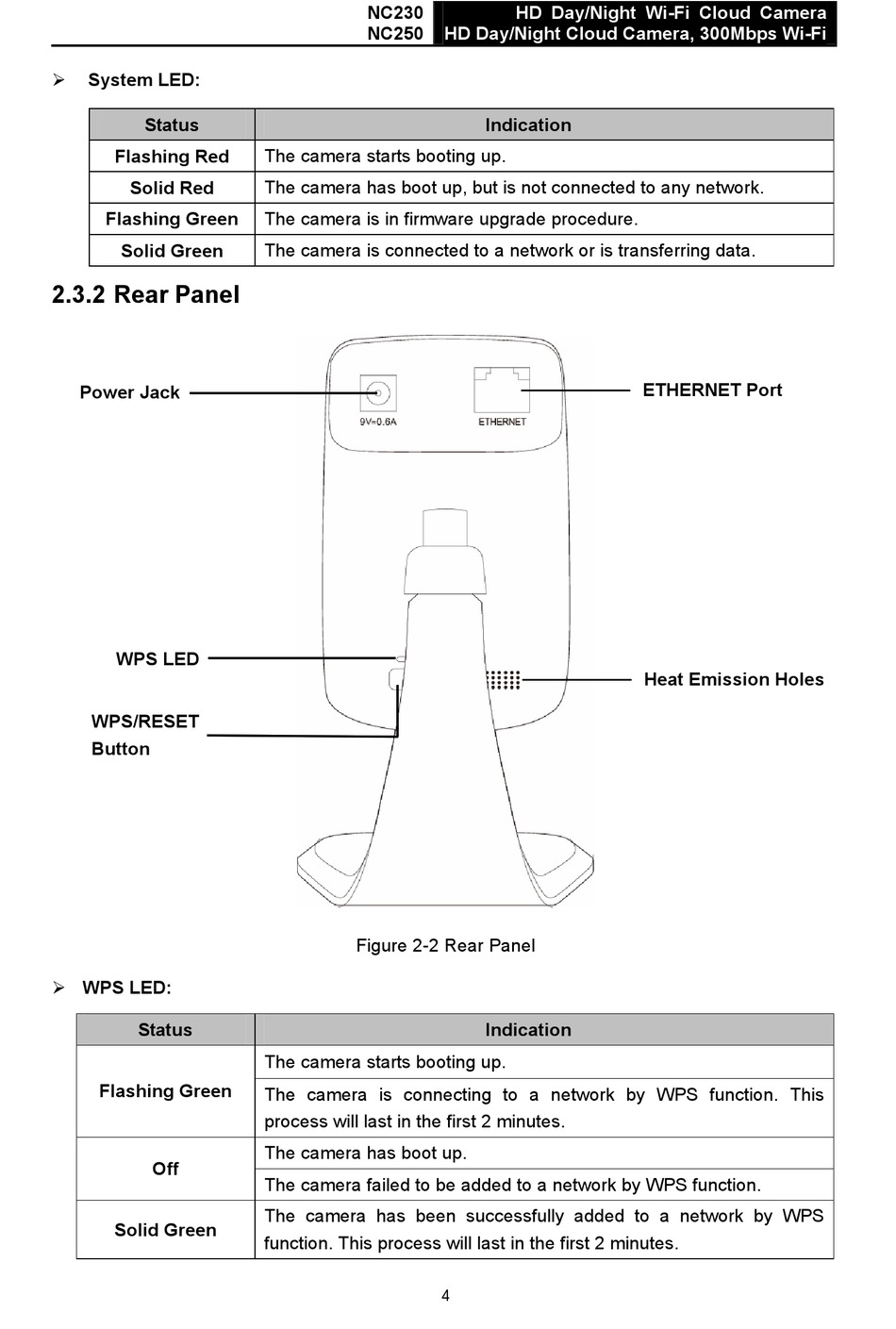

Figure 2-2 Rear Panel
The camera starts booting up.
The camera is connecting to a network by WPS function. This
process will last in the first 2 minutes.
The camera has boot up.
The camera failed to be added to a network by WPS function.
The camera has been successfully added to a network by WPS
function. This process will last in the first 2 minutes.
HD Day/Night Wi-Fi Cloud Camera
HD Day/Night Cloud Camera, 300Mbps Wi-Fi
Indication
Indication
