BANDPASS STEREO SUBWOOFER QUICKSTART GUIDE
BPS6 FOR USE WITH ARCHITECTURAL SERIES
Bandpass subwoofer can be installed in
joists spaced 16" on center or greater.
1
BPS6
12" (305mm)
Port tube

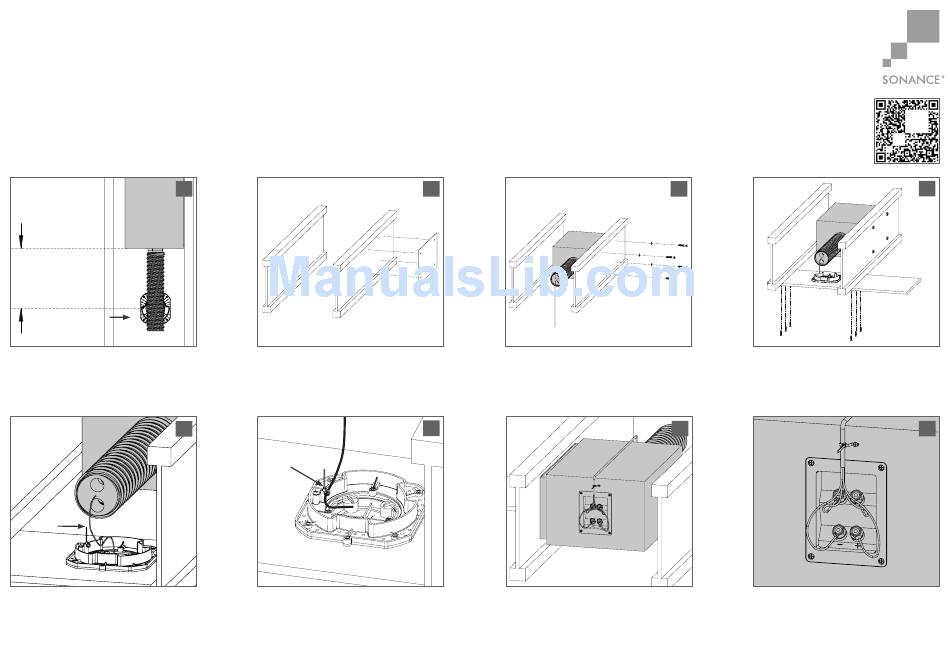

Determine the location for the mounting platform.
Ensure there is adequate room for the BPS6 subwoofer
at the location of the platform. The speaker opening
must be located within 12" (305mm) of the BPS6 to
allow the port tube to reach through the platform.
5
Tether
On the end of the BPS6 port tube there is a tether.
The tether will be used later to guide the BPS6 port
tube through the mounting platform opening.
Box Contents
(1) Quickstart guide

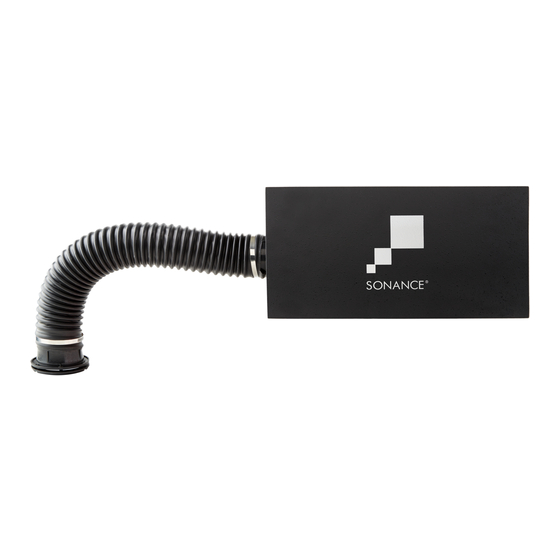

(1) Bandpass subwoofer w/ port tube
(1) Cardboard mounting template
2
Place the mounting template on the side of
the joist and drill four 1/2" (12.7mm) holes
through the joist at the locations shown on the
mounting template.
6
Tether into
zip tie
Position end of port tube as close as possible
to back of mounting platform. Loop tether into
the anchored zip tie and secure. This process
ensures that bandpass connector is easily
attached later and other tradespersons won't
infringe on port tube assembly area.
BANDPASS CONNECTORS
®
Mounting screws & washers:
(4) 5/16" x 2" lag screws (for thinner beams)
(4) 5/16" x 3" lag screws (for thicker beams)
(4) 5/16" washers
Hold the side of the BPS6 with the rubber
damping pad up against the side of the joist and
install the four lag screws and washers to secure
the BPS6 in place.
Secure the wires to the included zip tie near the
terminals to prevent accidental removal by
another tradesperson.
For wiring diagrams and detailed
eManual scan the QR code or visit
www.sonance.com/in-wall-in-ceiling/
architectural-series
3
Attach the mounting platform to the joists.
See mounting platform quickstart guide or visit
www.sonance.com/in-wall-in-ceiling/
architectural-series for detailed
installation manual.
7
Attach the four conductor wires from the amplifier to the
input terminals on the BPS6. Positive wires to red terminals
and negative wires to black terminals. Run the speakers
wires to amplifier location and run signal test with 9V
battery. NOTE: Port tube contains foam plug with tether,
make sure pressure levels don't expel the foam and
tether. Do not connect the voice coils in parallel.
