Sonance Architectural Series
BPS -1 IN-CEILING SUBWOOFER
I N S T A L L A T I O N M A N U A L
Introduction
Congratulations on your purchase of the Sonance
Architectural Series BPS -1 Bandpass Subwoofer
System. The BPS-1 system will add deep, powerful
bass impact to any audio system that includes
Sonance Architectural Series speakers. The BPS-1
cabinet remains completely hidden from view,
delivering its bass energy through a Sonance
Architectural Series Panel Bracket and Architectural
Finish Component that is a discreet complement to
the surrounding architectural space.
The complete BPS-1 Bandpass Subwoofer System is
comprised of a BPS-1 bandpass subwoofer cabinet, a
Bandpass Connector, a dedicated Sonamp
power amplifier, an Architectural Series Panel
Bracket and an Architectural Finish Component, all
of which are available separately.
Design and Features
• Delivers powerful, room-filling bass through a small grille that complements the room's architectural
design.
• Trimless and truly flush-mount installation — the plane of the subwoofer grille is perfectly aligned
with the plane of the ceiling.
• Available Bandpass Connectors allow the BPS-1 to be used with any size round or square
Architectural Series Panel Bracket (even 4") to match other Architectural Series speakers in the audio
system. Bandpass Connectors are heavily flared to minimize port noise during high-volume passages.
• The 8"
woofer driver features a felted paper cone with a rubber surround and Kapton
that
provide years of reliable high-power operation. This allows the BPS-1 to be installed in a
location that will have limited or no access.
• The very efficient 4th-order bandpass enclosure produces high output over the subwoofer 's entire
frequency range.
• The BPS-1 can be used with any separately available Architectural Series Finish Component:
metal (with or without trim) or cloth (with or without trim).
• Sonamp A150 power amplifier (required, available separately) delivers 150 watts of power and
provides flexible connections that integrate the BPS-1 system into any audio system.
prevents overdriving the BPS-1's woofer driver, even when using a single A150 to drive two BPS-1
subwoofer cabinets.
• Front-panel amplifier controls (volume, crossover frequency, phase) let you fine-tune the woofer 's
performance to match a variety of listening environments and personal preferences.
Box Contents
• (1) BPS-1 Subwoofer Cabinet (with vent tube attached)
5
• (8)
" x 2" Lag Screws (for attachment to I-joists)
/
16
5
• (8)
" x 3" Lag Screws (for attachment to standard joists)
/
16
• (2) Temporary Installation Brackets
• (1) Mounting Hole Drilling Template
®
®
A150
(shown with Bandpass Connector)
Page 1 of 8

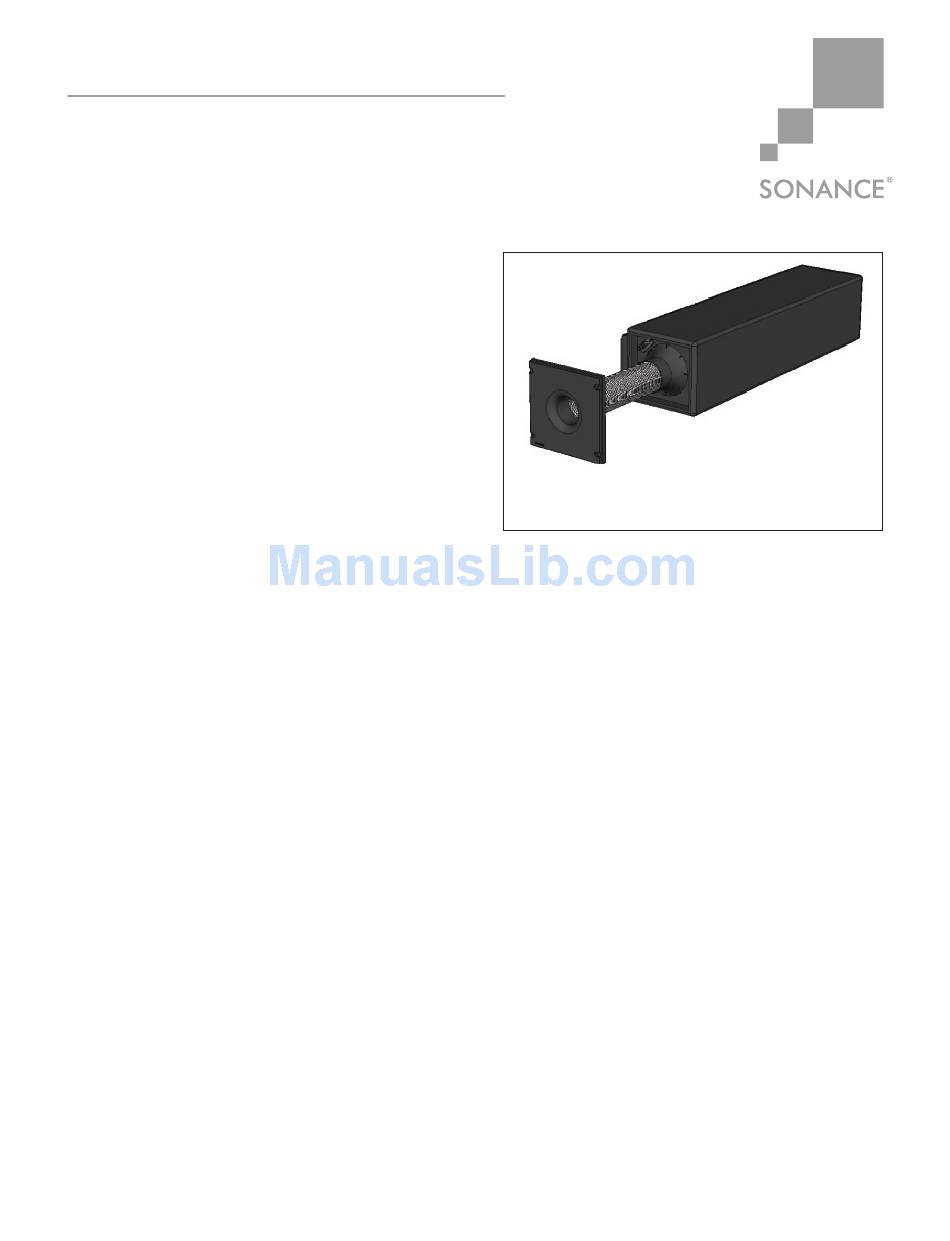

Figure 1: BPS-1 Subwoofer
®
voice coil former
A built-in limiter
